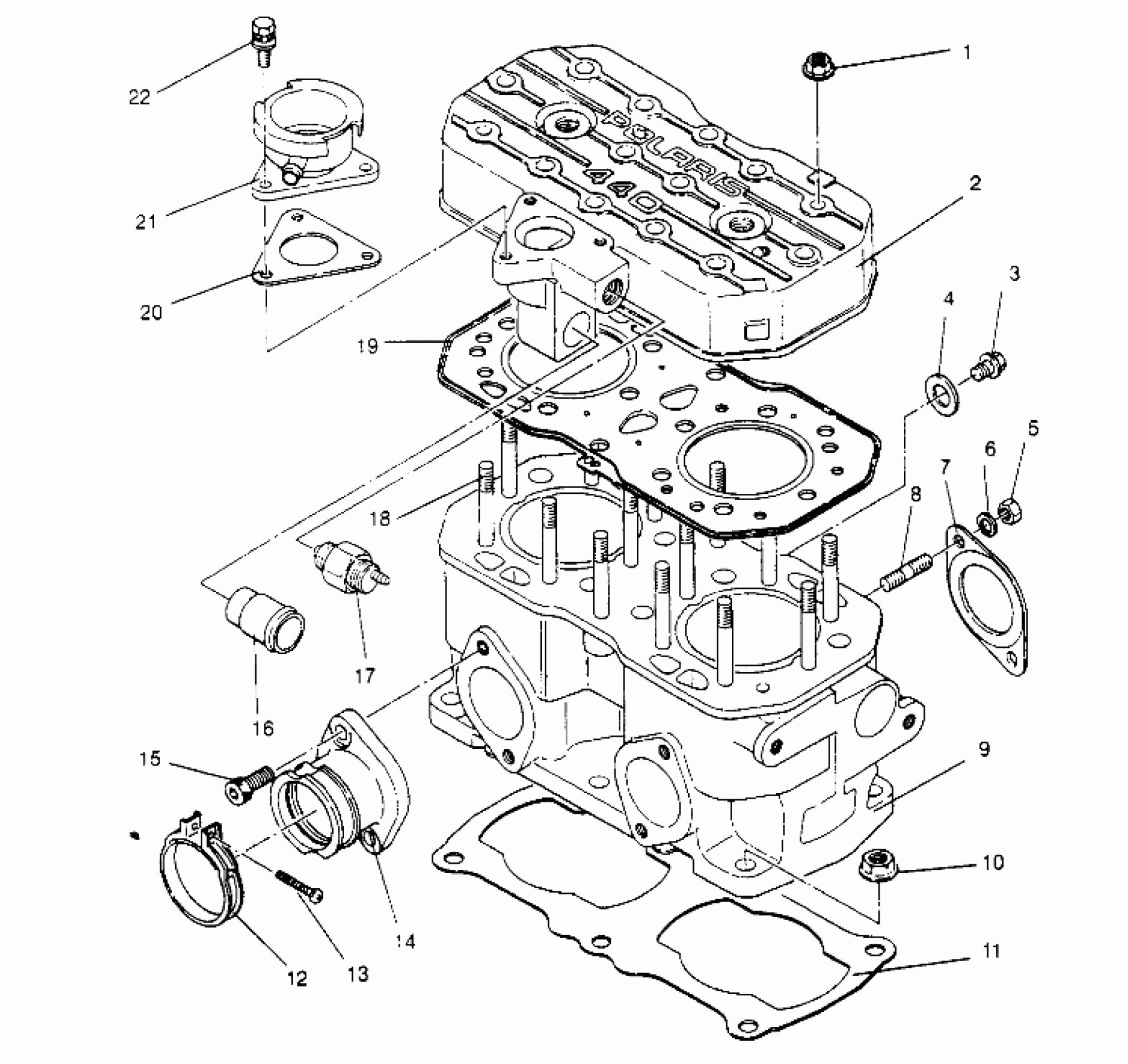

Polaris 440 L/C - 0952760 CYLINDER ASSEMBLY 440 0952760, 440 SKS 0952560, and EUROPEAN 440 SKS E9525 (4929032903C008) Diagram

NUT-FLANGE(10)

3082910

$2.39

HEAD,CYLINDER (Incl. 16)

3084610

$399.99

Plug

3084491

Unavailable

Gasket, Aluminum

3084492

$4.03

NUT(10)

3080285

Unavailable

WASHER LOCK ,(10)

3080530

$3.19

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

STUD Substituted by 3085326

3084270

Unavailable

CYLINDER (Incl. 8, 18)

3084322

$704.99

NUT-FLANGE(10)

3082911

$1.99

GASKET, CYL.,NA. Substituted by 3084768 (Cylinder) Non-Asbestos

3084029

Unavailable

BAND ASM. (Incl. 13)

3083166

$19.84

SCREW,(10)

3081497

$2.39

MOUNT, CARBURETOR Substituted by 3085044

3083306

Unavailable

Bolt, Allen

3081330

$3.99

PIPE, WATER Substituted by 3083452

3085016

Unavailable

SWITCH,THERMAL(93 DEG.C.)

3083055

Unavailable

STUD

3083360

Unavailable

GASKET,HEAD

3084611

Unavailable

GASKET, FILLER NECK

3083340

Unavailable

NECK, FILLER

3083398

Unavailable

BOLT&WASHER ASM.

3083361

Unavailable
