COOLING SYSTEM 440 0952760, 440 SKS 0952560, and EUROPEAN 440 SKS E952560 (4929032903B008)

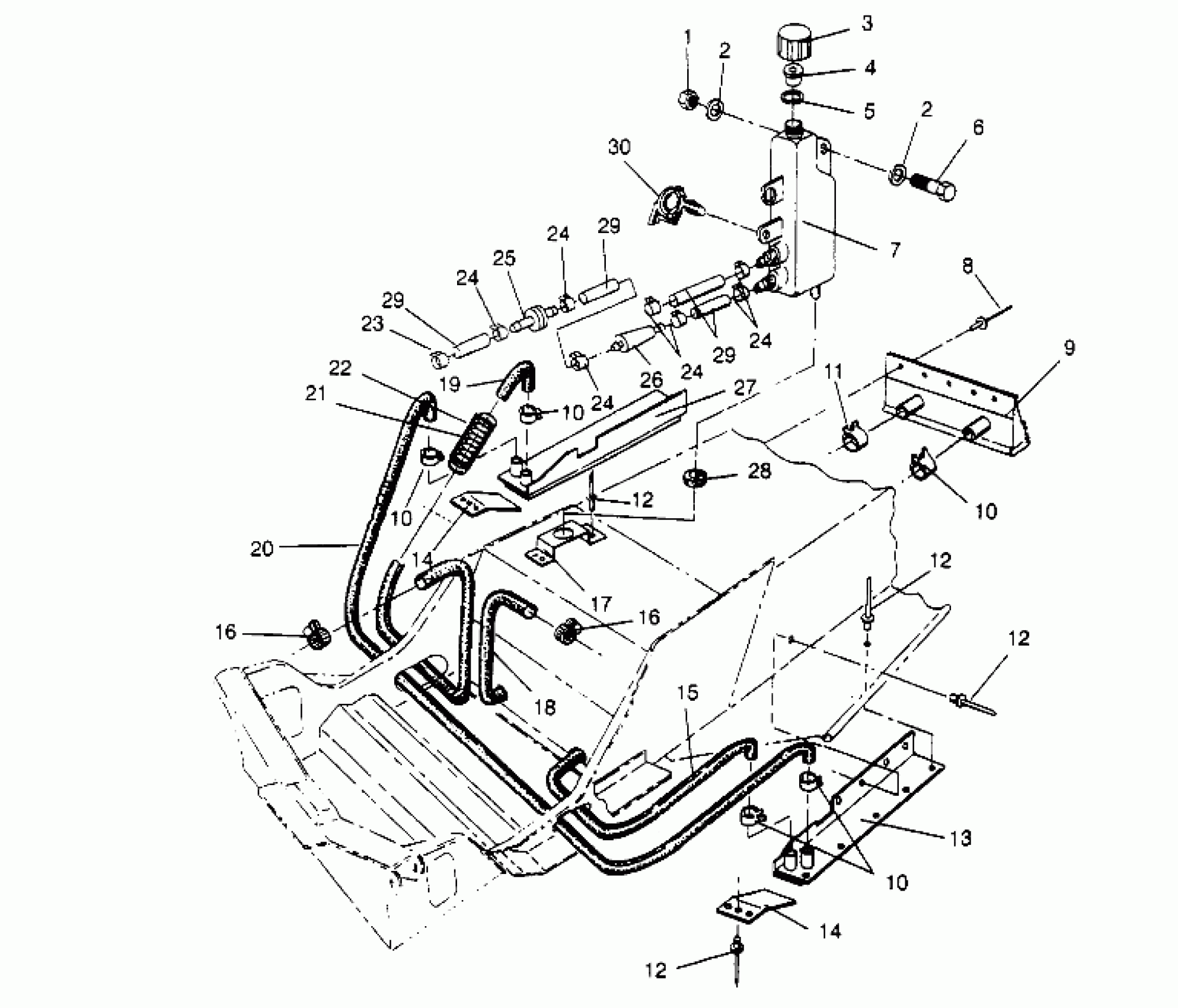

Polaris 440 L/C - 0952760 COOLING SYSTEM 440 0952760, 440 SKS 0952560, and EUROPEAN 440 SKS E952560 (4929032903B008) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER WELD,CTR.
2511225
$204.76
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
11
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Grey)
7080564
$10.32
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
EXT.,LH COOLING Substituted by 2511257
2511228
Unavailable
14
GUARD, COOL.EXT.
5222863
$32.99
14
GUARD, COOL.EXT.
5222863
$32.99
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
16
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842 (Black)
7080563
Unavailable
16
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842 (Black)
7080563
Unavailable
17
BRACKET
5223985
Unavailable
18
HOSE,PUMP/CTR.EXT.
5410743
Unavailable
19
HOSE,ENG/SIDE EXT.
5410738
Unavailable
20
HOSE,CROSSOVER
5410557
Unavailable
21
SPRING,HOSE RETAINER
7041079
$4.95
22
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
23
CLAMP-HOSE(10)
7080134
Unavailable
24
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
25
VALVE, CHECK
7052038
$10.51
26
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
27
EXT.,RH.COOLING. Substituted by 2511258
2511229
Unavailable
28
GROMMET RUBBER
5410021
Unavailable
29
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
29
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
29
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
30
CLIP, PLASTIC(10)
4020139
$4.79
