- Partiron
- OEM Parts
- Polaris
- SNOW
- SNO
- 1995
- 440 L/C - 0952760
CONTROLS 440 0952760, 440 SKS 0952560, and EUROPEAN 440 SKS E952560 (4929032903B006)

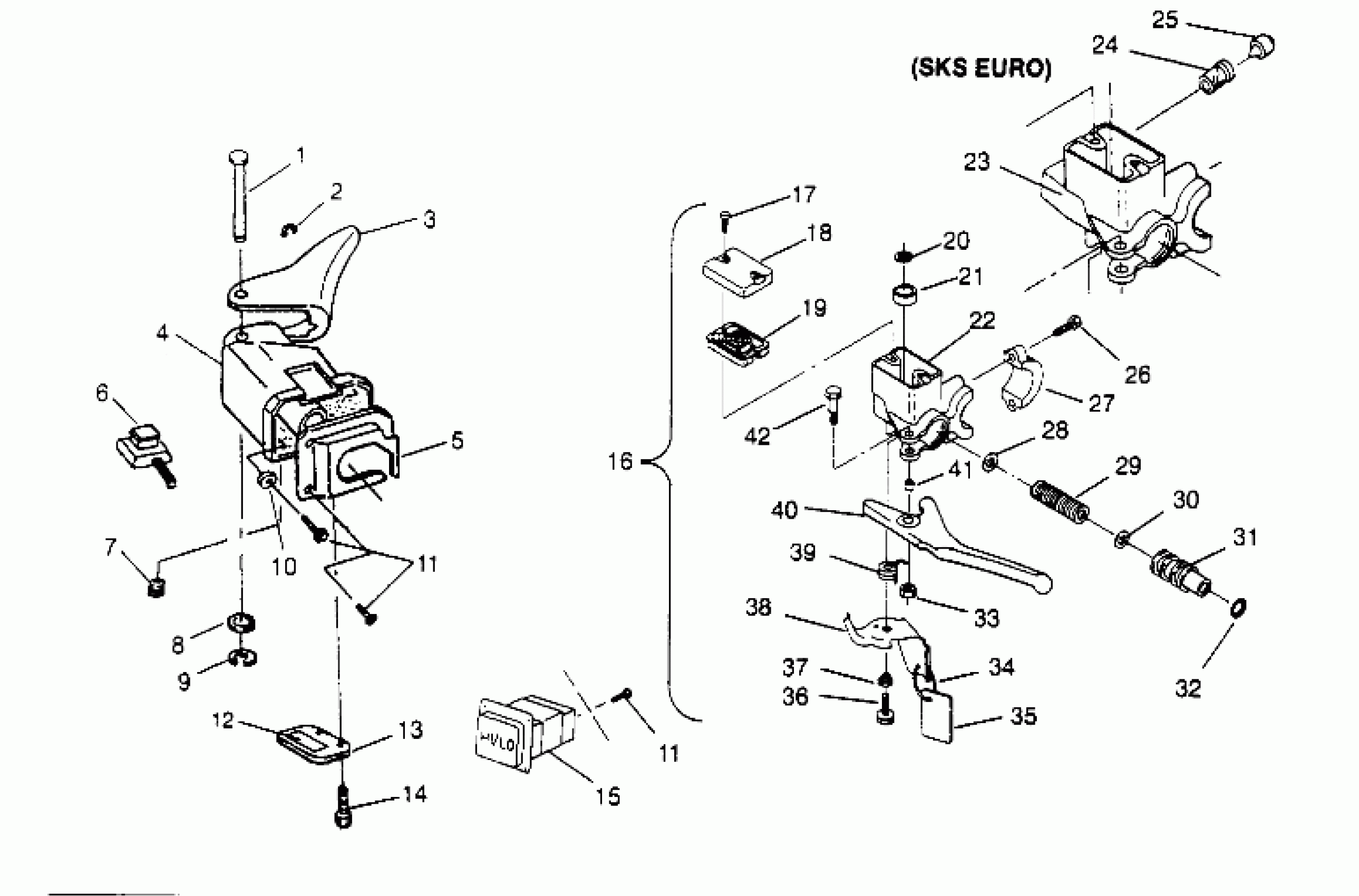

Polaris 440 L/C - 0952760 CONTROLS 440 0952760, 440 SKS 0952560, and EUROPEAN 440 SKS E952560 (4929032903B006) Diagram
#
1
PIN-RETAINING .186X1.780-AL
7661624
$12.79
2
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
3
LEVER-THROTTLE (SKS)
5430652
Unavailable
3
LEVER,THROTTLE,W/HEATER (440)
2010119
Unavailable
3
LEVER, THROTTLE (440)
5431318-067
Unavailable
3
LEVER ASM,HTR.STD 34MM (SKS)
2010142
Unavailable
4
BLOCK,THROTTLE/BRAKE (SKS)
5431592
$49.99
4
BLOCK,THROTTLE(EASY) Substituted by 5433343 (440)
5431311-067
Unavailable
5
BLOCK-ADAPTER (SKS)
5430604
$13.75
5
BLOCK,ADAPTER,BLK. (440)
5431313-067
Unavailable
6
SWITCH, KILL (440)
4110118
Unavailable
6
SWITCH,AUX.SHUT-OFF (SKS)
4110106
$94.99
7
SCREW(10)
7512465
$3.99
8
WASHER(10)
7555730
$3.99
9
RING-RETAINING EXTERNAL
7710401
$3.99
10
RIVET BURR(50)
7555727
$1.49
11
SCREW-SEMS(10)
7511848
$3.99
11
SCREW-SEMS(10)
7511848
$3.99
12
DESC NOT_AVAILABLE
5810993
Unavailable
13
PLATE,BLK,WIREHOLDER Substituted by 5432261
5240256-067
$24.27
14
SCREW(10)
7511858
$3.99
15
SWITCH, DIMMER
4110136
Unavailable
16
MASTER CYL.ASM,3/4" (Incl. 17-42)
2050070
Unavailable
17
SCREW,W/WASHER(10)
7512050
$3.99
18
COVER,MASTER CYL.
5630338
Unavailable
19
GASKET,MASTER CYL.
5410527
$8.99
20
WASHER, BAFFLE(10)
1930662
Unavailable
21
BAFFLE,MASTER CYL.
1930673
Unavailable
22
HOUSING,MASTERCYL.
5130955
$293.65
23
MASTER CYL.ASM,W/GLASS (Euro)
2050071
Unavailable
24
SEAL, SIGHT GLASS (EURO)
1930660
Unavailable
25
GLASS,SIGHT,MASTER CYL. (EURO)
1930710
Unavailable
26
BOLT,SOCKET HEAD(10)
7512290
$4.79
27
CLAMP, MASTER CYL.
5630342
Unavailable
28
WASHER(10)
7555708
$3.99
29
SPRING, MASTERCYL.
7041311
Unavailable
30
U PACKING SEAL
5410164
Unavailable
31
PISTON,MASTER CYL.
5020679
Unavailable
32
O RING
5410163
$1.60
33
NUT(10)
7542124
Unavailable
34
STRAP,PARK.BRAKE TAG
7080447
Unavailable
35
TAG,PARK.BRAKE
5431389
Unavailable
36
SCREW(10)
7511866
$4.79
37
BUSHING,PK.BRAKE LEVER
5020670
Unavailable
38
LEVER,PARK.BRAKE
5240809
Unavailable
39
SPRING,PK.BRAKE
7041229
$32.37
40
LEVER, BRAKE
5630409
Unavailable
41
BUSHING,BRAKE LEVER
5332931
Unavailable
42
BOLT,BRAKE LEVER(10)
7512287
Unavailable
