TUNNEL ASSEMBLY 440 0942760 and 440 SKS 0942560 (4925072507001A)

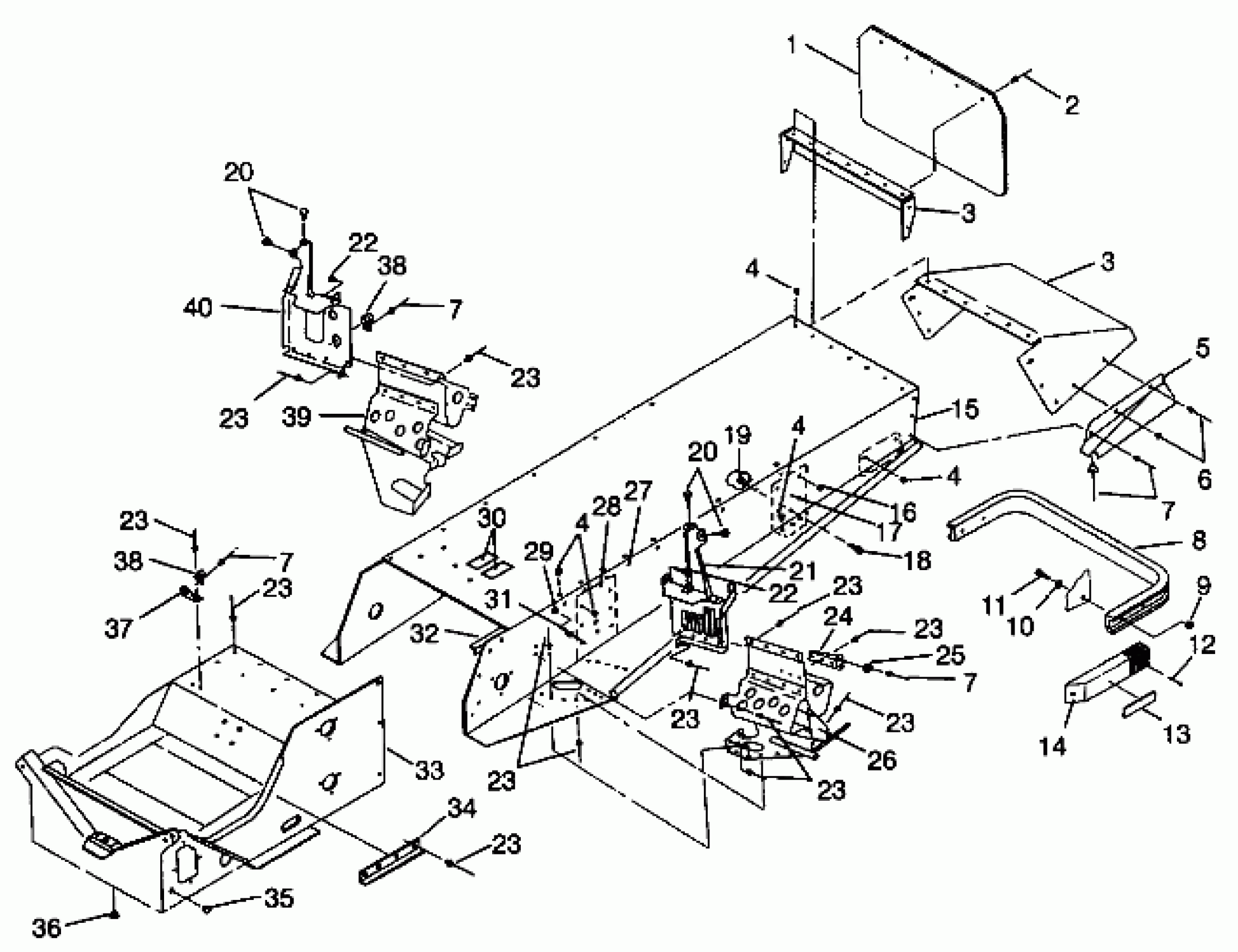

Polaris 440 L/C - 0942760 TUNNEL ASSEMBLY 440 0942760 and 440 SKS 0942560 (4925072507001A) Diagram
#
1
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
2
POP RIVET(50)
7621418
$1.49
3
PANEL,TUNNEL,BACK Substituted by 5220478-067 (440)
5220478
Unavailable
3
CLOSE-OFF ASM,REAR,BLK. (SKS)(Incl. Rivets)
1012232-067
Unavailable
3
PANEL,TUNNEL,BACK Substituted by 5220478-067 (440)
5220478
Unavailable
3
CLOSE-OFF ASM,REAR,BLK. (SKS)(Incl. Rivets)
1012232-067
Unavailable
4
RIVET Substituted by 7661829
7661828
Unavailable
4
RIVET Substituted by 7661829
7661828
Unavailable
4
RIVET Substituted by 7661829
7661828
Unavailable
4
RIVET Substituted by 7661829
7661828
Unavailable
5
SKIRT,LH,SNOW,BLK. Substituted by 5431627-070 (SKS Only)
5431627
$26.98
5
SKIRT,RH,SNOW,BLK. Substituted by 5431645-070 (SKS Only)
5431645
$31.11
6
RIVET(50) (SKS Only)
7621472
$1.49
7
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
7
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
7
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
7
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
8
BUMPER,REAR,BLK. (440)
5224334-067
Unavailable
8
BUMPER,R.SKS EFI (SKS)
5224349-067
Unavailable
9
NUT-LOCK(10)
7542122
$1.49
10
WASHER(10)
7558301
$1.49
11
BOLT(10)
7512240
$3.99
12
SCREW(10)
7511863
$1.99
13
REFLECTOR RED
2670070
$9.91
14
CAP, BUMPER, BLK.
5430930-070
Unavailable
15
TUNNEL ASM. (440)
1011956
Unavailable
15
TUNNEL ASM,(SKS) (SKS)
1011975
$405.94
16
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
17
BRKT,RH.REAR SUSP. (SKS)
1011906-067
Unavailable
17
BRKT,LH.REAR SUSP (SKS)
1011905-067
Unavailable
17
BRKT,RH,R.SUSP. (440)
1011858-067
Unavailable
17
BRKT,LH,R.SUSP (440)
1011857-067
Unavailable
18
BOLT(10) Substituted by 7515494 (SKS Only)
7515482
Unavailable
19
NUT(10) (SKS Only)
7542423
$3.99
20
BUMPER,HOOD
5410768
$2.95
20
BUMPER,HOOD
5410768
$2.95
21
MT,CONSOLE,LH
1011951-067
$35.51
22
SCREW(10)
7512057
$2.38
22
SCREW(10)
7512057
$2.38
23
RIVET-3/16-.090-.290
7661637
$1.49
23
RIVET-3/16-.090-.290
7661637
$1.49
23
RIVET-3/16-.090-.290
7661637
$1.49
23
RIVET-3/16-.090-.290
7661637
$1.49
23
RIVET-3/16-.090-.290
7661637
$1.49
23
RIVET-3/16-.090-.290
7661637
$1.49
23
RIVET-3/16-.090-.290
7661637
$1.49
23
RIVET-3/16-.090-.290
7661637
$1.49
23
RIVET-3/16-.090-.290
7661637
$1.49
23
RIVET-3/16-.090-.290
7661637
$1.49
23
RIVET-3/16-.090-.290
7661637
$1.49
24
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
25
STOP, BUMPER
5410826
Unavailable
26
FOOTREST ASM,LH
1011954
Unavailable
27
NUT,SERT(10)
7541938
Unavailable
28
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
29
SNAP-MALE(10)
7080227
Unavailable
30
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
31
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
32
BRACE,REINF.TUNNEL
5240242
Unavailable
33
WELD-BULKHEAD,BLK
1012041-067
Unavailable
34
GUARD,ADAPTER GUIDE
5222857
$12.94
35
PLUG, HOLE(10)
7080416
$5.65
36
PLUG-HOLE
7080398
$4.84
37
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
38
GUIDE, RECOIL
5431385
$10.51
38
GUIDE, RECOIL
5431385
$10.51
39
FOOTREST ASM,RH
1011955
$126.41
40
MT,CONSOLE,RH
1011952-067
$339.99
