SUSPENSION ASSEMBLY 440 0942760 (4925072507019A)

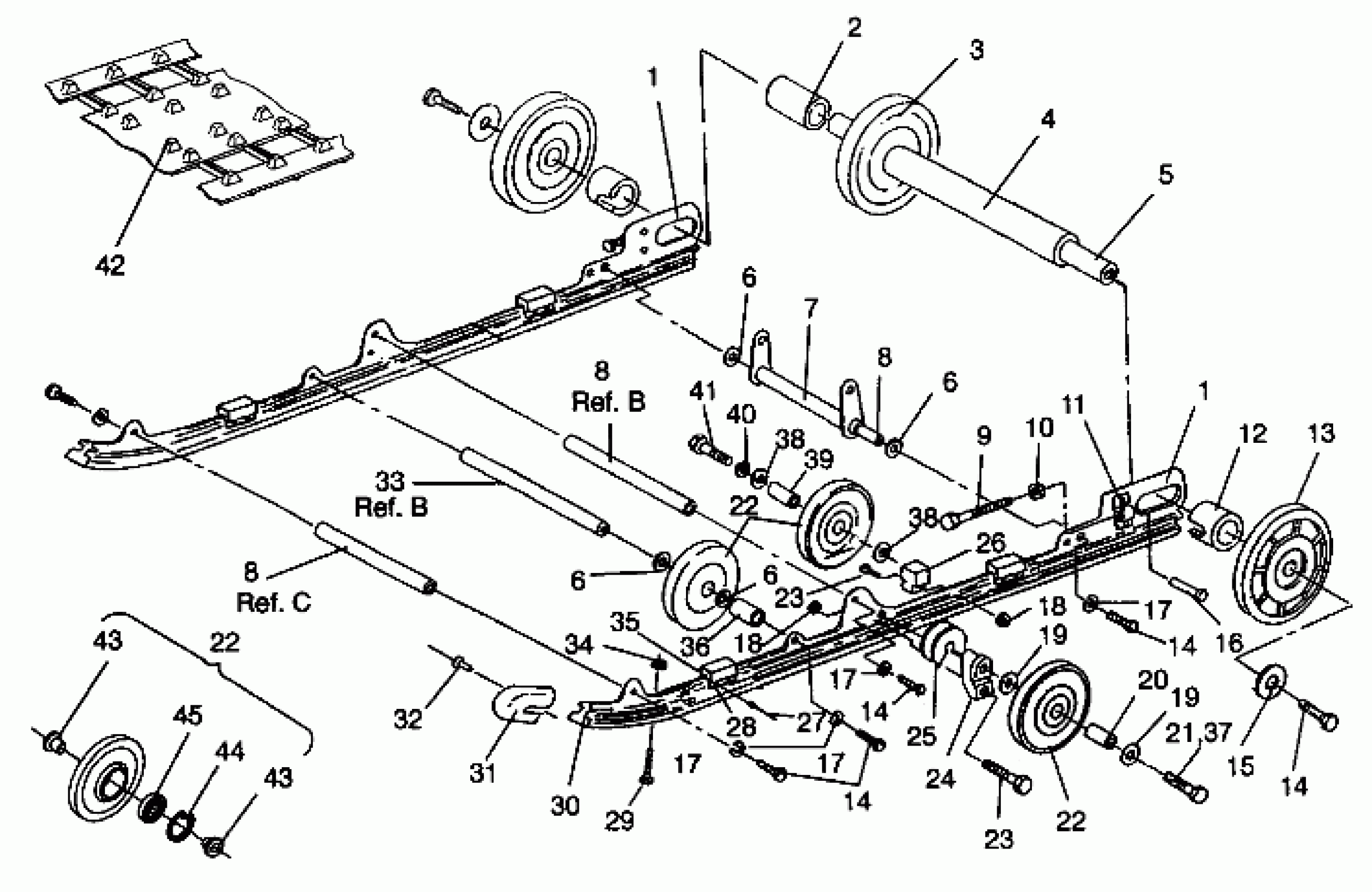

Polaris 440 L/C - 0942760 SUSPENSION ASSEMBLY 440 0942760 (4925072507019A) Diagram
#
1
RAIL ASM, RH (Incl. 11, 16, 27, 28, 31, 32, 35)
1540725
$292.99
1
RAIL ASM, LH (Incl. 11, 16, 27, 28, 31, 32, 35)
1540724
Unavailable
1
RAIL ASM, RH (Incl. 11, 16, 27, 28, 31, 32, 35)
1540725
$292.99
1
RAIL ASM, LH (Incl. 11, 16, 27, 28, 31, 32, 35)
1540724
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER,IDLER,R.INNER
5333086
Unavailable
5
SHAFT,IDLER
5020722
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
ARM,R.PIVOT,BLK.
1540721-067
Unavailable
8
SHAFT,PIVOT ARM
5020723
$29.99
8
SHAFT,PIVOT ARM
5020723
$29.99
8
SHAFT,PIVOT ARM
5020723
$29.99
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
WHEEL,IDLER,OUTER,RED
1594039
Unavailable
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
14
BOLT(10)
7515526
$1.19
15
WASHER(10) Substituted by 7556130
7571629
Unavailable
16
RIVET,(50)
7621501
$2.39
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
17
WASHER(10)
7552603
$1.49
18
NUT LOCK(10)
7542403
$3.99
18
NUT LOCK(10)
7542403
$3.99
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
20
SPACER, WHEEL
5333116
$7.99
21
BOLT(10)
7512538
$6.39
22
WHEEL, IDLER (Incl. 43-45)
1543018
$56.65
22
WHEEL, IDLER (Incl. 43-45)
1543018
$56.65
22
WHEEL, IDLER (Incl. 43-45)
1543018
$56.65
23
BOLT(10)
7512404
$3.99
23
BOLT(10)
7512404
$3.99
24
SPACER
5630399
$11.99
25
ROLLER, SPRING
5431366
$10.51
26
BRACKET,BOGIE WHEEL
5130570
$48.56
27
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
28
REINF., BUMPER
5222629
$13.75
29
SCREW(10)
7512227
$3.19
30
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
31
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
32
RIVET(50)
7621435
$1.49
33
SHAFT,PIVOT ARM
5020724
$29.99
34
NUT-LOCK(10)
7542122
$1.49
35
BUMPER, RAIL
5810554
$7.27
36
SPACER, OUTER
5332784
Unavailable
37
NUT, NYLOCK(10)
7542525
$4.79
38
WASHER(10)
7555804
$3.99
38
WASHER(10)
7555804
$3.99
39
SPACER
5332786
$7.99
40
LOCK WASHER(10)
7553201
$3.99
41
BOLT(10)
7512659
$7.99
42
TRACK, BLOCK
5410736
Unavailable
43
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
43
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
44
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
45
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
