SEAT and GAS TANK ASSEMBLY 440 0942760 and 440 SKS 0942560 (4925072507002A)

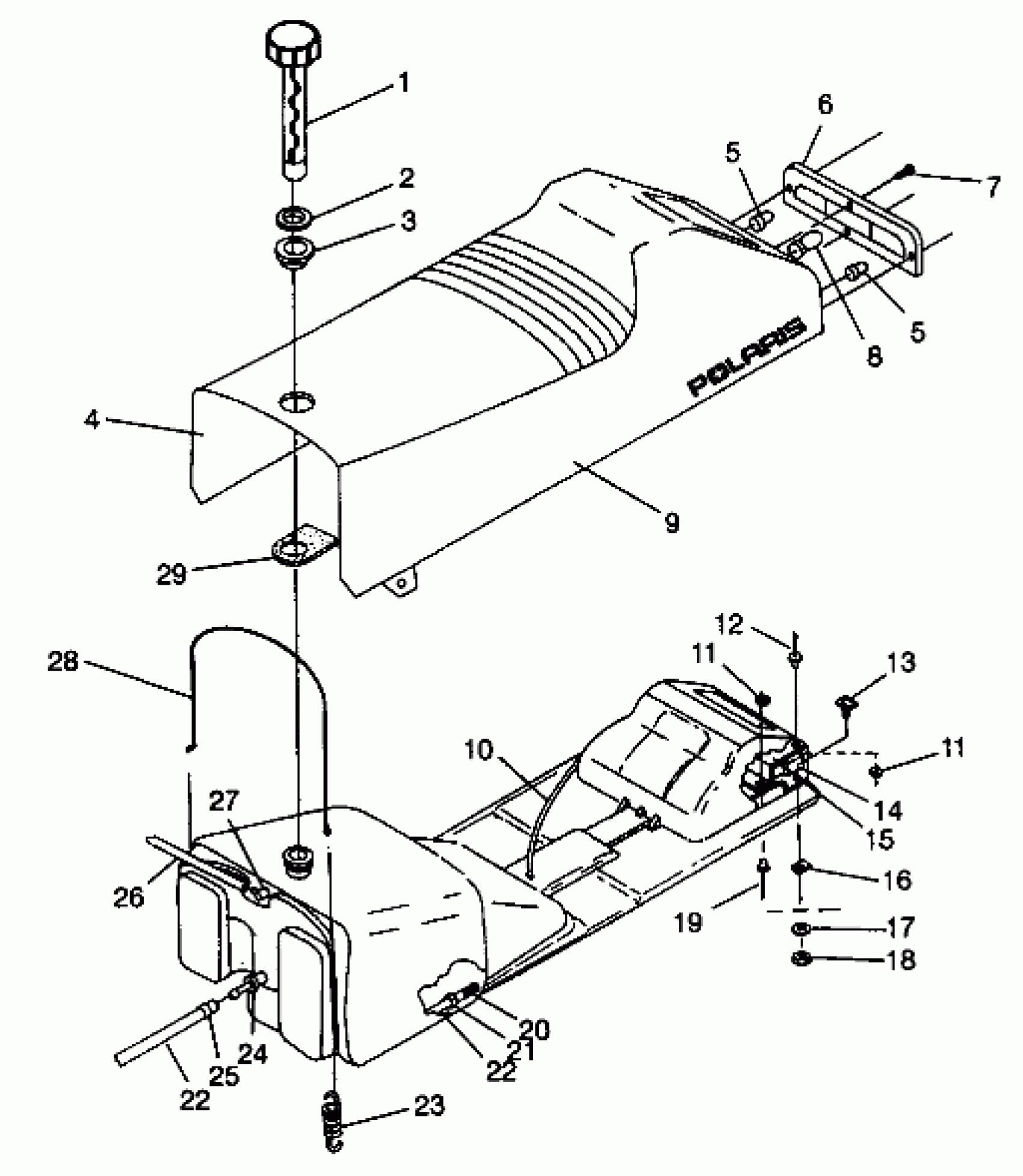

Polaris 440 L/C - 0942760 SEAT and GAS TANK ASSEMBLY 440 0942760 and 440 SKS 0942560 (4925072507002A) Diagram
#
Description
Price
1
CAP,FUEL W/GAUGE Substituted by 2511248
2511227
$44.51
2
GASKET, GAS CAP
5810513
$8.89
3
GROMMET,FUELTANK
5410815
Unavailable
4
SEAT ASM,440 L/C'94 (440)(Incl. 5-10,13,14,20-22,24,27,28)
2681662
$399.99
4
SEAT ASM,440 SKS'94 (SKS)(Incl. 5-10,13,14,20-22,24,27,28)
2681697
$399.99
5
BULB,TAILLIGHT(10)
4030024
$4.84
5
BULB,TAILLIGHT(10)
4030024
$4.84
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
Bulb, Brakelight
4030045
Unavailable
9
COVER,SEAT,STD. (440)
2681648
Unavailable
9
COVER,SEAT(440 SKS) (SKS)
2681699
Unavailable
10
HARNESS,TAILLIGHT
2460398
Unavailable
11
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
11
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
12
RIVET, BLIND(50)
7621467
$1.49
13
MOUNT, REAR SEAT
1011855
Unavailable
14
HOUSING,TAILLIGHT Substituted by 5433341
5431545
Unavailable
15
COVER,T/L PROTECTOR
5431436
$21.43
16
SPEED NUT(10)
7670021
$6.99
17
WASHER(10)
7558301
$1.49
18
NUT-LOCK(10)
7542122
$1.49
19
RIVET(50)
7621460
$1.49
20
FUELPICKUP,W/STRAINER
7052037
$12.94
21
RING, COMPRESSION(10)
7080402
$1.60
22
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
22
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
23
SPRING-EXHAUST(10)
7042029
$4.84
24
FITTING - OUTLET(10)
7052023
$24.99
25
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
26
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
27
FITTING,(10)
7052077
$6.39
28
CABLE,TANK RETENTION
7080473
Unavailable
29
FOAM, FILLER (Cover)
5810201
Unavailable
