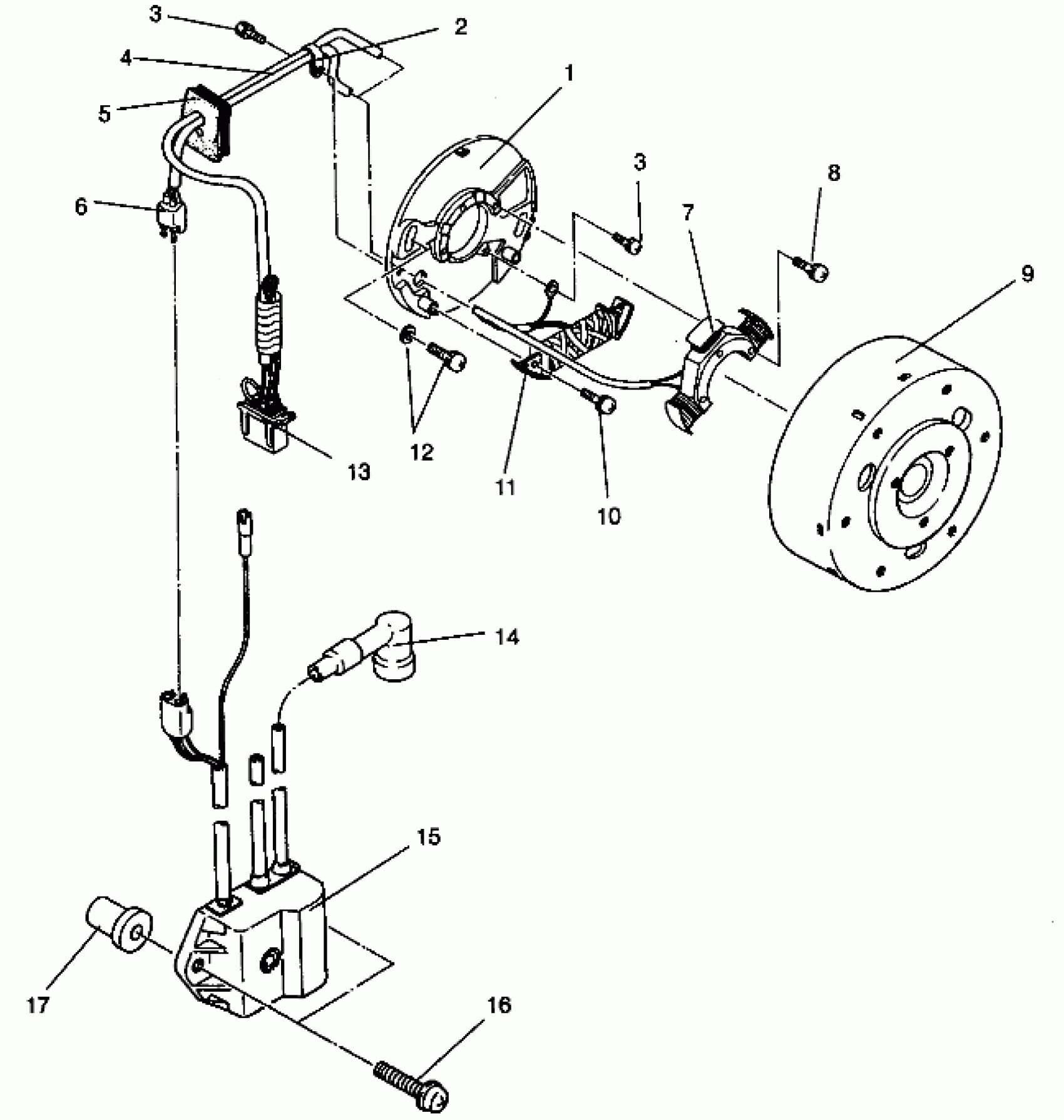

Polaris 440 L/C - 0942760 MAGNETO ASSEMBLY 440 0942760 and 440 SKS 0942560 (4925072507037A) Diagram

#

Description
Price

1

Plate, Coil

3083987

$364.99

1

PLATE ASM. (Incl. 1-11,13)

3084286

Unavailable

2

Clamp

3081296

Unavailable

3

SCREW&WASHER,(10)

3081260

$3.19

3

SCREW&WASHER,(10)

3081260

$3.19

4

HARNESS, WIRE (Incl. 5)

3084289

Unavailable

5

Grommet

3082969

Unavailable

6

COUPLER

3083909

$23.99

7

Stator 1

3083991

$339.99

8

SCREW(10)

3082365

$3.19

9

FLYWHEEL

3084287

Unavailable

10

SCREW & WASHER

3083423

$3.19

11

Coil, Exciter

3083984

$89.03

12

SCREW&WASHER,(10)

3082175

Unavailable

13

COUPLER,MALE

3081513

$19.99

14

CAP SPARK PLUG,(10)

4020129

$9.70

15

COIL, IGNITION

3084288

Unavailable

16

SCREW&WASHER,(10)

3083784

$2.39

17

NUT-RUBBER

3083240

Unavailable
