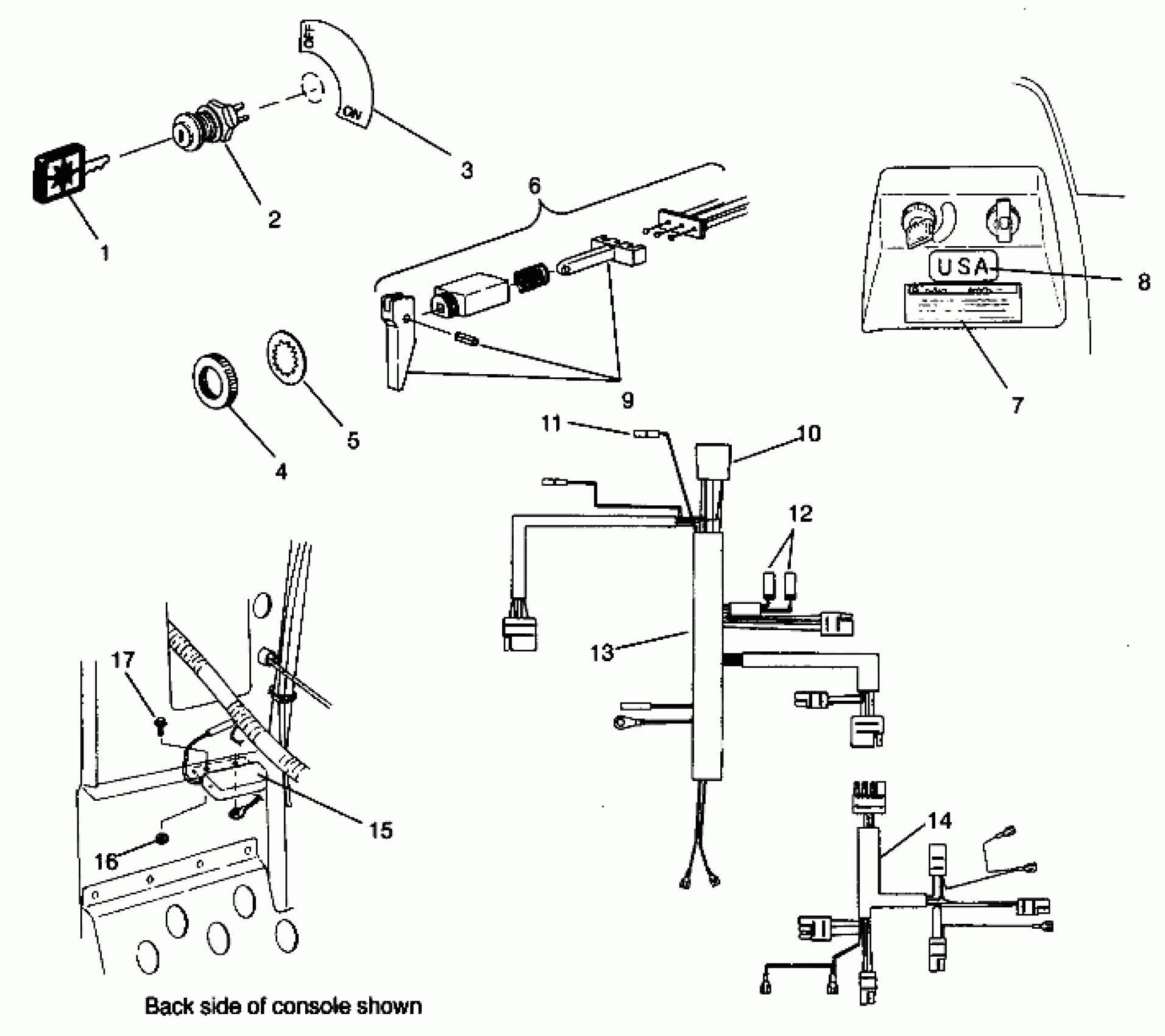

Polaris 440 L/C - 0942760 IGNITION and WIRE HARNESS 440 0942760 and 440 SKS 0942560 (4925072507008A) Diagram

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

5410611

Unavailable

KIT,IGN. SWITCH

2200357

Unavailable

DECAL,IGNITION(10)

7074202

Unavailable

Nut

7080229

$19.99

WASHER-LOCK(10)

7571610

$3.99

Cable, Choke Control (Incl. 9)

7080290

$105.22

DECAL'NO PASS'GR'WARN.

7073406

Unavailable

LABEL, 'U.S.A.'

7073024

Unavailable

KIT-CHOKE CONTROL

2200188

$24.27

Housing w/Receptacle

4020057

$3.51

HOUSING

4020133

Unavailable

Housing

4020153

$1.49

HARNESS,MAIN WIRE

2460394

Unavailable

HARNESS,HANDLEBAR

2460472

$23.02

REGULATOR, VOLTAGE

4060092

Unavailable

SCREW(10)

7512052

Unavailable

NUT(10) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labelled on underside of switch body behind console. Key dot code found on

7541925

$1.49
