FRONT SUSPENSION and SKI 440 0942760 and 440 SKS 0942560 (4925072507009A)

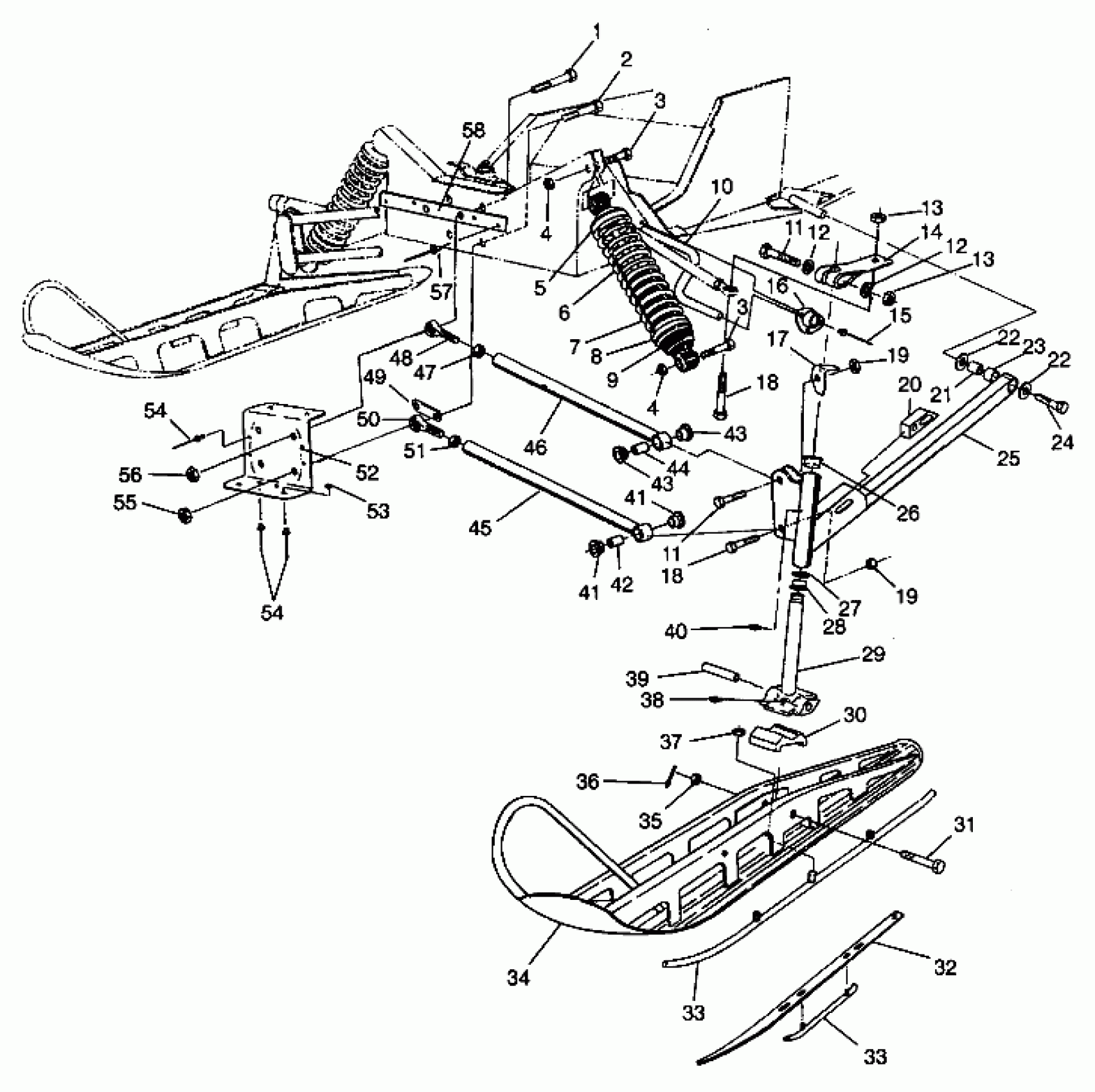

Polaris 440 L/C - 0942760 FRONT SUSPENSION and SKI 440 0942760 and 440 SKS 0942560 (4925072507009A) Diagram
#
1
BOLT(10)
7512582
$8.79
2
BOLT(10)
7512678
$19.99
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
3
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
4
NUT, NYLOC(10)
7542453
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COMP.,BLK.
7041334-067
Unavailable
7
SLEEVE,SPRING PROTECTOR
5431032
$31.99
8
CAM,ADJUSTING SPRING
5630334
$32.37
9
SHOCK,GAS/CAM,IFS (440)
7041288
Unavailable
9
SHOCK,FR.SUSP. (SKS)
7041282
Unavailable
10
BAR,SWAY,BLACK (SKS)
5224237-067
Unavailable
10
BAR,SWAY,9/16,BLK. (440)
5224476-067
Unavailable
11
BOLT(10) Substituted by 7517583
7515491
Unavailable
11
BOLT(10) Substituted by 7517583
7515491
Unavailable
12
WASHER(10) Substituted by 7555832
7555851
Unavailable
12
WASHER(10) Substituted by 7555832
7555851
Unavailable
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
14
ARM,STEERING,BLK. Substituted by 1012423-067
5222873-067
Unavailable
15
RIVET(50)
7621433
$1.49
16
BUSHING-SWAYBAR
5410383
Unavailable
17
STOP,STRG,RH,BLK.
5222875-067
Unavailable
17
STOP,STRG,LH,BLK.
5222874-067
Unavailable
18
BOLT(10) Substituted by 7515540
7515492
$4.62
18
BOLT(10) Substituted by 7515540
7515492
$4.62
19
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
19
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
20
SLIDE-SWAYBAR
5410384
Unavailable
21
TUBE,TRAILING ARM
5010187
Unavailable
22
WASHER(10)
7555721
$1.49
22
WASHER(10)
7555721
$1.49
23
PIVOT-TRAILING ARM
5410382
Unavailable
24
BOLT(10)
7512557
$7.60
25
ARM,TRLG,LH (Incl. 21,23)
1822162
Unavailable
25
ARM,TRLG,RH (Incl. 21,23)
1822163
Unavailable
26
BUSHING-FLANGE
3573909
$2.39
27
WASHER SPECIAL(10)
7556509
$1.59
28
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
29
SPINDLE, BLK.
6230073-067
Unavailable
30
STOP, RUBBER
5521276
Unavailable
31
BOLT(10)
7515462
$8.79
32
PLATE, SKAG (440 only)
1011829-067
$54.99
33
SKAG,PR.,CARBIDE (SKS)
2870693
$69.99
33
SKAG, BLK. (440)
1820318-067
$49.99
33
SKAG,PR.,CARBIDE (SKS)
2870693
$69.99
33
SKAG, BLK. (440)
1820318-067
$49.99
34
SKI WELD, BLK
1820332-067
Unavailable
35
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
36
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
37
NUT-5/16-18 NYLOK-Y
7542324
$1.49
38
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
39
BUSHING,PIVOT,(10)
5010158
$19.99
40
ZERK,FITTING,THREADED(10)
7080433
$1.49
41
BUSHING,OUTER RAD.ROD PIVOT
5431663
$1.59
41
BUSHING,OUTER RAD.ROD PIVOT
5431663
$1.59
42
BUSHING,RAD.ROD PIVOT
5010298
$5.03
43
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
43
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
44
BUSHING,RAD.ROD PIVOT
5010195
$5.03
45
ROD,RADIUS,LOWER (440)
1822142-067
$38.10
45
ROD,LOWER RADIUS (SKS)
1822146-067
$43.29
46
ROD,RADIUS,UPPER (440)
1822140-067
Unavailable
46
ROD,UPPER RADIUS (SKS)
1822144-067
$33.30
47
NUT JAM(10)
7542520
$2.39
48
ROD END,RH,WIDE SHLDER.
7060158
$36.31
49
STRAP,SPACER,BOTT.
5211427
Unavailable
50
ROD END,RH,1/2-20
7060159
Unavailable
51
NUT-JAM(10)
7542711
$2.39
52
BRKT,PANSUPPORT,BLK.
5222866-067
Unavailable
53
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
54
RIVET, BLIND(50)
7621467
$1.49
54
RIVET, BLIND(50)
7621467
$1.49
55
NUT FLEX,(10)
7542703
Unavailable
56
NUT, LOCK,(10)
7542503
$10.39
57
RIVET-3/16-.090-.290
7661637
$1.49
58
BRACE,BULKHEAD
5240349-067
$6.63
