CARBURETOR ASSEMBLY 440 0942760 and 440 SKS 0942560 (4925072507034A)

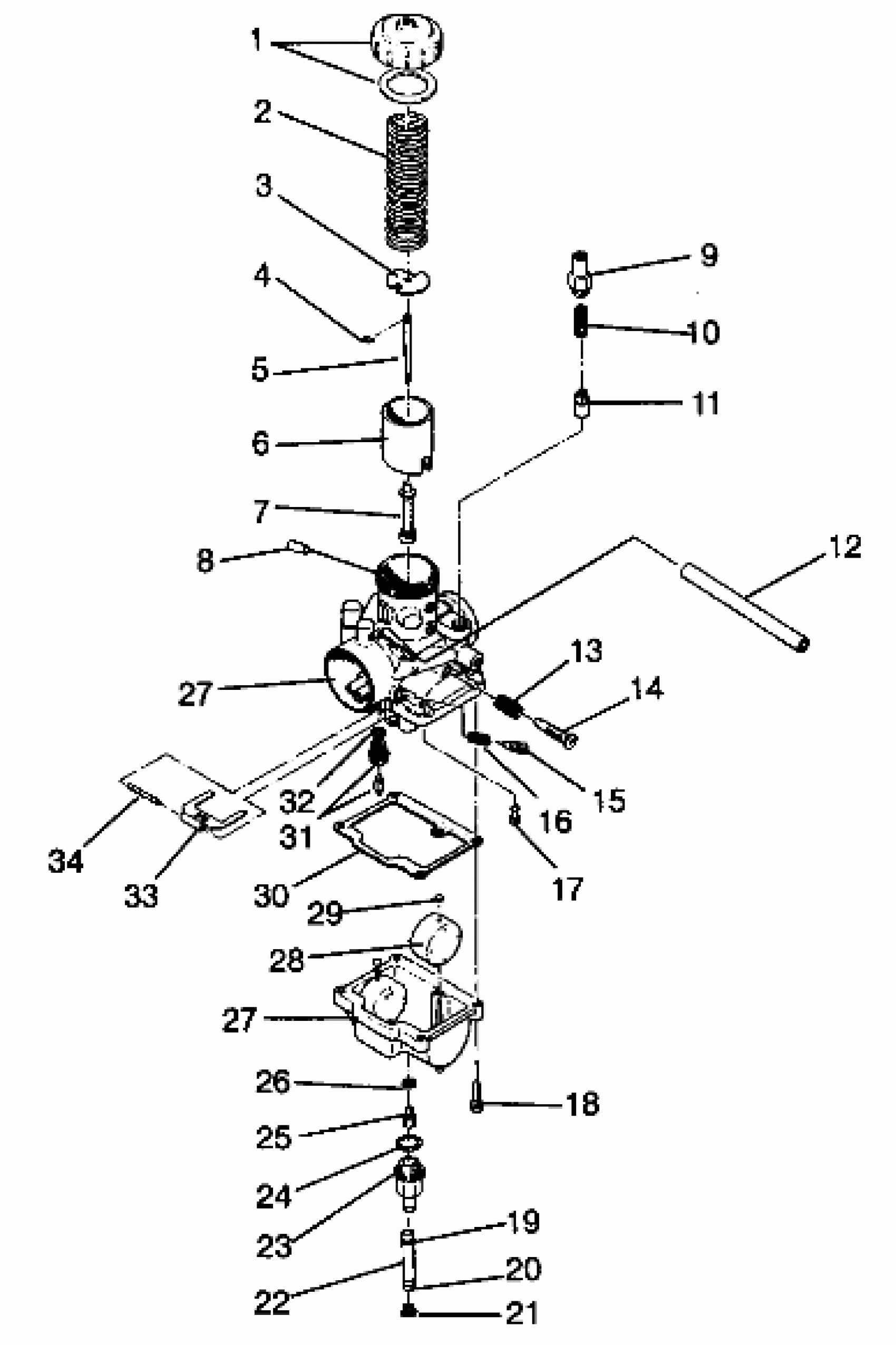

Polaris 440 L/C - 0942760 CARBURETOR ASSEMBLY 440 0942760 and 440 SKS 0942560 (4925072507034A) Diagram
#
Description
Price
1
TOP ASM (Incl. Gasket)
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE Substituted by 3130329 (6DH7-2)
3130158
Unavailable
6
VALVE, THROTTLE (2.5)
3130466
Unavailable
7
NEEDLE JET,(Q-2) (P-4)
3130376
Unavailable
8
CAP
3130479
$14.56
9
HOLDER,GUIDE
3130199
$28.32
10
SPRING,PLUNGER
3130006
$8.89
11
PLUNGER ASM, STARTER
3130328
$32.37
12
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
13
SPRING,THROTTLE ADJ.
3130010
$8.89
14
SCREW,THROTTLE STOP
3130009
$19.99
15
SCREW,AIR
3130011
$19.99
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#35(10) (#35)
3130066
$8.89
18
SCREW & WASHER(10)
3130025
$3.19
19
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
20
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
21
PLUG, TRAP Substituted by 5431893
5431001
Unavailable
22
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
23
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
24
O RING
3130239
Unavailable
25
JET,MAIN,HX.HD#230(10) (#230)
3130126
$7.27
26
WASHER (10)
3130014
$1.59
27
CARBURETOR Substituted by 3130630 (Incl. 1-11,13-18,23-34)
3130461
Unavailable
27
CARBURETOR Substituted by 3130630 (Incl. 1-11,13-18,23-34)
3130461
Unavailable
28
FLOAT ASM.
3130430
$43.56
29
CAP,(10)
3130237
$4.03
30
PACKING,FLOAT CHAMBER
3130020
$16.17
31
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
32
PACKING(10)
3130017
$4.03
33
ARM,FLOAT
3130018
$24.27
34
PIN, FLOAT Substituted by 3130361
3130235
$8.89
