STEERING - HANDLEBAR ASSEMBLY 440 / 0930760 and 440 SKS / 0930560 (4922932293014A)

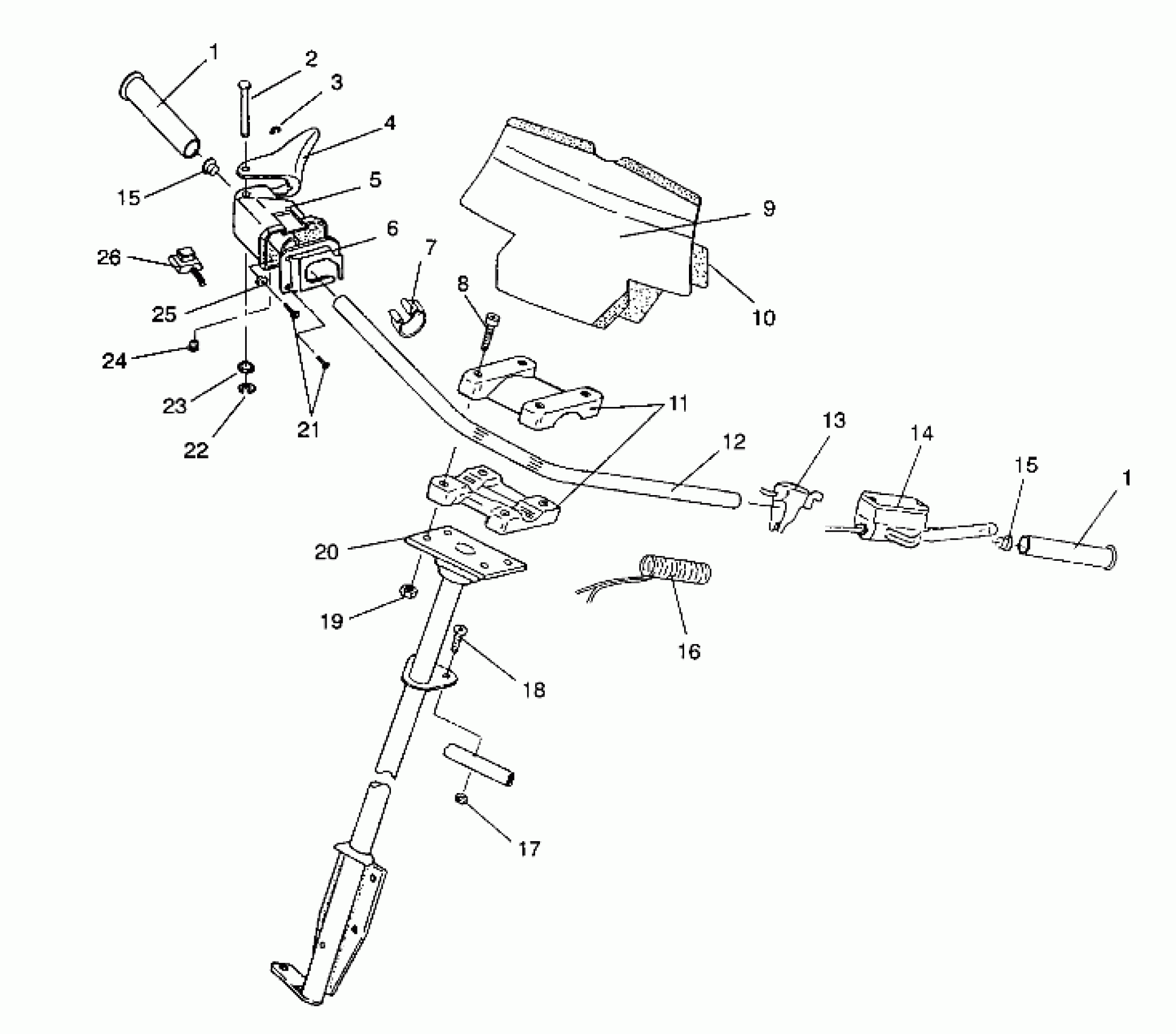

Polaris 440 L/C - 0930760 STEERING - HANDLEBAR ASSEMBLY 440 / 0930760 and 440 SKS / 0930560 (4922932293014A) Diagram
#
Description
Price
1
GRIP,H'BAR,BLACK Substituted by 5432634
5410272-067
$24.27
1
GRIP,H'BAR,BLACK Substituted by 5432634
5410272-067
$24.27
2
PIN-RETAINING .186X1.780-AL
7661624
$12.79
3
RET.RING-INDUSTRIAL(2000-25)-Z
7710503
$3.99
4
LEVER-THROTTLE (SKS)
5430652
Unavailable
4
LEVER,THROTTLE,W/HEATER (440)
2010119
Unavailable
4
LEVER, THROTTLE (440)
5431318-067
Unavailable
4
LEVER ASM,HTR.STD 34MM (SKS)
2010142
Unavailable
5
BLOCK,THROTTLE(EASY) Substituted by 5433343 (440)
5431311-067
Unavailable
5
BLOCK,THROTTLE/BRAKE Substituted by 5431592 (SKS)
5431265
$49.99
6
BLOCK,ADAPTER,BLK.
5431313-067
Unavailable
7
CLIP(10)
7080278
$2.63
8
BOLT(10)
7512254
Unavailable
9
COVER,H'BAR,W/DECAL
2690054
$37.54
9
COVER,H'BAR,W/DECAL
2690060
$34.92
10
PAD,HANDLEBAR
5810448
Unavailable
11
BLOCK,HANDLEBAR
5630187-067
$44.99
12
HANDLEBAR
5224413-067
Unavailable
13
Switch, Dimmer
4110107
$60.70
14
Asm. Master Cylinder (See pg. 9)
-------
Unavailable
15
CAPLUG(10)
7080467
Unavailable
15
CAPLUG(10)
7080467
Unavailable
16
HEATER GRIP ASM.
2460313
Unavailable
17
NUT(10)
7542124
Unavailable
18
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
19
NUT-LOCK(10)
7542122
$1.49
20
POST,STEERING
1823143-067
Unavailable
21
SCREW-SEMS(10)
7511848
$3.99
22
RING-RETAINING EXTERNAL
7710401
$3.99
23
WASHER(10)
7555730
$3.99
24
SCREW(10)
7512465
$3.99
25
WASHER(10)
7555709
Unavailable
26
SWITCH, KILL (440)
4110118
Unavailable
26
SWITCH,AUX.SHUT-OFF (SKS)
4110106
$94.99
