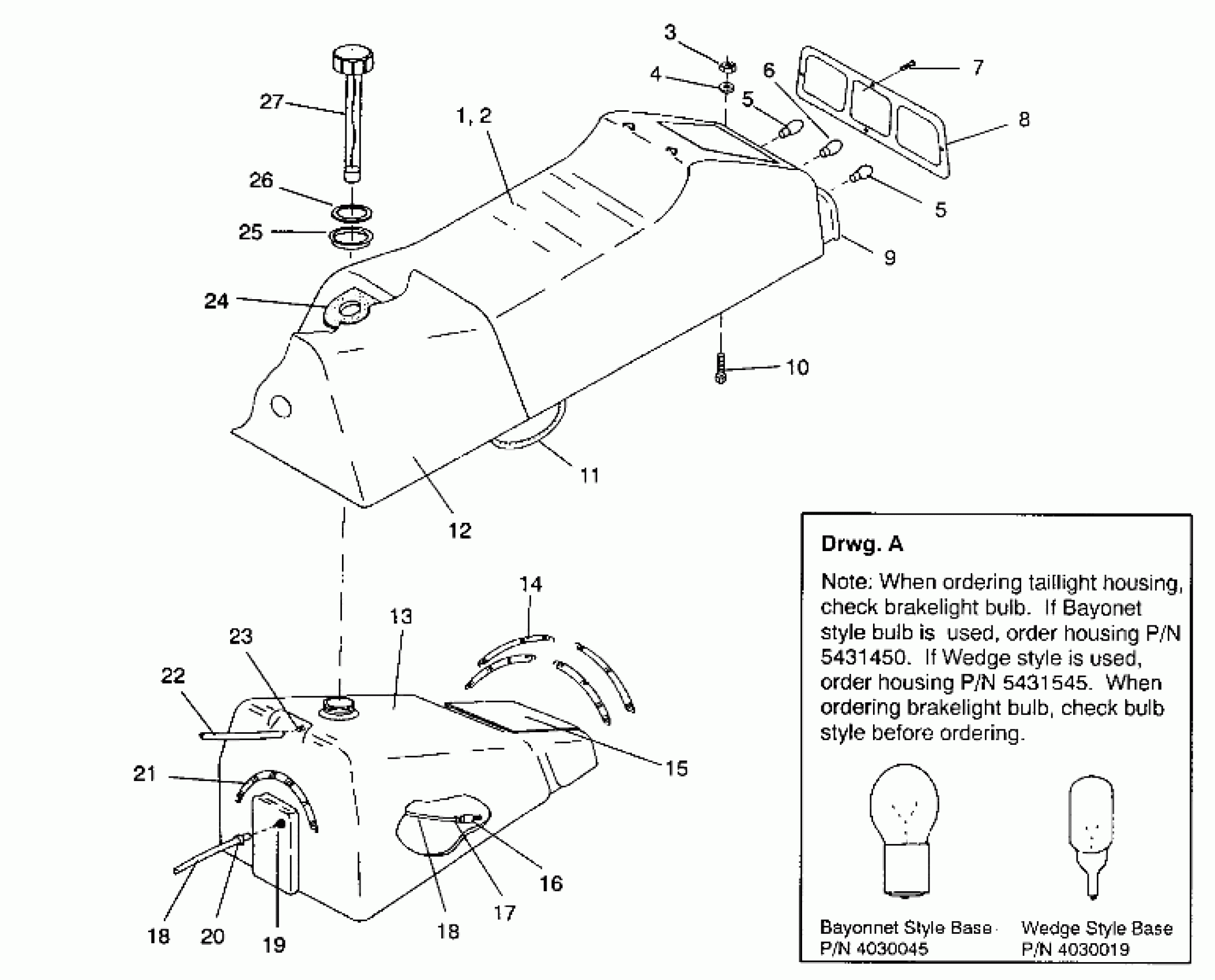

Polaris 440 L/C - 0930760 SEAT and GAS TANK ASSEMBLY 440 / 0930760 and 440 SKS / 0930560 (4922932293002A) Diagram

#

Description
Price

1

SEAT ASM,(93-440SKS) (Incl. 2, 5-9,14&15)

2681631

$429.99

1

SEAT ASM,(93-440 INDY) Substituted by 2200751 (Incl. 2, 5-9,14&15)

2681590

Unavailable

2

COVER,SEAT, (440) (440)

2681591

Unavailable

2

COVER,SEAT ASM(93-440SKS) (SKS)

2681632

$179.99

3

NUT-LOCK(10)

7542122

$1.49

4

WASHER(10)

7558221

$2.39

5

BULB,TAILLIGHT(10)

4030024

$4.84

5

BULB,TAILLIGHT(10)

4030024

$4.84

6

Bulb, Brakelight

4030045

Unavailable

7

SCREW(10)

7511840

Unavailable

8

LENS,TAILLIGHT

5430423

Unavailable

9

HOUSING,TAILLIGHT Substituted by 5433341 (See Drwg. A)

5431545

Unavailable

9

HOUSING, TAILLIGHT (See Drwg. A)

5431450

$19.83

10

BOLT(10)

7512103

$3.19

11

HARNESS,TAILLIGHT

2460370

$31.35

12

COVER,TANK ASM(93-440)

2681592

Unavailable

13

TANK ASM,FUEL (Incl.16-19, 23)

2511199

Unavailable

14

SPRING, TANK

7042033

Unavailable

15

INSERT,TANKCOVER

5850098

Unavailable

16

FUELPICKUP,W/STRAINER

7052037

$12.94

17

RING, COMPRESSION(10)

7080402

$1.60

18

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

18

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

19

FITTING - OUTLET(10)

7052023

$24.99

20

CLAMP-HOSE, (LARGE GREEN) (Green)

7080307

$1.49

21

SPRING,TANK,(10)

7042020

$13.75

22

LINE,VENT,(38.0'') Substituted by 8360009-600

5521087

Unavailable

23

FITTING,(10)

7052077

$6.39

24

FOAM, FILLER

5810201

Unavailable

25

GROMMET

5410644

Unavailable

26

GASKET, GAS CAP

5810513

$8.89

27

GAUGE, GAS

2511198

Unavailable
