OIL TANK / AIR BOX ASSEMBLY 440 / 0930760 and 440 SKS / 0930560 (4922932293027A)

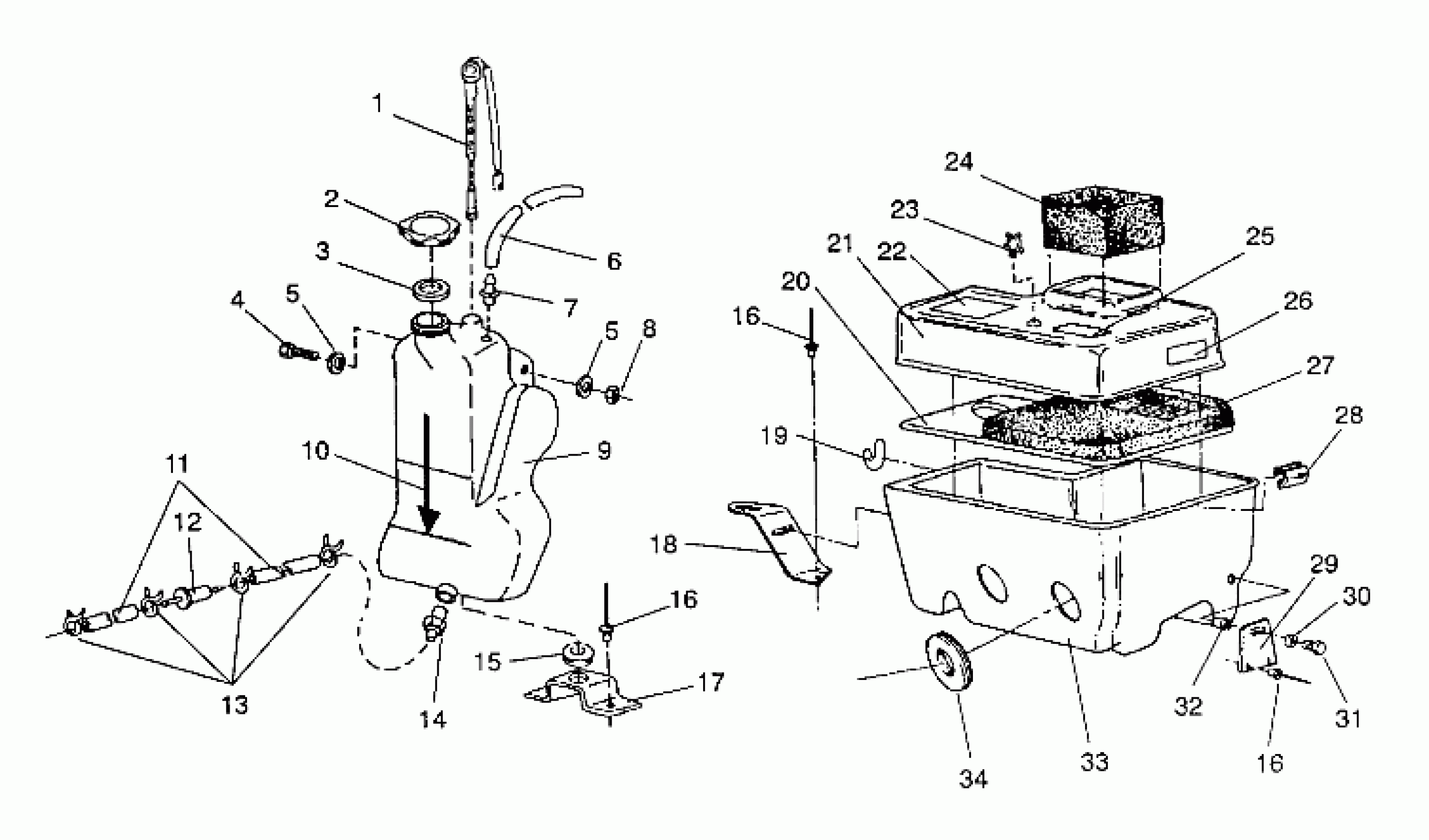

Polaris 440 L/C - 0930760 OIL TANK / AIR BOX ASSEMBLY 440 / 0930760 and 440 SKS / 0930560 (4922932293027A) Diagram
#
Description
Price
1
SENSOR,OIL LEVEL,W/CONN. Substituted by 4040040
4040016
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512103
$3.19
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
KIT-TANK VENT
2200190
Unavailable
7
VENT-TANK
5430579
Unavailable
8
Nut, Nylok
7542122
$1.49
9
TANK, OIL
5430997
Unavailable
10
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
11
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
Unavailable
12
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
13
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
14
FITTING, OUTLET
7052042
$8.99
15
GROMMET RUBBER
5410021
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
17
BRACKET
5223985
Unavailable
18
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
19
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
20
PLATE,AIR SILENCER
5850075
$24.27
21
COVER, SILENCER
5430920
$61.99
22
DECAL,COOLING SYS. [No Longer Available]
7073721
Unavailable
23
CLAMP,WIRE ROUTING(10)
7080409
$2.39
24
INTAKE ASM, FOAM
1253107
$36.41
25
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
26
DECAL, GREASING [No Longer Available]
7073426
$7.27
27
BAFFLE ASM.
1253102
$64.75
28
CLIP, AIR BOX,(10)
7670055
$7.99
29
BRACKET, SILENCER
5211274
$9.70
30
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
31
SCREW(10)
7512279
$1.49
32
NUT-WELL(10)
7541923
$5.59
33
SILENCER, DRILLED
5430955
Unavailable
34
Boot
5410271
Unavailable
