FRONT SUSPENSION and SKI 440 / 0930760 and 440 SKS / 0930560 (4922932293011A)

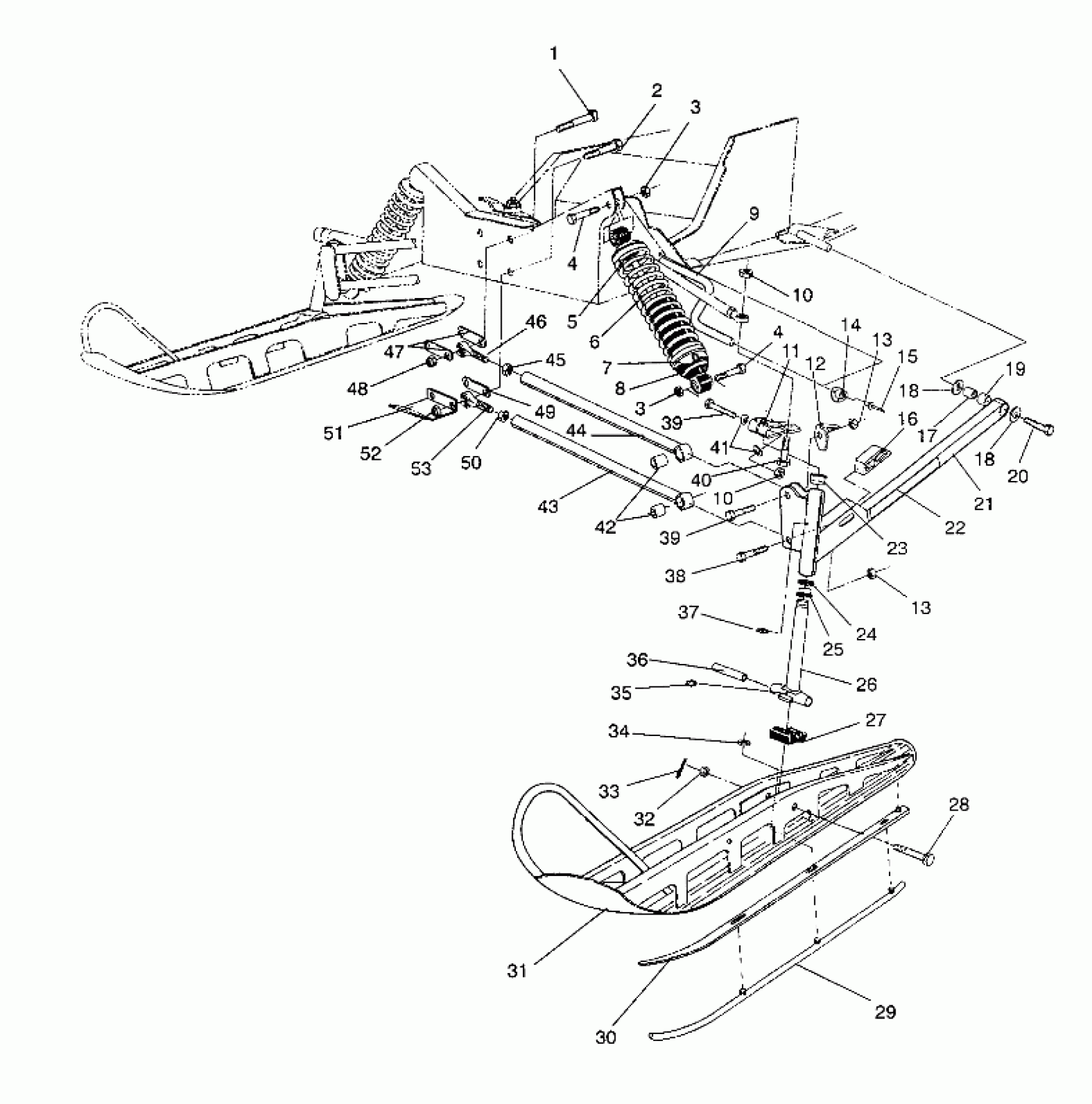

Polaris 440 L/C - 0930760 FRONT SUSPENSION and SKI 440 / 0930760 and 440 SKS / 0930560 (4922932293011A) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT, NYLOC(10)
7542453
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COMP.,BLK.
7041261-067
$164.99
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
SHOCK,FR.SUSP.
7041144
Unavailable
9
BAR,SWAY,BLACK (SKS)
5224237-067
Unavailable
9
BAR,SWAY,9/16,BLK. (440)
5224476-067
Unavailable
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
10
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
Arm, Steering
5220326-067
Unavailable
12
STOP,STRNG,LH,BLK.
5220237-067
Unavailable
12
STOP,STRNG,RH,BLK.
5220238-067
Unavailable
13
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
13
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
14
BUSHING-SWAYBAR
5410383
Unavailable
15
RIVET(50)
7621433
$1.49
16
SLIDE-SWAYBAR
5410384
Unavailable
17
TUBE,TRAILING ARM
5010187
Unavailable
18
WASHER(10)
7555721
$1.49
18
WASHER(10)
7555721
$1.49
19
PIVOT-TRAILING ARM
5410382
Unavailable
20
BOLT(10)
7512557
$7.60
21
ARM,TRLG,LH,BLK. Substituted by 1822427
1822053-067
Unavailable
21
ARM,TRLG,RH,BLK. Substituted by 1822428
1822052-067
Unavailable
22
DECAL,LH,IFS,RED [No Longer Available]
7072950
Unavailable
22
DECAL,RH,IFS,RED [No Longer Available]
7072951
Unavailable
23
BUSHING-FLANGE
3573909
$2.39
24
WASHER SPECIAL(10)
7556509
$1.59
25
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
26
SPINDLE,GREASABLE Substituted by 6230073-067
5130919-067
Unavailable
27
STOP-RUBBER
5521094
Unavailable
28
BOLT(10)
7515462
$8.79
29
SKAG Substituted by 1820318-067 (440)
1820318
$49.99
29
SKAG,PR.,CARBIDE (SKS)
2870693
$69.99
30
PLATE, SKAG Substituted by 1011829-067 (440 only)
1011829
$54.99
31
SKI WELD, BLK
1820332-067
Unavailable
32
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
33
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
34
NUT-5/16-18 NYLOK-Y QTY 4 PER 1820318 SKAG
7542324
$1.49
35
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
36
BUSHING,PIVOT,(10)
5010158
$19.99
37
ZERK,FITTING,THREADED(10)
7080433
$1.49
38
BOLT(10) Substituted by 7515540
7515492
$4.62
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
39
BOLT(10) Substituted by 7517583
7515491
Unavailable
40
BOLT Substituted by 7512404
7515490
Unavailable
41
WASHER(10) Substituted by 7555832
7555851
Unavailable
42
BUSHING-RADIUS ROD,(10)
5010127
$7.99
43
ROD,RADIUS,BLACK (SKS)
1822045-067
Unavailable
43
ROD,RADIUS,(BLK.)LOW (440)
1822055-067
Unavailable
44
ROD,RADIUS,BLACK (SKS)
1822037-067
Unavailable
44
ROD, RADIUS,(BLK.) (440)
1822054-067
Unavailable
45
NUT JAM(10)
7542520
$2.39
46
ROD END, RH Substituted by 7061010
7060155
Unavailable
47
STRAP,SPACER TOP
5211344
$7.27
48
NUT, LOCK,(10)
7542503
$10.39
49
STRAP,SPACER BOTTOM
5211345
$12.99
50
NUT-JAM(10)
7542711
$2.39
51
BRACE, PAN
5223997-067
Unavailable
52
NUT FLEX,(10)
7542703
Unavailable
53
ROD END,RH Substituted by 7061011
7060156
Unavailable
