COOLING SYSTEM 440 / 0930760 and 440 SKS / 0930560 (4922932293013A)

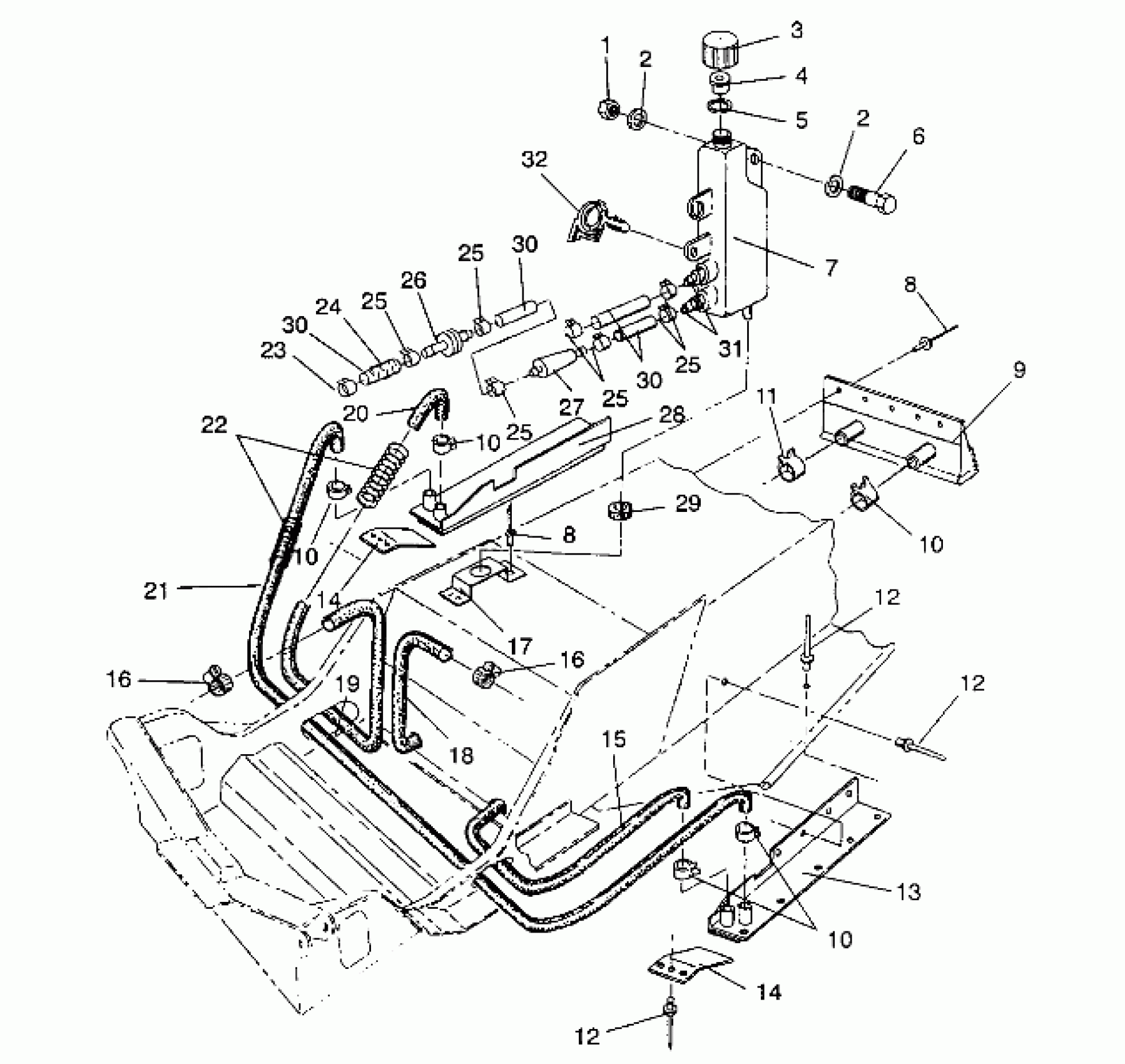

Polaris 440 L/C - 0930760 COOLING SYSTEM 440 / 0930760 and 440 SKS / 0930560 (4922932293013A) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE, OVERFLOW Substituted by 5431733
5431054
$36.41
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
9
EXT,CTR.COOLING
2511187
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
10
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
12
RIVET Substituted by 7661638
7661625
$1.19
12
RIVET Substituted by 7661638
7661625
$1.19
12
RIVET Substituted by 7661638
7661625
$1.19
13
EXT.,LH COOLING
2511209
Unavailable
14
GUARD,COOLING EXT
5240101
Unavailable
14
GUARD,COOLING EXT
5240101
Unavailable
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
16
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
16
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
17
BRACKET
5223985
Unavailable
18
HOSE
5410398
Unavailable
19
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
20
HOSE-INLET
5410323
Unavailable
21
HOSE-CROSSOVER
5410324
Unavailable
22
SPRING,HOSE RETAINER
7041079
$4.95
23
CLAMP-HOSE(10)
7080134
Unavailable
24
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
25
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
25
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
25
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
25
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
25
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
26
VALVE, CHECK
7052038
$10.51
27
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
28
EXT.,RH COOLING
2511210
Unavailable
29
GROMMET RUBBER
5410021
Unavailable
30
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
30
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
30
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
31
FITTING, OUTLET
7052042
$8.99
32
CLIP, PLASTIC(10)
4020139
$4.79
