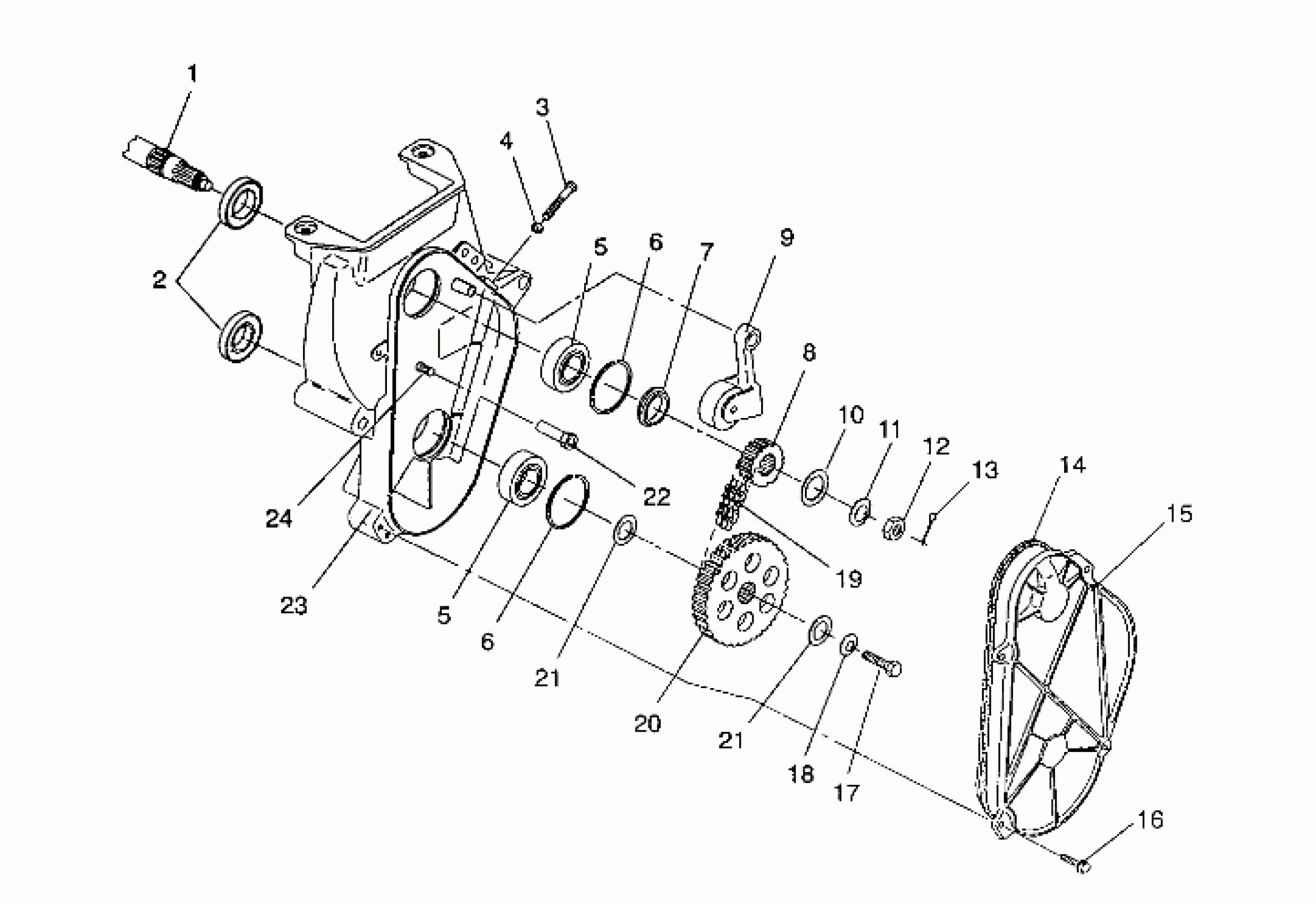

Polaris 440 L/C - 0930760 CHAINCASE ASSEMBLY 440 / 0930760 and 440 SKS / 0930560 (4922932293017A) Diagram

#

Description
Price

1

Asm., Jackshaft (See pg. 16)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

3

SCREW(10)

7515511

$3.99

4

NUT(10)

7542404

$1.59

5

BEARING,CHAINCASE

3514306

Unavailable

5

BEARING,CHAINCASE

3514306

Unavailable

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

6

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

SPACER, SPROCKET

5010270

Unavailable

8

SPROCKET 21 T

3221035

Unavailable

9

TIGHTENER ASM. Substituted by 1332213

1332078

$159.99

10

BUSHING(10)

7555863

$2.39

11

WASHER, SLOTTED(10)

7571620

$7.19

12

NUT, SLOTTED(10)

7542810

$3.19

13

COTTER PIN(10)

7661401

$1.49

14

GASKET-CHAINCASE

5410277

$24.99

15

COVER, CHAINCASE Substituted by 5630968

5630413

Unavailable

16

SCREW(10)

7512225

$3.99

17

SCREW(10)

7515350

$3.97

18

WASHER(10)

7571618

$6.39

19

CHAIN 66 PITCH

3224024

Unavailable

20

SPROCKET 39 T

3222034

Unavailable

21

BUSHING(10)

7555864

$2.39

21

BUSHING(10)

7555864

$2.39

22

CAP, STUD COVER

5020569

Unavailable

23

CHAINCASE,TOP MNT.BRAKE

5130849

Unavailable

24

BOLT(10)

7515477

$34.99
