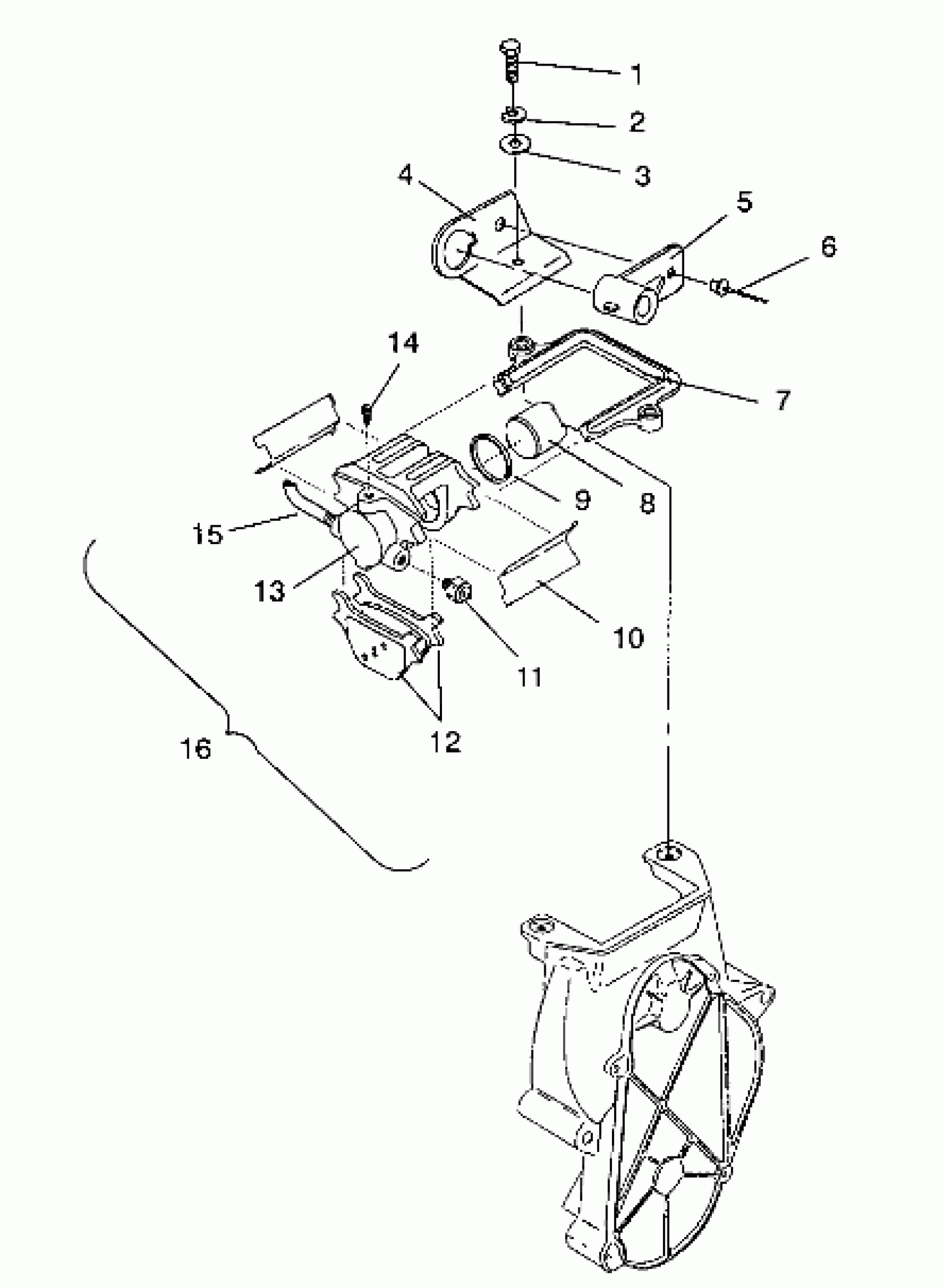

Polaris 440 L/C - 0930760 BRAKE ASSEMBLY 440 / 0930760 and 440 SKS / 0930560 (4922932293016A) Diagram

BOLT(10)

7515521

$3.99

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

Unavailable

WASHER(10)

7555806

$1.49

BRKT,C.C.ROPE GUIDE Substituted by 5240277-067

5222828-067

Unavailable

GUIDE, RECOIL

5431385

$10.51

RIVET,(50)

7621477

$1.19

KIT,CALIPER BRKT.

1930733

Unavailable

KIT, PISTON SEAL (Incl. 9)

1930734

Unavailable

SEAL

2200466

$32.37

KIT,CLIP SPRING (Qty. 2)

2200467

Unavailable

SWITCH,STOPLIGHT

4110135

Unavailable

KIT,H.D.BRAKEPAD,TOP MT. Substituted by 2200594 (Incl. 10)

2200459

Unavailable

KIT, BRAKE PAD Substituted by 2200604 (Incl. 10)

1930723

Unavailable

KIT,CALIPER(AIR-COOLED) (Incl. 8,9 & 14)

1930737

Unavailable

KIT, INLET

1930735

$9.11

LINE, BRAKE

1930696

Unavailable

CALIPER, BRAKE Substituted by 1930825 (Incl. 7-14)

1930701

Unavailable
