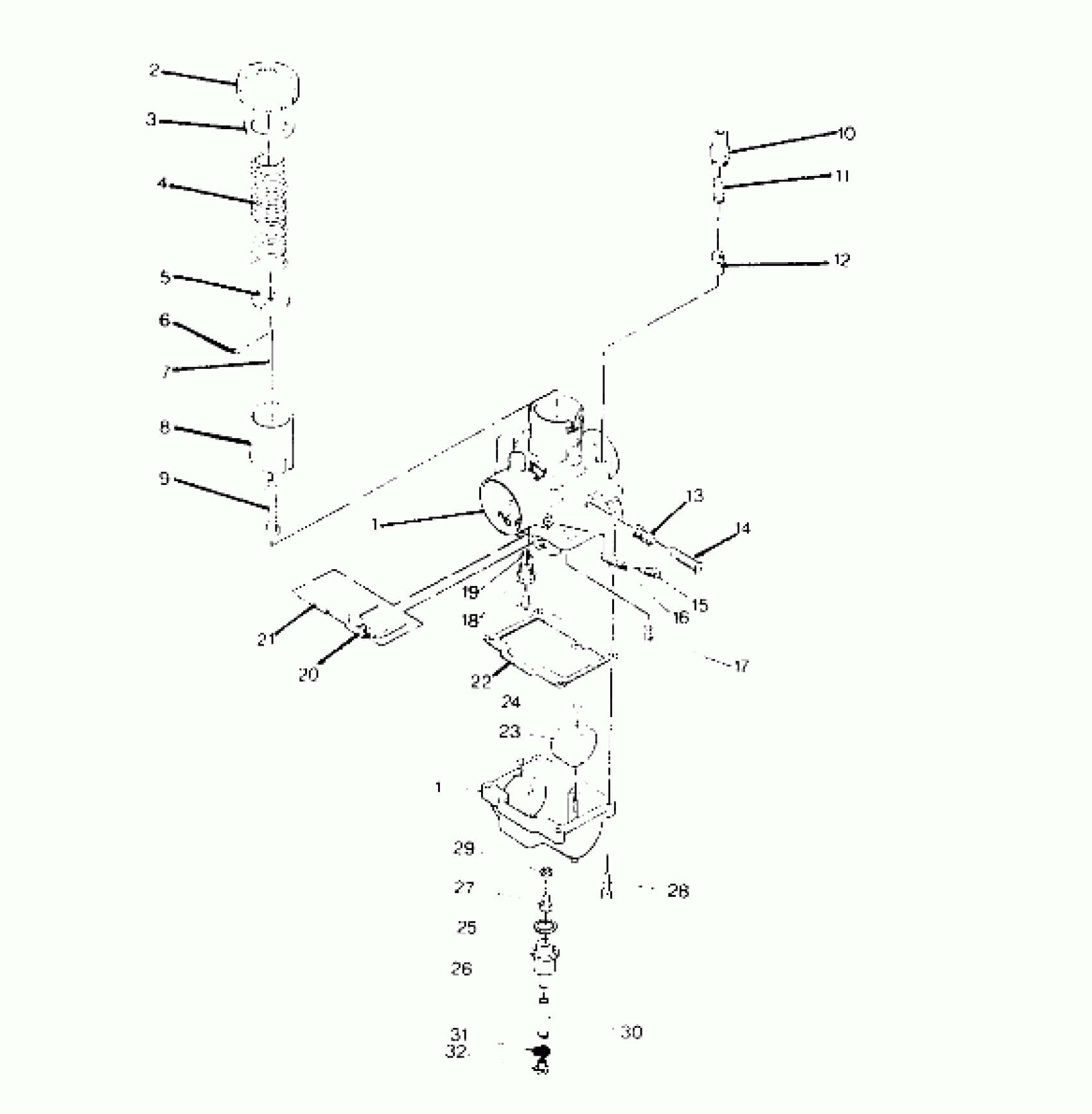

Polaris 440 - 0920760 CARBURETOR 440 (4921242124043A) Diagram
#
Description
Price
1
CARBURETOR Substituted by 3130630 (Incl. 2-32)
3130461
Unavailable
1
CARBURETOR Substituted by 3130630 (Incl. 2-32)
3130461
Unavailable
2
TOP ASM (Incl. 3)
3130184
$32.37
3
GASKET
-------
Unavailable
4
SPRING, THROTTLE
3130318
$20.22
5
PLATE
3130027
$9.70
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
JET NEEDLE Substituted by 3130329
3130158
Unavailable
8
VALVE, THROTTLE Substituted by 3130466
3130357
Unavailable
9
NEEDLE JET,(Q-2)
3130376
Unavailable
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR
3130011
$19.99
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#30(10)
3130065
$8.89
18
VALVE,NEEDLE Substituted by 3131146
3130016
$48.56
19
PACKING(10)
3130017
$4.03
20
ARM,FLOAT
3130018
$24.27
21
PIN, FLOAT Substituted by 3130361
3130235
$8.89
22
PACKING,FLOAT CHAMBER
3130020
$16.17
23
FLOAT ASM.
3130430
$43.56
24
CAP,(10)
3130237
$4.03
25
O RING
3130239
Unavailable
26
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
27
JET,MAIN,HX.HD#230(10)
3130126
$7.27
28
SCREW & WASHER(10)
3130025
$3.19
29
WASHER (10)
3130014
$1.59
30
FUEL LINE-50FT.PKG. Substituted by 8450003-1525 (Cut to Fit)
2870563
Unavailable
31
CLAMP-HOSE,(10)
7080236
$1.59
32
PLUG, TRAP Substituted by 5431893
5431001
Unavailable
