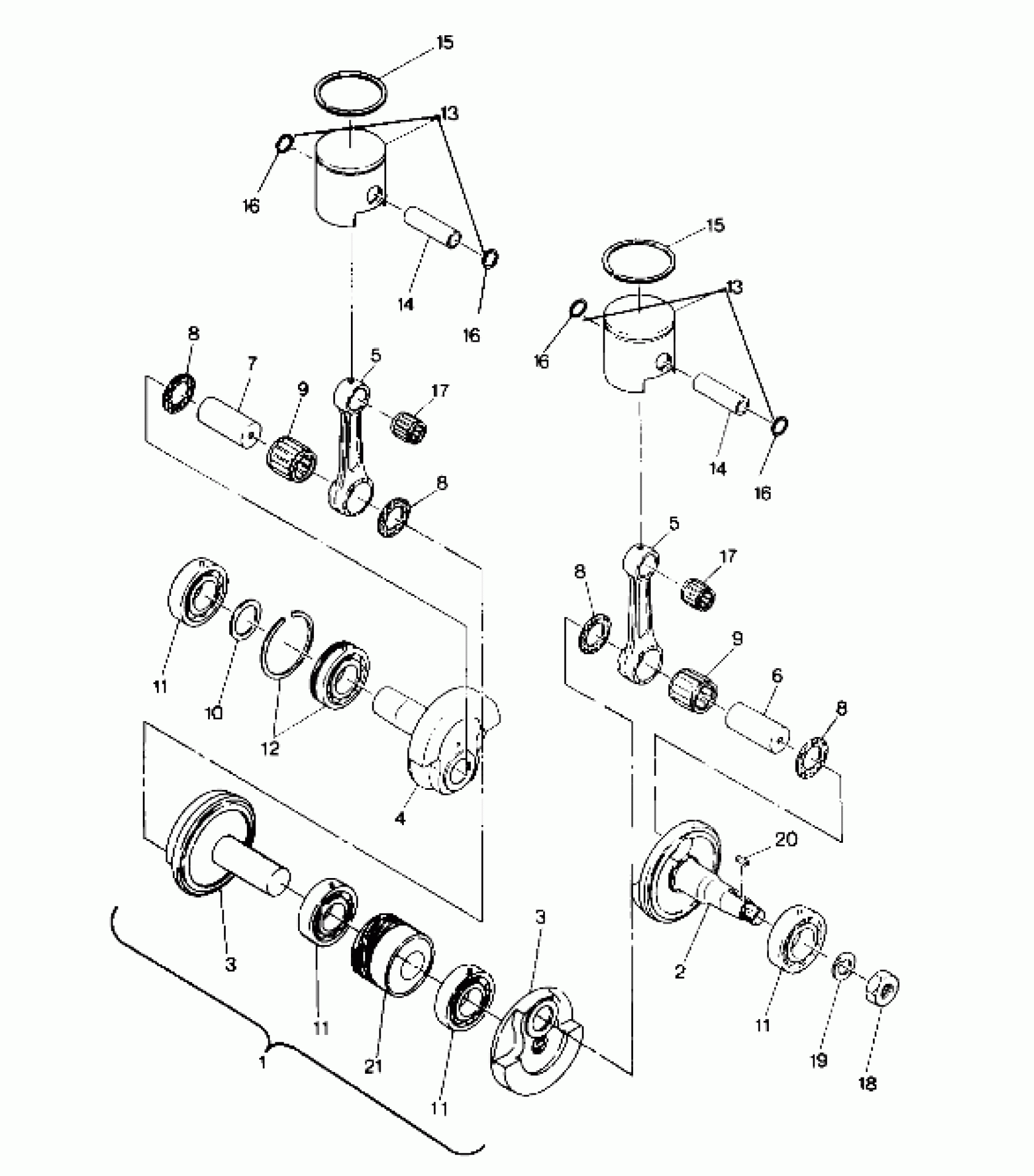

Polaris 400 - 0910759 PISTON AND CRANKSHAFT 400 (4919241924025A) Diagram
#
Description
Price
1
CRANKSHAFT ASM. Substituted by 3084360 (Incl.2-11,21)
3083794
$999.99
2
CRANKSHAFT #1
3083362
Unavailable
3
CRANKSHAFT 2 (Incl.6)
3083713
$583.49
3
CRANKSHAFT 2 (Incl.6)
3083713
$583.49
4
CRANKSHAFT #3 Substituted by 3084357
3083364
Unavailable
5
ROD-CONNECTING
3083252
$164.99
5
ROD-CONNECTING
3083252
$164.99
6
PIN,CRANK
3083233
$36.41
7
Pin, Crank, 2
3083456
Unavailable
8
SPACER(CRANKPIN)
3083277
$15.99
8
SPACER(CRANKPIN)
3083277
$15.99
8
SPACER(CRANKPIN)
3083277
$15.99
8
SPACER(CRANKPIN)
3083277
$15.99
9
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
10
SPACER,CRANKSHAFT
3080447
$1.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
12
BALL BEARING, C-4
3083714
Unavailable
13
PISTON (Std.)(Incl. 16)
3083848
$138.08
13
PISTON, .010 O/S (.010)(Incl.16)
3083877
$85.99
13
PISTON, .020 O/S (.020)(Incl.16)
3083878
$80.29
13
PISTON (Std.)(Incl. 16)
3083848
$138.08
13
PISTON, .010 O/S (.010)(Incl.16)
3083877
$85.99
13
PISTON, .020 O/S (.020)(Incl.16)
3083878
$80.29
14
Pin, Piston
3083849
$19.83
14
Pin, Piston
3083849
$19.83
15
RING, PISTON .010 O/S (.010)
3083358
Unavailable
15
RING,PISTON .020 O/S (.020)
3083359
Unavailable
15
RING, PISTON Substituted by 3083349 (Std.)
3083302
Unavailable
15
RING, PISTON .010 O/S (.010)
3083358
Unavailable
15
RING,PISTON .020 O/S (.020)
3083359
Unavailable
15
RING, PISTON Substituted by 3083349 (Std.)
3083302
Unavailable
16
CLIP,PISTON PIN,(10)
3083839
$4.75
16
CLIP,PISTON PIN,(10)
3083839
$4.75
16
CLIP,PISTON PIN,(10)
3083839
$4.75
16
CLIP,PISTON PIN,(10)
3083839
$4.75
17
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
17
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
18
NUT
3083093
$19.99
19
WASHER-SPRING(10)
3083094
$3.17
20
KEY Substituted by 3081447
3080364
Unavailable
21
GEAR,DRIVE,OIL PUMP
3083782
$102.13
