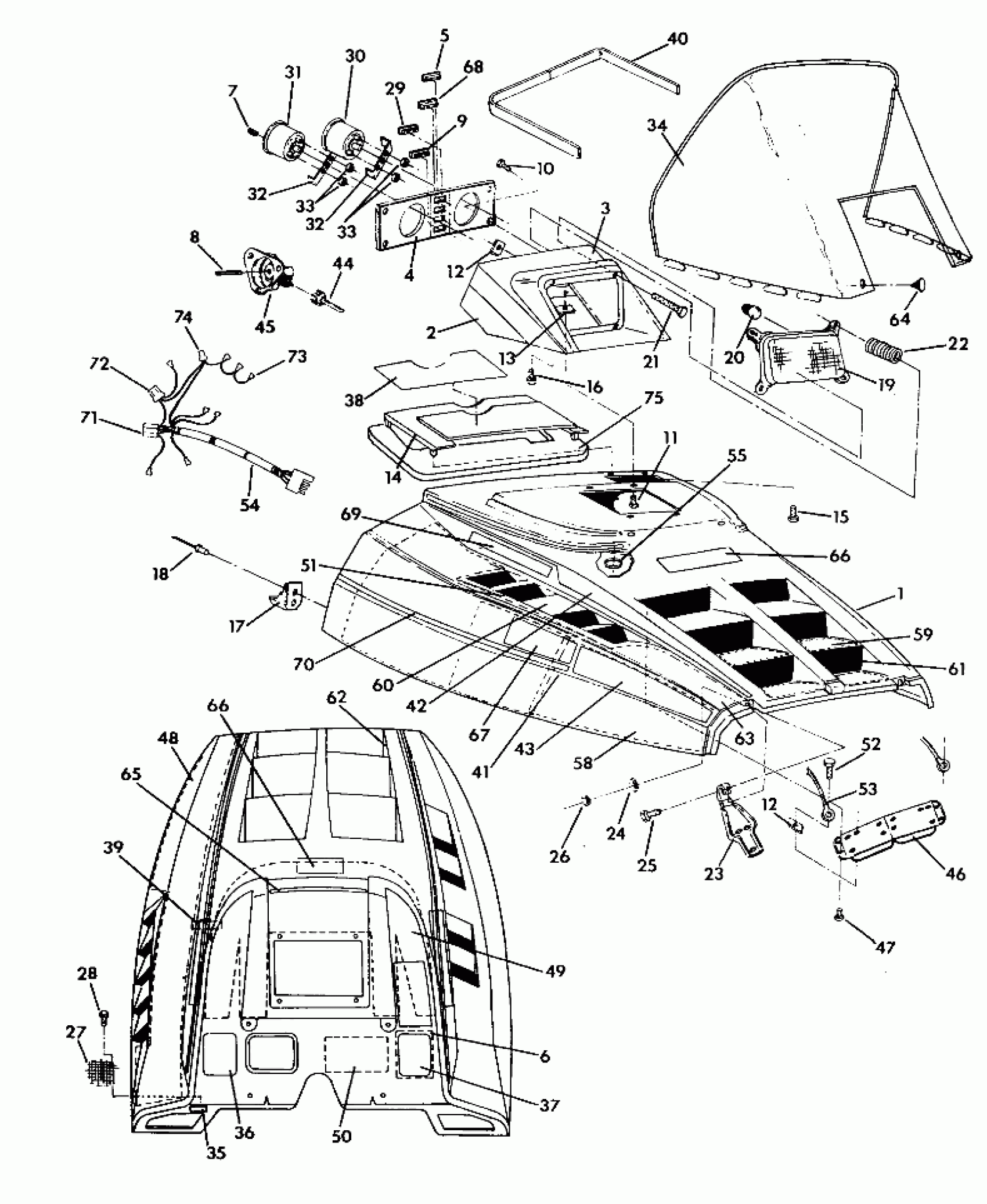

Polaris 400 - 0910759 HOOD 400 (4919241924003A) Diagram
#
1
HOOD,'400 INDY' Substituted by 2631574-136
5431194-136
Unavailable
2
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
3
HSG,INST,TOP,BLK
5430923-070
Unavailable
4
BEZEL, INST.
5430924
Unavailable
5
INDICATOR'TEMP'WARN.
4040011
$32.37
6
DECAL,SPEC,('88-'91) [No Longer Available]
7072503
Unavailable
7
KNOB,TRIP ODOMETER
3280103
$3.83
8
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
9
PLUG,INDIC.HOLE
5430967
$5.65
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
SCREW, SEMS(10)
7512283
$3.99
12
NUT, SPEED(10)
7670056
Unavailable
12
NUT, SPEED(10)
7670056
Unavailable
13
NUT, SPEED(10)
7670057
$1.49
14
PANEL,INTAKE(RED) Substituted by 2620078-136
5431195-136
Unavailable
15
SCREW(10)
7511840
Unavailable
16
SCREW(10)
7512009
Unavailable
17
CUP, HOOD LATCH,(10)
5430733
$4.84
18
RIVET(50)
7621334
$1.49
19
HEADLIGHT ASM. (Incl.20-22)
4032040
Unavailable
20
BULB,QUARTZ.H/L,INDY
2870448
$24.99
20
BULB, H/L
4030028
$29.99
21
SCREW, ADJ.(10)
4032003
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
HINGE ASM,HD. Substituted by 2635005-067
2635005
Unavailable
24
WASHER,WROUGHT(10)
7558302
$1.59
25
BOLT-CARRIAGE(10)
7512263
$3.99
26
NUT-LOCK(10)
7542122
$1.49
27
SCREEN, HOOD Substituted by 5211117-067
5211117
Unavailable
28
SCREW(10)
7511858
$3.99
29
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
30
SPEEDOMETER (Incl.32-33)
3280092
$111.99
31
TACHOMETER (Incl.32-33)
3280093
Unavailable
32
BRACKET
3280098
Unavailable
32
BRACKET
3280098
Unavailable
33
NUT
3280063
Unavailable
33
NUT
3280063
Unavailable
34
WINDSHIELD,SMOKE,STD(LIQ)
5431144
$134.99
35
LABEL, 'U.S.A.'
7073024
Unavailable
36
DECAL,OP.CAUT,(ENG.) [No Longer Available]
7072489
Unavailable
37
DECAL,OP.CAUT,(FR.) [No Longer Available]
7072490
Unavailable
38
DECAL,DASH WARNING [No Longer Available]
7072491
Unavailable
39
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
40
PAD,W/S,LH,BLACK
5810437
Unavailable
40
PAD,W/S,RH,BLACK
5810438
$1.67
41
TAPE,FOIL,FOAM
5810405
Unavailable
42
DECAL,RH,HD.TOP(91-400) [No Longer Available]
7072963
Unavailable
42
DECAL,LH,HD.TOP(91-400) [No Longer Available]
7072962
Unavailable
43
DECAL,LH,HOODSIDE(400) [No Longer Available]
7072956
Unavailable
43
DECAL,RH,HOODSIDE(400) [No Longer Available]
7072957
Unavailable
44
CABLE,SPEEDO.
3280094
$60.70
45
ADAPTER,DRIVE Substituted by 3280116
3280095
Unavailable
46
PLATE,RE-INF.,(HD.)
5222105
$49.51
47
SCREW(10)
7511861
Unavailable
48
FOAM, HOOD, RH
5810375
Unavailable
48
FOAM, HOOD, LH
5810374
Unavailable
49
FOAM, HOOD, CTR
5810376
Unavailable
50
FOAM, HOOD
5810389
Unavailable
51
TAPE,FOIL
5810395
Unavailable
52
SCREW(10)
7511989
Unavailable
53
CABLE,HD.RETAINER
7080360
$24.27
54
HARNESS, HEADLIGHT
2460320
Unavailable
55
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
58
TAPE,FOIL,FOAM
5810407
Unavailable
59
TAPE,FOIL,LH
5810393
Unavailable
59
TAPE,FOIL,RH
5810394
Unavailable
60
TAPE,FOIL
5810396
Unavailable
61
TAPE,FOIL
5810397
Unavailable
62
TAPE,FOIL,LOUVER,PIPE SIDE
5810404
Unavailable
63
TAPE,FOIL,FOAM
5810406
Unavailable
64
CLIP-PLASTIC(10) Substituted by 7621505
7670041
Unavailable
65
DECAL,HOOD-H/L POD [No Longer Available]
7072676
Unavailable
66
LOGO, '400' [No Longer Available]
5431241
Unavailable
66
LOGO, '400' [No Longer Available]
5431241
Unavailable
67
DECAL,400,(91) [No Longer Available]
7072966
Unavailable
68
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
69
DECAL,L/C TWIN [No Longer Available]
7072943
Unavailable
70
DECAL,LH,HD.SIDE TL.(91SP) [No Longer Available]
7072967
Unavailable
70
DECAL,RH,HD.SIDE,TL.(91SP) [No Longer Available]
7072968
Unavailable
71
HOUSING 3 CIRCUIT W/REC
2200022
Unavailable
72
KIT HOUSING 2 CIRCUIT
2200095
Unavailable
73
Receptacle
4020061
Unavailable
74
KIT HOUSING 2 CIRCUIT
2200095
Unavailable
75
SPRING,HOOD CABLE
7041202
Unavailable
75
SEAL, INTAKE Substituted by 5810597
5810503
Unavailable
