Description

Price

1

CYLINDER (Incl.2,3)

3083450

Unavailable

2

STUD

3083360

Unavailable

3

STUD (10)

3080016

$5.75

4

GASKET, BASE Substituted by 3084768

3083959

$64.99

5

NUT-FLANGE(10)

3082911

$1.99

6

WASHER Substituted by 3080530

3080051

Unavailable

7

HEAD, CYLINDER (Incl.8)

3083847

$371.99

8

PIPE, WATER (Water)

3083452

Unavailable

9

GASKET, HEAD

3083470

Unavailable

10

NUT-FLANGE(10)

3082910

$2.39

11

NUT(10)

3080285

Unavailable

12

PLUG Substituted by 3084491

3082718

Unavailable

13

GASKET-ALUM Substituted by 3084492

3082719

Unavailable

14

SWITCH,THERMAL(93 DEG.C.)

3083055

Unavailable

15

NECK ASM, FILLER Substituted by 3083398

3083311

Unavailable

16

GASKET, FILLER NECK

3083340

Unavailable

17

BOLT&WASHER ASM.

3083361

Unavailable

18

MOUNT, CARBURETOR Substituted by 3083306

3082439

Unavailable

19

Bolt, Allen

3081330

$3.99

20

BAND ASM. Substituted by 3083166 (Incl. 21)

3083085

Unavailable

21

SCREW Substituted by 3081497

3083086

Unavailable

22

GASKET, EXHAUST Substituted by 3083770

3084046

Unavailable

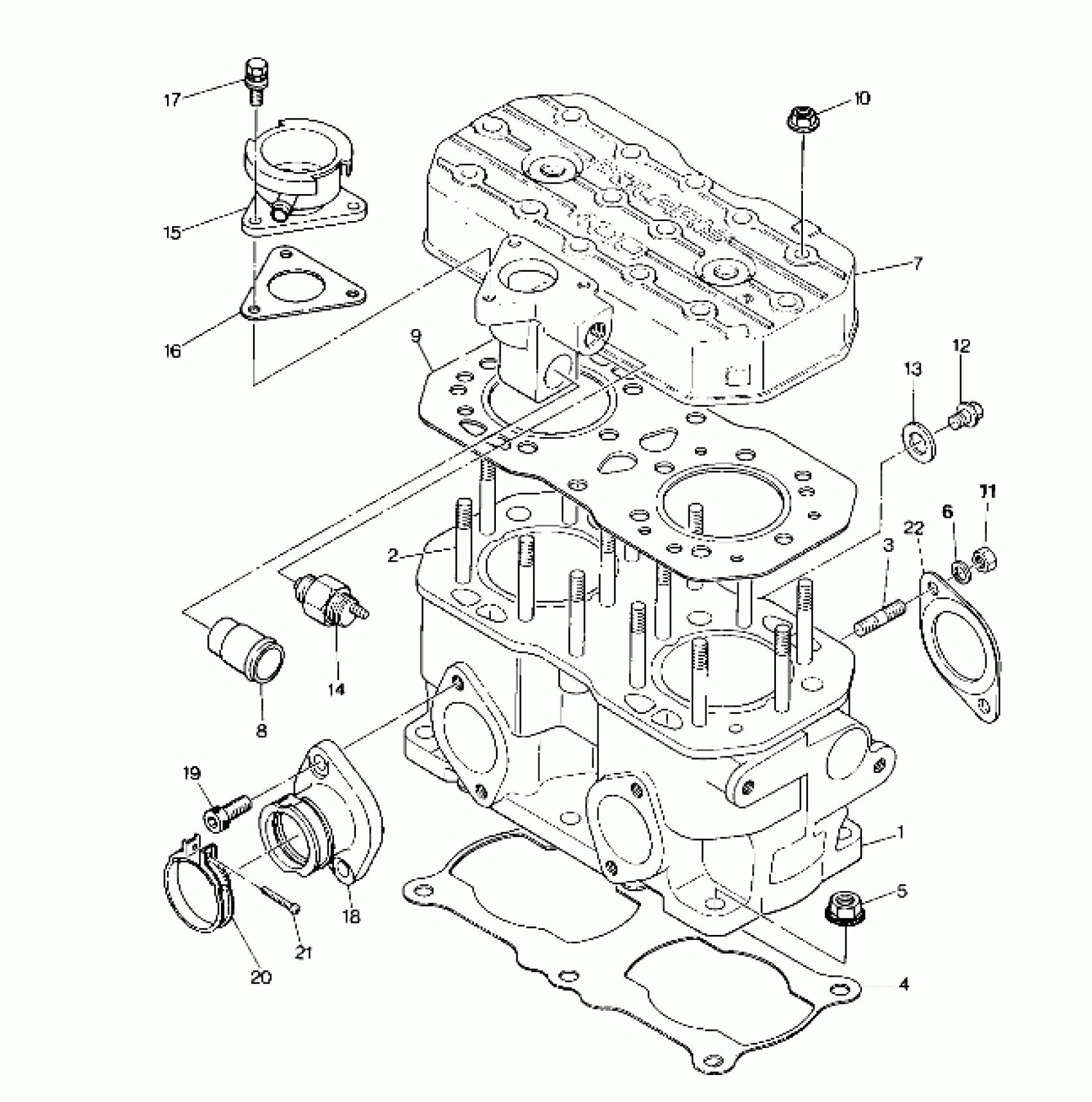

Polaris 400 - 0910759 CYLINDER 400 (4919241924024A) Diagram

CYLINDER (Incl.2,3)

STUD

STUD (10)

GASKET, BASE Substituted by 3084768

NUT-FLANGE(10)

WASHER Substituted by 3080530

HEAD, CYLINDER (Incl.8)

PIPE, WATER (Water)

GASKET, HEAD

NUT-FLANGE(10)

NUT(10)

PLUG Substituted by 3084491

GASKET-ALUM Substituted by 3084492

SWITCH,THERMAL(93 DEG.C.)

NECK ASM, FILLER Substituted by 3083398

GASKET, FILLER NECK

BOLT&WASHER ASM.

MOUNT, CARBURETOR Substituted by 3083306

Bolt, Allen

BAND ASM. Substituted by 3083166 (Incl. 21)

SCREW Substituted by 3081497

GASKET, EXHAUST Substituted by 3083770
