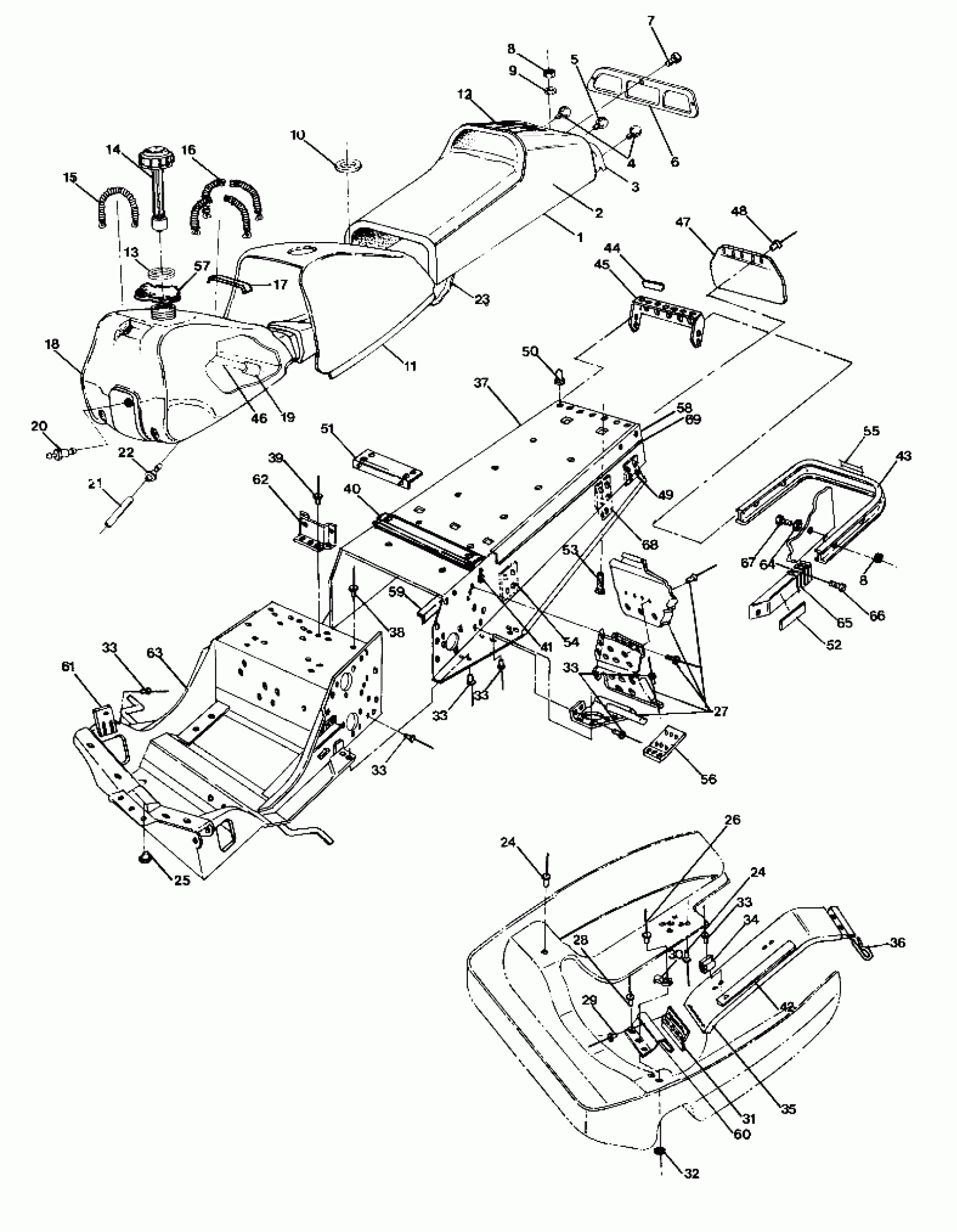

Polaris 400 - 0910759 CHASSIS & SEAT 400 (4919241924001A) Diagram
#
1
CUSHION ASM,(400) Substituted by 2200751 (Incl. 2-7,12,23)
2681478
Unavailable
2
COVER, SEAT, (400) Substituted by 2200741
2681479
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB TAILLIGHT(10)
4030015
$4.03
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
GROMMET,GAS TANK [No Longer Available]
5431190
Unavailable
11
COVER, TANK,(400)
2681480
Unavailable
12
BUCKLE&STRAP
2681290
$4.78
13
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
14
CAP,GAS(HI.CAP.)
2511184
Unavailable
15
SPRING,TANK,(10)
7042020
$13.75
16
SPRING-FRONT TANK
7042023
Unavailable
17
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Unavailable
18
TANK, GAS Substituted by 2511199
5431130
Unavailable
19
FUELPICKUP,W/STRAINER
7052037
$12.94
20
FITTING - OUTLET(10)
7052023
$24.99
21
KIT-TANK VENT
2200190
Unavailable
22
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
23
SEAT BUN [No Longer Available]
5430707
Unavailable
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
25
PLUG
7080288
Unavailable
26
POP RIVET(50)
7621402
$1.49
27
FOOTREST ASM,LH
2200250
Unavailable
27
FOOTREST ASM,RH
2200254
Unavailable
28
RIVET(50)
7621452
$1.49
29
RIVET, POP(50)
7621330
$1.49
30
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
31
HINGE
5210728
Unavailable
32
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
33
RIVET Substituted by 7621429
7621620
Unavailable
33
RIVET Substituted by 7621429
7621620
Unavailable
33
RIVET Substituted by 7621429
7621620
Unavailable
33
RIVET Substituted by 7621429
7621620
Unavailable
33
RIVET Substituted by 7621429
7621620
Unavailable
33
RIVET Substituted by 7621429
7621620
Unavailable
34
CLIP, BELT Substituted by 5222769
5220817
Unavailable
35
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
36
PIN,RETAINING,(10)
7080216
$9.70
37
TUNNEL,(LIQ.PLAIN)
1011808
Unavailable
38
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
40
BRKT,R.FUELTANK MTG. Substituted by 5222375-067
5222375
Unavailable
41
SNAP-MALE(10)
7080227
Unavailable
42
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
43
BUMPER, REAR Substituted by 5224334-067
5224334
Unavailable
44
DECAL, TRACK [No Longer Available]
7072872
Unavailable
45
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
46
GAS LINE, (FT.) [Cannot Purchase as Assembly]
8450003
$84.99
47
FLAP,SNOW(RED&BLACK) Substituted by 5410394-1117
5410577
$121.02
48
POP RIVET(50)
7621418
$1.49
49
WEARPLATE,TUNNEL
5222061
Unavailable
50
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
51
BRKT, TOOL BOX
5220973
Unavailable
52
REFLECTOR RED
2670070
$9.91
53
BOLT(10)
7512103
$3.19
54
BRKT. Substituted by 5220542-067
5220542
Unavailable
55
DECAL,36'',R.BUMP [No Longer Available]
7072582
Unavailable
56
PLATE,TUNNEL,LH
5220634
Unavailable
56
PLATE,TUNNEL,RH
5220635
Unavailable
57
FOAM, FILLER
5810201
Unavailable
58
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
59
BRACE,TUNNEL REINF.
5222412
Unavailable
59
BRACE,TUNNEL REINF.
5222412
Unavailable
60
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
61
SUPPORT, MUFFLER Substituted by 1011601-067
1011601
Unavailable
62
BRKT,GASTANK,WELD. Substituted by 1011733-067
1011733
Unavailable
63
BULKHEAD, (400) [No Longer Available]
1011613
Unavailable
64
WASHER(10)
7558301
$1.49
65
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
66
SCREW(10)
7511863
$1.99
67
BOLT(10)
7512240
$3.99
68
PAD,LH,R.SUSP.MTG. Substituted by 1011749-067
1011749
Unavailable
68
PAD,RH,R.SUSP.MTG. Substituted by 1011750-067
1011750
Unavailable
