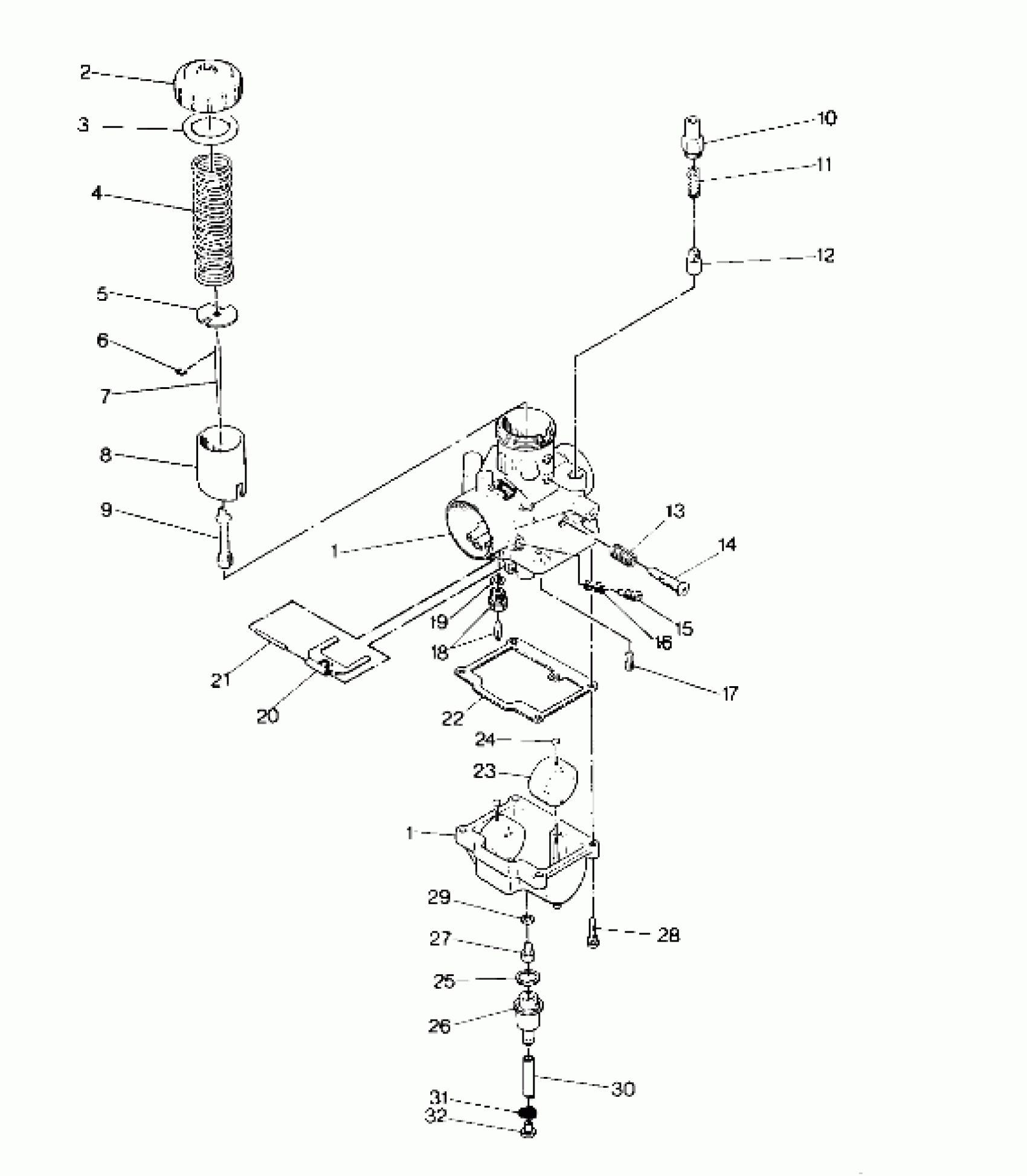

Polaris 400 - 0910759 CARBURETOR 400 (4919241924031A) Diagram
#
Description
Price
1
CARB. ASM. (Incl.2-32)
3130396
Unavailable
1
CARB. ASM. (Incl.2-32)
3130396
Unavailable
2
TOP ASM (Incl.3)
3130184
$32.37
3
GASKET
-------
Unavailable
4
SPRING, THROTTLE
3130318
$20.22
5
PLATE
3130027
$9.70
6
E RING,(10) Substituted by 3130508
3130230
Unavailable
7
JET, NEEDLE
3130374
Unavailable
8
VALVE, THROTTLE
3130332
Unavailable
9
NEEDLE JET,(Q-2)
3130376
Unavailable
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR Substituted by 3130011
3130233
Unavailable
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET, IDLER H30 Substituted by 3130065
3130331
Unavailable
18
VALVE,NEEDLE Substituted by 3131146
3130016
$48.56
19
PACKING(10)
3130017
$4.03
20
ARM,FLOAT
3130018
$24.27
21
PIN, FLOAT Substituted by 3130361
3130235
$8.89
22
PACKING,FLOAT CHAMBER
3130020
$16.17
23
FLOAT ASM. Substituted by 3130430
3130032
Unavailable
24
CAP,(10) Substituted by 3130237
3130022
Unavailable
25
O RING Substituted by 3130239
3082472
Unavailable
26
NIPPLE Substituted by 5020476
3130387
$10.56
27
JET,MAIN,HX.HD#230(10)
3130126
$7.27
28
SCREW & WASHER(10)
3130025
$3.19
29
WASHER (10)
3130014
$1.59
30
FUEL LINE-50FT.PKG. Substituted by 8450003-1525 (Cut to Fit)
2870563
Unavailable
31
CLAMP-HOSE,(10)
7080236
$1.59
32
RIVET, (PLUG)(50)
7661912
Unavailable
