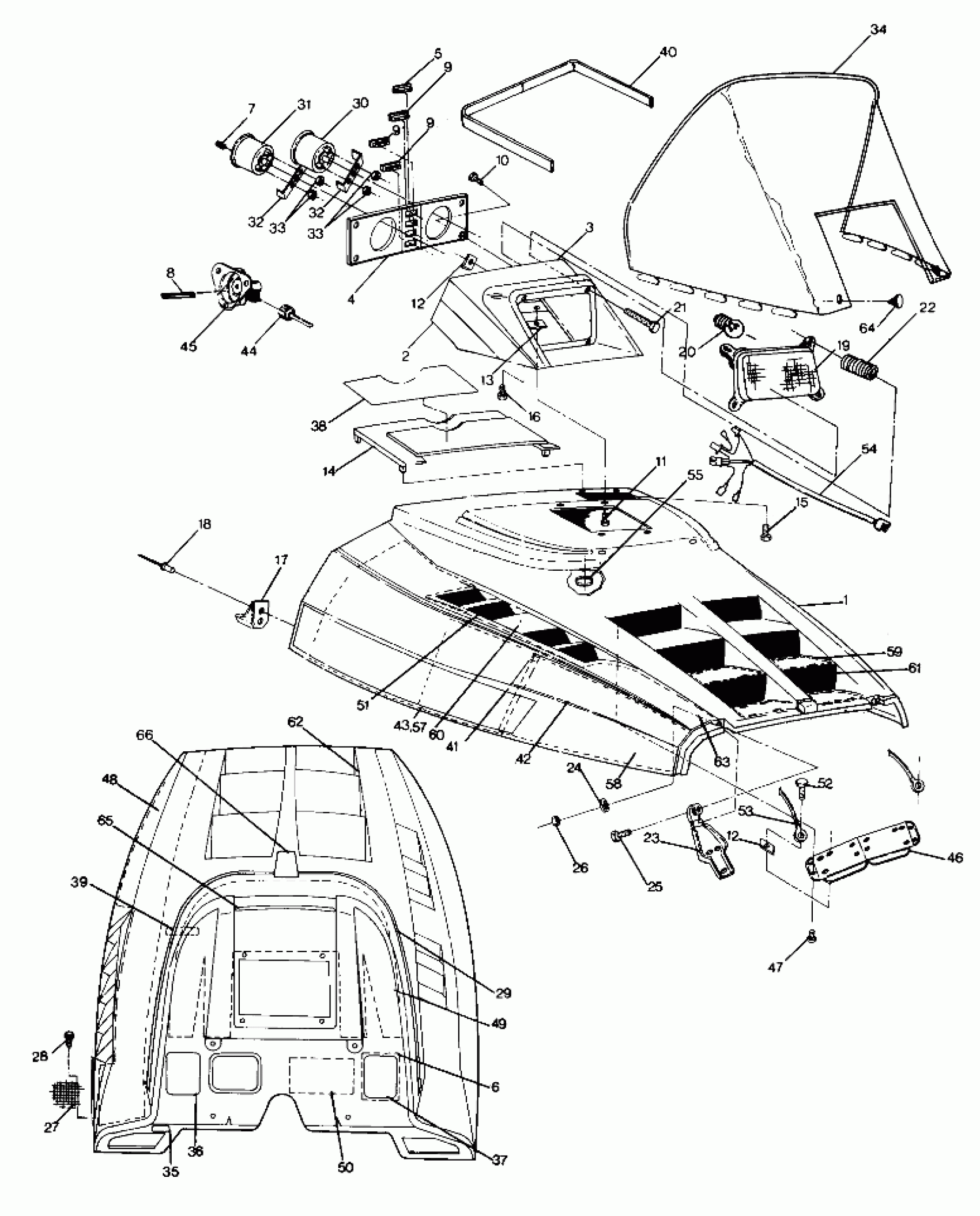

Polaris 400 - 0900759 HOOD 400 Updated 2/90 (4916781678003A) Diagram
#
1
HOOD Substituted by 5431194-070
5431194
Unavailable
2
HSG,INST,BOTTOM Substituted by 5430922-070
5431051
Unavailable
3
HSG,INST, TOP Substituted by 5430923-070
5431052
Unavailable
4
BEZEL, INST.
5430924
Unavailable
5
INDICATOR'TEMP'WARN.
4040011
$32.37
6
DECAL,SPEC,('88-'91) [No Longer Available]
7072503
Unavailable
7
KNOB,TRIP ODOMETER
3280103
$3.83
8
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
9
PLUG,INDIC.HOLE
5430967
$5.65
9
PLUG,INDIC.HOLE
5430967
$5.65
9
PLUG,INDIC.HOLE
5430967
$5.65
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
SCREW, SEMS(10)
7512283
$3.99
12
NUT, SPEED(10)
7670056
Unavailable
12
NUT, SPEED(10)
7670056
Unavailable
13
NUT, SPEED(10)
7670057
$1.49
14
DESC NOT_AVAILABLE
5431195
Unavailable
15
SCREW(10)
7511840
Unavailable
16
SCREW(10)
7512009
Unavailable
17
CUP, HOOD LATCH,(10)
5430733
$4.84
18
RIVET(50)
7621334
$1.49
19
HEADLIGHT ASM. Substituted by 4032040 (Incl. 20-22)
2431007
Unavailable
20
BULB,QUARTZ.H/L,INDY
2870448
$24.99
20
BULB, H/L
4030028
$29.99
21
SCREW, ADJ.(10)
4032003
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
HINGE ASM,HD. Substituted by 2635005-067
2635005
Unavailable
24
WASHER,WROUGHT(10)
7558302
$1.59
25
BOLT-CARRIAGE(10)
7512263
$3.99
26
NUT-LOCK(10)
7542122
$1.49
27
SCREEN, HOOD Substituted by 5211117-067
5211117
Unavailable
28
SCREW(10)
7511858
$3.99
29
DECAL, PINSTRIPE [No Longer Available]
7072739
Unavailable
30
SPEEDOMETER (Incl. 32-33)
3280092
$111.99
31
TACHOMETER (Incl. 32-33)
3280093
Unavailable
32
BRACKET
3280098
Unavailable
32
BRACKET
3280098
Unavailable
33
NUT
3280063
Unavailable
33
NUT
3280063
Unavailable
34
WINDSHIELD,SMOKE,STD(LIQ)
5431144
$134.99
35
LABEL, 'U.S.A.'
7073024
Unavailable
36
DECAL,OP.CAUT,(ENG.) [No Longer Available]
7072489
Unavailable
37
DECAL,OP.CAUT,(FR.) [No Longer Available]
7072490
Unavailable
38
DECAL,DASH WARNING [No Longer Available]
7072491
Unavailable
39
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
40
PAD,W/S,LH,BLACK
5810437
Unavailable
40
PAD,W/S,RH,BLACK
5810438
$1.67
41
TAPE,FOIL,FOAM
5810405
Unavailable
42
DECAL,LH,HOOD TOP [No Longer Available]
7072740
Unavailable
42
DECAL,RH,HOOD TOP [No Longer Available]
7072741
Unavailable
43
DECAL,LH, HOOD [No Longer Available]
7072742
Unavailable
43
DECAL,RH, HOOD [No Longer Available]
7072743
Unavailable
44
CABLE,SPEEDO.
3280094
$60.70
45
ADAPTER,DRIVE Substituted by 3280116
3280095
Unavailable
46
PLATE,RE-INF.,(HD.)
5222105
$49.51
47
SCREW(10)
7511861
Unavailable
48
FOAM, HOOD, RH
5810375
Unavailable
48
FOAM, HOOD, LH
5810374
Unavailable
49
FOAM, HOOD, CTR
5810376
Unavailable
50
FOAM, HOOD
5810389
Unavailable
51
TAPE,FOIL
5810395
Unavailable
52
SCREW(10)
7511989
Unavailable
53
CABLE,HD.RETAINER
7080360
$24.27
54
HARNESS,H/L.&INST. [No Longer Available]
2460261
Unavailable
55
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
57
KIT,DECAL,'400'(90) [No Longer Available] (Incl. 6, 35-37, 42, 43, 68, 69)
2200323
Unavailable
58
TAPE,FOIL,FOAM
5810407
Unavailable
59
TAPE,FOIL,LH
5810393
Unavailable
59
TAPE,FOIL,RH
5810394
Unavailable
60
TAPE,FOIL
5810396
Unavailable
61
TAPE,FOIL
5810397
Unavailable
62
TAPE,FOIL,LOUVER,PIPE SIDE
5810404
Unavailable
63
TAPE,FOIL,FOAM
5810406
Unavailable
64
CLIP-PLASTIC(10) Substituted by 7621505
7670041
Unavailable
65
DECAL,HOOD-H/L POD [No Longer Available]
7072676
Unavailable
66
SPRING,HOOD CABLE
7041202
Unavailable
66
HOLDER-CAP
4032004
Unavailable
66
EMBLEM,'35 YR'(400) [No Longer Available]
5431127
Unavailable
