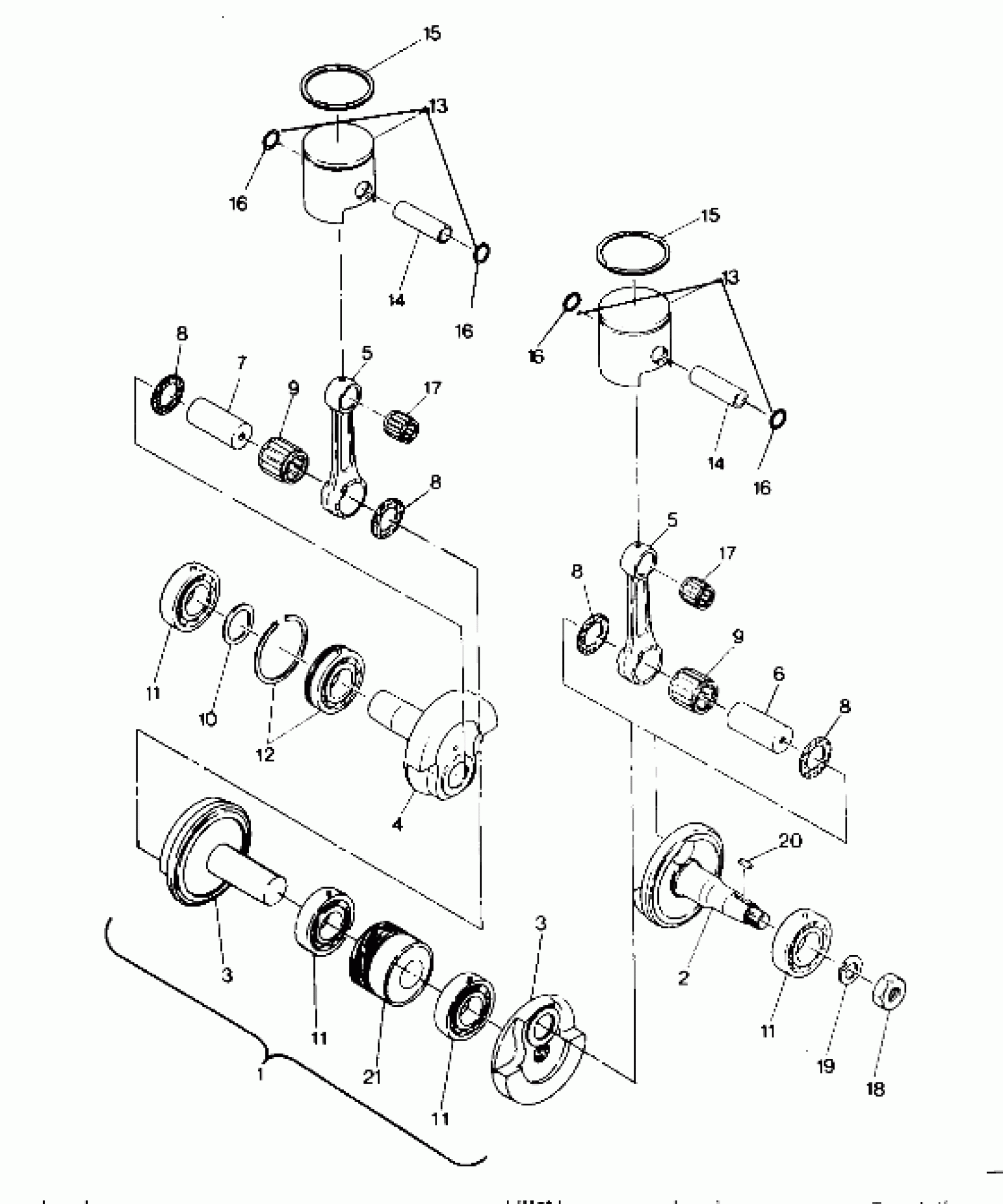

Polaris 400 - 0890759 PISTON AND CRANKSHAFT 400 (4915411541037A) Diagram
#
1
CRANKSHAFT ASM. Substituted by 3084360 (Incl. 2-11, 21)
3083794
$999.99
2
CRANKSHAFT #1
3083362
Unavailable
3
CRANKSHAFT 2 (Incl. 6)
3083713
$583.49
3
CRANKSHAFT 2 (Incl. 6)
3083713
$583.49
4
CRANKSHAFT #3 Substituted by 3084357
3083364
Unavailable
5
ROD-CONNECTING
3083252
$164.99
5
ROD-CONNECTING
3083252
$164.99
6
PIN,CRANK
3083233
$36.41
7
Pin, Crank, 2
3083456
Unavailable
8
SPACER(CRANKPIN)
3083277
$15.99
8
SPACER(CRANKPIN)
3083277
$15.99
8
SPACER(CRANKPIN)
3083277
$15.99
8
SPACER(CRANKPIN)
3083277
$15.99
9
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
10
SPACER,CRANKSHAFT
3080447
$1.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
12
BALL BEARING, C-4
3083714
Unavailable
13
PISTON (Standard) (Incl. 16)
3083848
$138.08
13
PISTON, .010 O/S (.O10 Over) (Incl. 16)
3083877
$85.99
13
PISTON, .020 O/S (.020 Over) (Incl. 16)
3083878
$80.29
13
PISTON, .020 O/S (Incl. 16)
3083878
$80.29
13
GASKET SET,FUEL PUMP Substituted by 3083957 (.O10 Over) (Incl. 16)
3083871
$54.99
13
PISTON (Standard) (Incl. 16)
3083848
$138.08
13
PISTON, .010 O/S (.O10 Over) (Incl. 16)
3083877
$85.99
13
PISTON, .020 O/S (.020 Over) (Incl. 16)
3083878
$80.29
13
PISTON, .020 O/S (Incl. 16)
3083878
$80.29
13
GASKET SET,FUEL PUMP Substituted by 3083957 (.O10 Over) (Incl. 16)
3083871
$54.99
14
Pin, Piston
3083849
$19.83
14
Pin, Piston
3083849
$19.83
15
RING, PISTON .010 O/S (.010 Over)
3083358
Unavailable
15
RING,PISTON .020 O/S (.020 Over)
3083359
Unavailable
15
RING, PISTON (Standard)
3083349
Unavailable
15
RING, PISTON (Standard}
3083349
Unavailable
15
RING, PISTON .010 O/S (.010 Over)
3083358
Unavailable
15
RING,PISTON .020 O/S (.020 Over)
3083359
Unavailable
15
RING, PISTON (Standard)
3083349
Unavailable
15
RING, PISTON (Standard}
3083349
Unavailable
16
CLIP,PISTON PIN,(10)
3083839
$4.75
16
CLIP,PISTON PIN,(10)
3083839
$4.75
16
CLIP,PISTON PIN,(10)
3083839
$4.75
16
CLIP,PISTON PIN,(10)
3083839
$4.75
17
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
17
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
18
NUT
3083093
$19.99
19
WASHER-SPRING(10)
3083094
$3.17
20
KEY
3081447
Unavailable
21
GEAR,DRIVE,OIL PUMP
3083782
$102.13
