HOOD 400, 500, 500 Classic and 650 Updated 10/88 (4915411541005A)

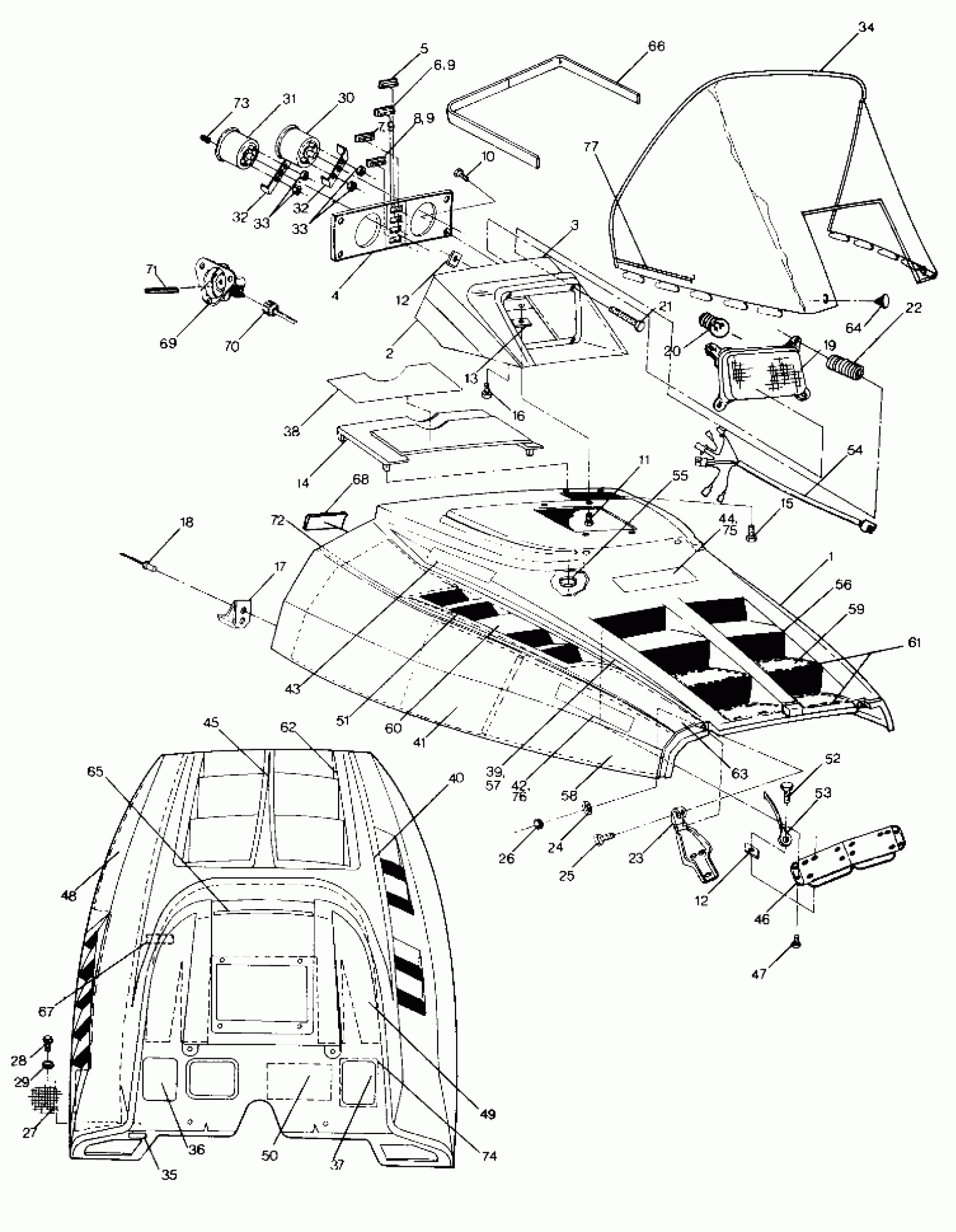

Polaris 400 - 0890759 HOOD 400, 500, 500 Classic and 650 Updated 10/88 (4915411541005A) Diagram
#
1
DESC NOT_AVAILABLE (650 & 500 Only)
5431079
Unavailable
2
HSG,INST,BOTTOM Substituted by 5430922-070
5431051
Unavailable
2
HOUSING,INST.BOTTOM Substituted by 5430922-070 (400 Only)
5430922
Unavailable
3
HSG,INST, TOP Substituted by 5430923-070
5431052
Unavailable
3
HOUSING,INST.TOP Substituted by 5430923-070 (400 Only)
5430923
Unavailable
4
BEZEL, INST.
5430924
Unavailable
5
INDICATOR'TEMP'WARN.
4040011
$32.37
6
INDICATOR'LOW-OIL'WARN. (500 Classic Only)
4040012
Unavailable
7
INDICATOR'HI-BEAM'WARN. (500 Classic Only}
4040013
Unavailable
7
INDICATOR'HI-BEAM'WARN. (500 Classic Only)
4040013
Unavailable
8
INDICATOR,'ACC'WARN. (500 Classic Only)
4040014
Unavailable
9
PLUG,INDIC.HOLE (All except 500 Classic)
5430967
$5.65
9
PLUG,INDIC.HOLE (All except 500 Classic)
5430967
$5.65
9
PLUG,INDIC.HOLE (All except 500 Classic)
5430967
$5.65
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
SCREW, SEMS(10)
7512283
$3.99
12
NUT, SPEED(10)
7670056
Unavailable
12
NUT, SPEED(10)
7670056
Unavailable
13
NUT, SPEED(10)
7670057
$1.49
14
DESC NOT_AVAILABLE (400 Only)
5431078
Unavailable
14
DESC NOT_AVAILABLE (650 & 500 Only)
5431078
Unavailable
15
SCREW(10)
7511840
Unavailable
16
SCREW(10)
7512009
Unavailable
17
CUP, HOOD LATCH,(10)
5430733
$4.84
18
RIVET(50)
7621334
$1.49
19
HEADLIGHT ASM. Substituted by 4032038 (Incl. 20-22)
2431006
Unavailable
20
BULB,QUARTZ.H/L,INDY
2870448
$24.99
20
BULB, H/L
4030028
$29.99
20
DESC NOT_AVAILABLE
4030039
Unavailable
21
SCREW, ADJ.(10)
4032003
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
HINGE ASM,HD. Substituted by 2635005-067
2635005
Unavailable
24
WASHER,WROUGHT(10)
7558302
$1.59
25
BOLT-CARRIAGE(10)
7512263
$3.99
26
NUT-LOCK(10)
7542122
$1.49
27
SCREEN, HOOD Substituted by 5211117-067
5211117
Unavailable
28
SCREW(10)
7511861
Unavailable
29
RIVET BURR(50)
7555756
$2.99
30
SPEEDOMETER (Incl. 32-33)
3280092
$111.99
30
SPEEDO.,(KILOMETER)
3280097
$125.65
31
TACHOMETER (Incl. 32-33)
3280093
Unavailable
31
TACHOMETER,3 CYL. Substituted by 3280192 (Incl. 32-33) (650 Only)
3280096
Unavailable
32
BRACKET
3280098
Unavailable
32
BRACKET
3280098
Unavailable
33
NUT
3280063
Unavailable
33
NUT
3280063
Unavailable
34
WINDSHIELD,STD,(88-92)
5431037
Unavailable
35
LABEL, 'U.S.A.'
7073024
Unavailable
36
DECAL,OP.CAUT,(ENG.) [No Longer Available] (400 Only)
7072489
Unavailable
36
DECAL,OP.CAUT,(ENG.) [No Longer Available] (400 Only}
7072489
Unavailable
36
DECAL,OPER.CAUT.ENG. [No Longer Available]
7072492
Unavailable
37
DECAL,OP.CAUT,(FR.) [No Longer Available] (400 Only)
7072490
Unavailable
37
DECAL,OP.CAUT,(FR.) [No Longer Available] (400 Only}
7072490
Unavailable
37
DECAL,OPER.CAUT.(FR.) [No Longer Available]
7072493
Unavailable
38
DECAL,DASH WARNING [No Longer Available]
7072491
Unavailable
38
DECAL,DASH WARNING [No Longer Available] (400 Only)
7072488
Unavailable
38
DECAL,DASH WARNING [No Longer Available] (400 Only}
7072488
Unavailable
39
DECAL,LH,HOOD STRIPE [No Longer Available] (400 & 650 Only)
7072570
Unavailable
39
DECAL,RH,HOOD STRIPE [No Longer Available] (400 & 650 Only)
7072571
Unavailable
39
DECAL,LH HOOD SIDE [No Longer Available] (500 Classic Only)
7072594
Unavailable
39
DECAL,RH HOOD SIDE [No Longer Available] (500 Classic Only)
7072595
Unavailable
39
DECAL,RH HOOD SIDE [No Longer Available] (500 Classic Only}
7072595
Unavailable
39
DECAL,LH HOOD STRIPE [No Longer Available] (500 Only)
7072654
Unavailable
39
DECAL,LH HOOD STRIPE [No Longer Available] (500 Only}
7072654
Unavailable
39
DECAL,RH HOOD STRIPE [No Longer Available] (500 Only)
7072655
Unavailable
40
DECAL,LH,HOOD FORK [No Longer Available] (400 & 650 Only)
7072572
Unavailable
40
DECAL,RH HOOD FORK [No Longer Available] (400 & 650 Only)
7072573
Unavailable
40
DECAL,LH HOOD TOP [No Longer Available] (500 Classic Only
7072609
Unavailable
40
DECAL,RH HOOD TOP [No Longer Available] (500 Classic Only)
7072610
Unavailable
40
DECAL,RH HOOD TOP [No Longer Available] (500 Classic Only}
7072610
Unavailable
40
DECAL,LH HOOD FORK [No Longer Available] (500 Only)
7072656
Unavailable
40
DECAL,RH HOOD FORK [No Longer Available] (500 Only)
7072657
Unavailable
41
TAPE,FOIL,FOAM
5810405
Unavailable
42
DECAL,LOW.HOOD(650) [No Longer Available] (650 Only)
7072576
Unavailable
42
DECAL,LOW.HOOD(500) [No Longer Available] (500 Only)
7072577
Unavailable
42
DECAL,HOOD,"400"LOWER [No Longer Available] (400 Only)
7072644
Unavailable
43
DECAL,INDY,SILVER [No Longer Available] (650 Only)
7072578
Unavailable
43
DECAL, 'INDY' [No Longer Available] (400 Only)
7072579
Unavailable
43
DECAL, INDY [No Longer Available] (500 Only)
7072658
Unavailable
44
DECAL,CTR,(500) [No Longer Available] (500 Only)
7072575
Unavailable
44
DECAL,CTR,(650) [No Longer Available] (650 Only)
7072586
Unavailable
44
DECAL,CTR,'400' [No Longer Available] (400 Only)
7072645
Unavailable
45
DECAL,CTR,HOOD FORK [No Longer Available] (400 & 650 Only)
7072574
Unavailable
45
DECAL,CTR,HOOD FORK [No Longer Available] (500 Only)
7072660
Unavailable
46
PLATE,RE-INF.,(HD.)
5222105
$49.51
48
FOAM, HOOD, RH
5810375
Unavailable
48
FOAM, HOOD, LH
5810374
Unavailable
49
FOAM, HOOD, CTR
5810376
Unavailable
50
FOAM, HOOD
5810389
Unavailable
51
TAPE,FOIL
5810395
Unavailable
52
SCREW(10)
7511989
Unavailable
53
CABLE,HD.RETAINER
7080360
$24.27
53
CABLE,HOOD RETAINER (650 Only)
7080368
$10.51
54
HARNESS,H/L.&INST. [No Longer Available]
2460261
Unavailable
54
HARNESS,H/L.&INST. [No Longer Available] (500 Classic Only)
2460260
Unavailable
55
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
56
Staple, 5/32
-------
Unavailable
57
KIT,DECAL,89'400' [No Longer Available] 35
2200286
Unavailable
57
KIT,DECAL,89'500' [No Longer Available] 35
2200287
Unavailable
57
KIT,DECAL'89 CLASSIC [No Longer Available] 47
2200288
Unavailable
57
KIT,DECAL,89'650' [No Longer Available] 35
2200289
Unavailable
58
TAPE,FOIL,FOAM
5810407
Unavailable
59
TAPE,FOIL,LH
5810393
Unavailable
59
TAPE,FOIL,RH
5810394
Unavailable
60
TAPE,FOIL
5810396
Unavailable
61
TAPE,FOIL
5810397
Unavailable
62
TAPE,FOIL,LOUVER,PIPE SIDE
5810404
Unavailable
63
TAPE,FOIL,FOAM
5810406
Unavailable
64
CLIP-PLASTIC(10) Substituted by 7621505
7670041
Unavailable
65
DECAL,HOOD-H/L POD [No Longer Available]
7072676
Unavailable
65
DECAL,POD,HD.-H/L. [No Longer Available] (400 Only)
7072523
Unavailable
66
PAD,W/S,LH,BLACK
5810437
Unavailable
66
PAD,W/S,RH,BLACK
5810438
$1.67
66
PAD, W/S, LH (400 Only)
5810414
Unavailable
66
PAD, W/S (400 Only)
5810415
Unavailable
67
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
68
LOGO,E/S,SILVER (500 Classic Only)
5431073
Unavailable
69
ADAPTER,DRIVE Substituted by 3280116
3280095
Unavailable
70
CABLE,SPEEDO.
3280094
$60.70
71
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
72
DECAL,STRIPE,HOOD ACCENT [No Longer Available] (500 Classic Only)
7072629
Unavailable
73
KNOB,TRIP ODOMETER
3280103
$3.83
74
DECAL,SPEC,('88-'91) [No Longer Available] (400 Only)
7072503
Unavailable
74
DECAL,SPEC,(500) [No Longer Available] (500 & 500 Classic Only)
7072611
Unavailable
74
DECAL,SPEC,(500) [No Longer Available] (500 & 500 Classic Only}
7072611
Unavailable
74
DECAL,SPEC.(650) [No Longer Available] (650 Only)
7072497
Unavailable
75
EMBLEM,CLASSIC INDY [No Longer Available] (500 Classic Only)
5431074
Unavailable
76
LOGO,CLASSIC '89 [No Longer Available] (500 Classic Only)
5431049
Unavailable
77
PINSTRIPE,RED,W/S (400 & 650 Only)
8330133
Unavailable
77
PR,MIRRORS,R.VIEW Substituted by 2870938
2870626
Unavailable
77
DECAL,2FT,BLUE PINSTRIPE (500 Only)
8330167
Unavailable
77
DECAL,W/S,500CLASSIC [No Longer Available] (500 Classic Only)
8330168
Unavailable
