ENGINE MOUNTING 650 Updated 10/88 (4915411541023A)

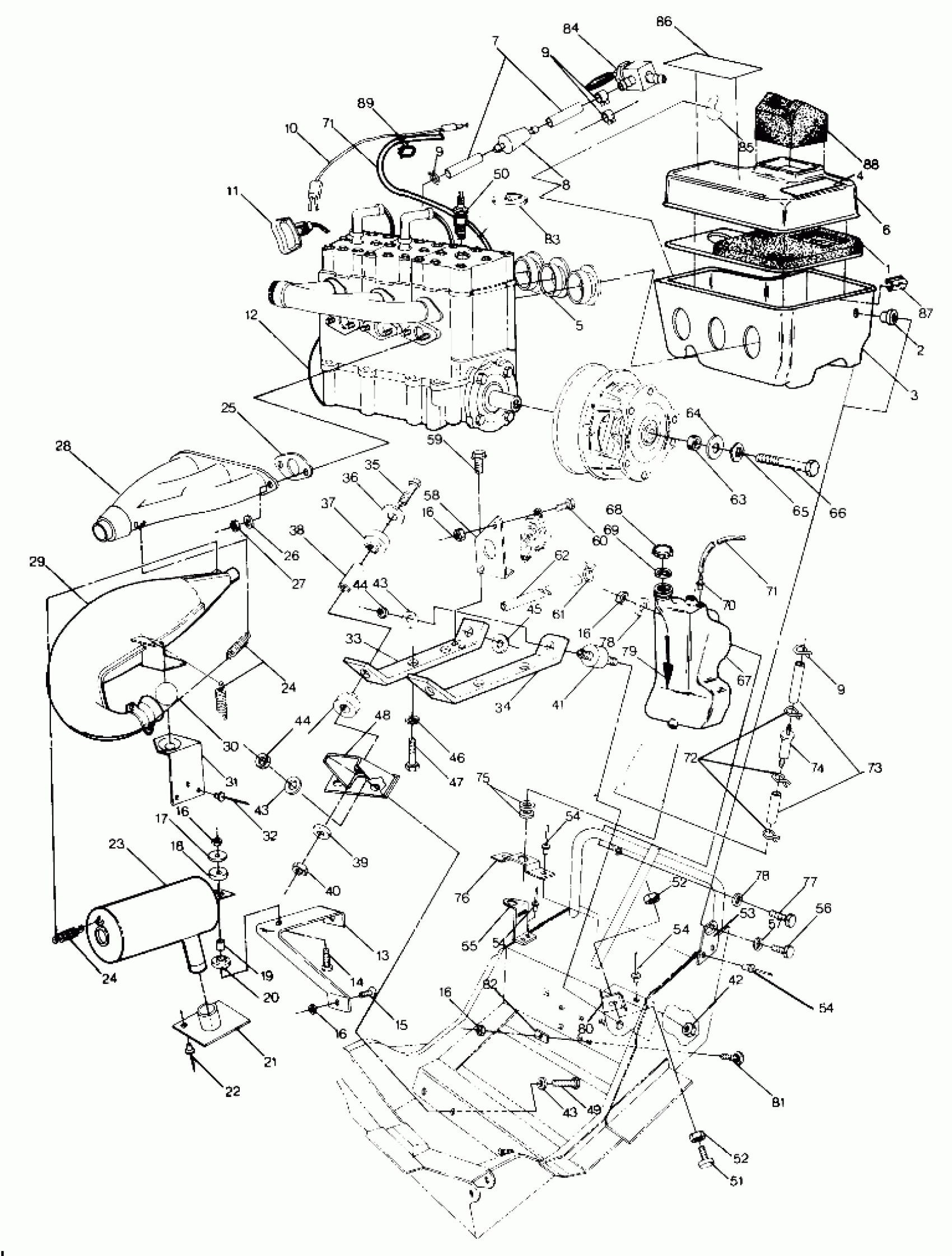

Polaris 400 - 0890759 ENGINE MOUNTING 650 Updated 10/88 (4915411541023A) Diagram
#
1
BAFFLE ASM.
1253102
$64.75
2
NUT-WELL(10)
7541923
$5.59
3
SILENCER [No Longer Available]
5430954
Unavailable
4
DECAL,COOLING SYSTEM [No Longer Available]
7072131
Unavailable
5
Boot
5410271
Unavailable
6
COVER, SILENCER
5430920
$61.99
7
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
8
FILTER FUEL,(10)
2530008
$4.84
9
CLAMP-HOSE(10)
7080134
Unavailable
9
CLAMP-HOSE(10)
7080134
Unavailable
9
CLAMP-HOSE(10)
7080134
Unavailable
10
CABLE-THROTTLE W/OIL
7080262
Unavailable
11
HANDLE-RECOIL
5430520
Unavailable
12
ENG.EC65PL-01 Substituted by 1211478
1211452
Unavailable
13
SUPPORT,MUFFLER,REAR [No Longer Available]
5220720
Unavailable
14
BOLT-CARRIAGE(10)
7512275
$3.99
15
BOLT(10)
7512193
$2.39
16
NUT-LOCK(10)
7542122
$1.49
16
NUT-LOCK(10)
7542122
$1.49
16
NUT-LOCK(10)
7542122
$1.49
16
NUT-LOCK(10)
7542122
$1.49
17
WASHER(10)
7558221
$2.39
18
WASHER,RUBBER
5410436
$1.59
19
BUSHING-RES. MT.
5010192
$6.39
20
DAMPENER
5410241
Unavailable
21
STINGER, OUTLET [No Longer Available]
1260485
Unavailable
22
RIVET(50)
7621431
$1.49
23
RESONATOR [No Longer Available]
1260528
Unavailable
24
SPRING, EXHAUST(10)
7042031
$5.65
24
SPRING, EXHAUST(10)
7042031
$5.65
25
GASKET,EXHAUST Substituted by 3084439
3082510
Unavailable
26
WASHER LOCK ,(10)
3080530
$3.19
27
NUT(10)
3080285
Unavailable
28
MANIFOLD WELD,BLK. Substituted by 1260477-029
1260477
Unavailable
29
MUFFLER [No Longer Available]
1260519
Unavailable
30
BALL-EXH.MT.
5430687
$13.19
31
SUPT., MUFFLER [No Longer Available]
1011582
Unavailable
32
RIVET(50)
7621429
$1.49
33
PLATE,ENG.,RH
5220705
$38.41
34
PLATE,ENG.,LH
5220704
Unavailable
35
SCREW(10)
7512533
$1.75
36
WASHER(10)
7555740
$1.59
37
MOUNT, ENGINE
5410390
Unavailable
38
SPACER, (MTR.MT.)
5332778
Unavailable
39
WASHER(10)
7555801
$3.99
40
NUT,FLEX LOC(10)
7542507
$3.99
41
MOUNT
3110022
Unavailable
42
NUT LOCK(10) Substituted by 7542411
7542415
Unavailable
43
WASHER(10) Substituted by 7555806
7555720
$0.79
43
WASHER(10) Substituted by 7555806
7555720
$0.79
43
WASHER(10) Substituted by 7555806
7555720
$0.79
44
NUT LOCK(10)
7542403
$3.99
44
NUT LOCK(10)
7542403
$3.99
45
WASHER(10)
7555721
$1.49
46
WASHER LOCK(10)
7553101
$3.99
47
BOLT(10)
7512539
$3.99
48
MOUNT, FRONT Substituted by 1011502-067
1011502
Unavailable
49
BOLT(10) Substituted by 7512457
7512491
Unavailable
50
SPARKPLUG(8)
3070165
$3.99
51
STOP
3110023
Unavailable
52
NUT, JAM(10)
7542432
$3.99
52
NUT, JAM(10)
7542432
$3.99
53
BRKT INTAKE SILENCER [No Longer Available]
5210928
Unavailable
54
RIVET Substituted by 7661638
7661625
$1.19
54
RIVET Substituted by 7661638
7661625
$1.19
54
RIVET Substituted by 7661638
7661625
$1.19
54
RIVET Substituted by 7661638
7661625
$1.19
55
BRKT,AIR SILENCER,BLK. Substituted by 5223973-067
5223973
Unavailable
56
SCREW(10)
7512279
$1.49
57
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
58
BRACKET Substituted by 5220418-067
5220418
Unavailable
59
BOLT(10)
7512232
$1.49
60
BOLT(10)
7512240
$3.99
61
HOSE CLAMP, RED
7080003
$1.49
62
HOSE,IMPULSE [No Longer Available]
5521132
Unavailable
63
BUSHING-.437 X.770 X.50
5430261
$7.19
64
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
65
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
66
BOLT(10)
7512565
$19.99
67
TANK, OIL
5430921
Unavailable
68
CAP-OIL TANK [No Longer Available]
5430594
Unavailable
69
GASKET-OIL CAP
5810141
$2.39
70
VENT-TANK
5430579
Unavailable
71
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
71
VENT LINE,1/8,BULK Substituted by 8360009-600
8360009
Unavailable
72
CLAMP-HOSE,(10)
7080236
$1.59
74
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
75
GROMMET RUBBER
5410021
Unavailable
76
BRACKET
5223985
Unavailable
77
SCREW(10)
7512116
Unavailable
78
WASHER,WROUGHT(10)
7558302
$1.59
78
WASHER,WROUGHT(10)
7558302
$1.59
79
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
80
LIMITER Substituted by 1011503-067
1011503
Unavailable
82
SPEED NUT(10)
7670021
$6.99
83
CAP, PRESSURE
2511155
Unavailable
84
VALVE,FUEL SHUT-OFF
7052039
Unavailable
85
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
86
DECAL,SPEC.(650) [No Longer Available]
7072497
Unavailable
87
CLIP, AIR BOX,(10)
7670055
$7.99
88
FOAM, INTAKE Substituted by 1253107
5810377
$36.41
89
CLIP(10)
7080278
$2.63
89
PLATE,AIR SILENCER
5850075
Unavailable
