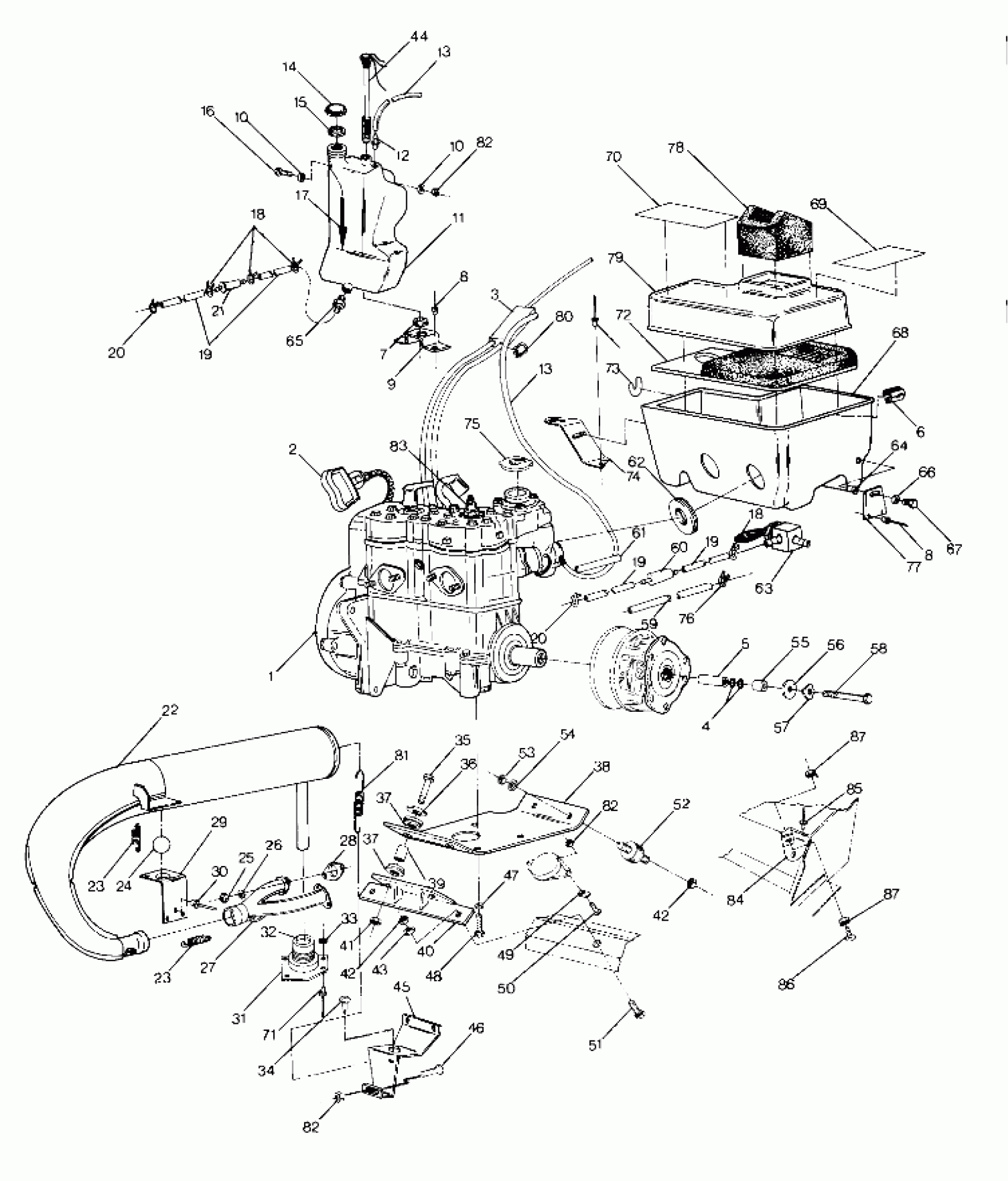

Polaris 400 - 0890759 ENGINE MOUNTING 500 and 500 Classic Updated 10/88 (4915411541021A) Diagram

ENG.EC50PL-02 [No Longer Available] (500 Classic Only)

1211457

Unavailable

ENG.EC50PL-01 [No Longer Available] (500 0nly)

1211456

Unavailable

HANDLE-RECOIL

5430520

Unavailable

CABLE, THROTTLE

7080373

Unavailable

O RING,(10)

5410507

$1.49

SPACER,CLUTCH BOLT

5020513

$44.99

GROMMET RUBBER

5410021

Unavailable

POP RIVET(50)

7621425

$1.49

POP RIVET(50)

7621425

$1.49

BRACKET

5223985

Unavailable

BRACKET

5223985

Unavailable

WASHER,WROUGHT(10)

7558302

$1.59

WASHER,WROUGHT(10)

7558302

$1.59

TANK, OIL (500 Only)

5430921

Unavailable

TANK, OIL (500 Classic Only)

5430997

Unavailable

VENT-TANK

5430579

Unavailable

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

CAP-OIL TANK [No Longer Available]

5430594

Unavailable

GASKET-OIL CAP

5810141

$2.39

SCREW(10)

7512116

Unavailable

DECAL, OIL LEVEL [No Longer Available]

7072160

Unavailable

CLAMP-HOSE,(10)

7080236

$1.59

CLAMP-HOSE,(10)

7080236

$1.59

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

CLAMP-HOSE(10)

7080134

Unavailable

CLAMP-HOSE(10)

7080134

Unavailable

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

MUFFLER, INDY 500

1260537

Unavailable

SPRING, EXHAUST(10)

7042031

$5.65

SPRING, EXHAUST(10)

7042031

$5.65

BALL-EXH.MT.

5430687

$13.19

NUT(10)

3080285

Unavailable

WASHER LOCK ,(10)

3080530

$3.19

MANIFOLD Substituted by 1260501-029

1260501

Unavailable

GASKET,EXHAUST Substituted by 3084439

3082510

Unavailable

SUPPORT, MUFFLER Substituted by 1011601-067

1011601

Unavailable

RIVET(50)

7621429

$1.49

HAT, EXHAUST Substituted by 5432465

5431058

Unavailable

Boot, Exhaust

5410502

$24.27

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

DAMPNER, VIB.

5410467

$8.79

SCREW(10)

7512533

$1.75

WASHER(10)

7555740

$1.59

MOUNT,RUBBER,ENGINE [No Longer Available]

5410523

Unavailable

MOUNT,RUBBER,ENGINE [No Longer Available]

5410523

Unavailable

PLATE,MOTOR MT.

5220684

Unavailable

SPACER

5332779

Unavailable

MOUNT, MOTOR Substituted by 1011587-067

1011587

Unavailable

NUT ,(10)

7542513

Unavailable

NUT LOCK(10) Substituted by 7542411

7542415

Unavailable

NUT LOCK(10) Substituted by 7542411

7542415

Unavailable

WASHER WROUGHT(10)

7558403

$4.79

SENSOR,OIL LEVEL,W/CONN. Substituted by 4040040 (500 Classic Only)

4040016

$72.84

BRKT,REAR MUFFLER Substituted by 5222153-067

5222153

Unavailable

BOLT(10)

7512193

$2.39

WASHER LOCK(10)

7553101

$3.99

BOLT(10)

7512539

$3.99

SPEED NUT(10)

7670021

$6.99

BOLT-CARRIAGE(10)

7512263

$3.99

BOLT(10) Substituted by 7512457

7512491

Unavailable

MOUNT

3110022

Unavailable

NUT LOCK(10)

7542403

$3.99

WASHER(10) Substituted by 7555806

7555720

$0.79

BUSHING-.437 X.770 X.50

5430261

$7.19

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

BOLT(10)

7512565

$19.99

HOSE,IMPULSE [No Longer Available]

5521132

Unavailable

FILTER FUEL,(10)

2530008

$4.84

FUEL LINE3/16ID-2FT. Substituted by 8450037-600

5521133

Unavailable

Boot

5410271

Unavailable

VALVE,FUEL SHUT-OFF

7052039

Unavailable

NUT-WELL(10)

7541923

$5.59

FITTING, OUTLET

7052042

$8.99

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

SCREW(10)

7512279

$1.49

SILENCER,INTAKE(DRILLED) Substituted by 5430955

5431112

Unavailable

DECAL,COOLING SYSTEM [No Longer Available]

7072131

Unavailable

DECAL,SPEC,(500) [No Longer Available]

7072611

Unavailable

POP RIVET(50)

7621418

$1.49

BAFFLE ASM.

1253102

$64.75

DECAL,SHUT-OFF VALVE [No Longer Available]

7072151

Unavailable

BRKT,AIR SILENCER,BLK. Substituted by 5223973-067

5223973

Unavailable

CAP, PRESSURE

2511155

Unavailable

HOSE CLAMP, RED

7080003

$1.49

BRKT INTAKE SILENCER [No Longer Available]

5210928

Unavailable

FOAM, INTAKE Substituted by 1253107

5810377

$36.41

COVER, SILENCER (500 Only)

5430920

$61.99

COVER,SILENCER(DRILLED) (500 Classic Only)

5431111

Unavailable

CLIP(10)

7080278

$2.63

SPRING-EXHAUST(10)

7042029

$4.84

NUT-LOCK(10)

7542122

$1.49

NUT-LOCK(10)

7542122

$1.49

NUT-LOCK(10)

7542122

$1.49

SPARKPLUG(8)

3070165

$3.99

BRACKET Substituted by 1011741-067

1011741

Unavailable

RIVET Substituted by 7661638

7661625

$1.19

STOP

3110023

Unavailable

NUT, JAM(10)

7542432

$3.99

NUT, JAM(10)

7542432

$3.99
