COOLING SYSTEM 500 and 500 Classic Updated 10/88 (4915411541026A)

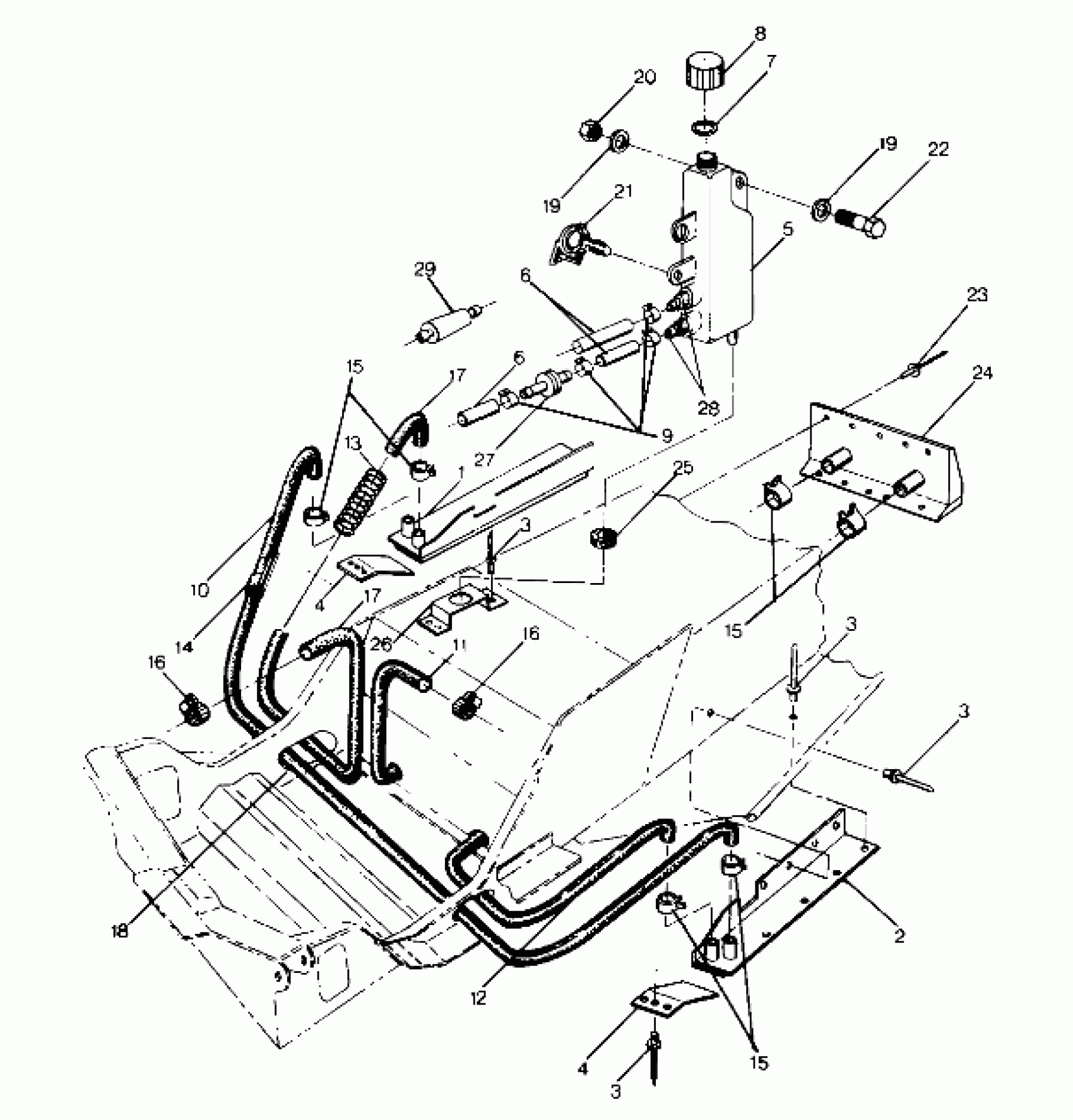

Polaris 400 - 0890759 COOLING SYSTEM 500 and 500 Classic Updated 10/88 (4915411541026A) Diagram
#
1
EXT,COOLING,LH
2511181
Unavailable
2
EXT,COOLING,RH
2511182
Unavailable
3
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
3
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
3
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
3
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
4
GUARD,COOLING EXT
5240101
Unavailable
4
GUARD,COOLING EXT
5240101
Unavailable
5
BOTTLE, OVERFLOW Substituted by 5431054
5430735
Unavailable
6
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
6
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
7
GASKET-OVERFLOW CAP
5810279
$2.41
8
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
9
CLAMP-HOSE(10)
7080134
Unavailable
10
HOSE-CROSSOVER
5410324
Unavailable
11
HOSE
5410398
Unavailable
12
HOSE-CROSSOVER
5410350
Unavailable
13
SPRING,HOSE RETAINER
7041079
$4.95
14
CLIP
7080277
$1.24
15
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
15
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
15
CLAMP-HOSE Substituted by 7080547
7080225
Unavailable
16
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
16
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
17
HOSE-INLET
5410323
Unavailable
17
HOSE-INLET
5410323
Unavailable
18
TRIM-EDGE Substituted by 5521131
5521091
Unavailable
19
WASHER,WROUGHT(10)
7558302
$1.59
19
WASHER,WROUGHT(10)
7558302
$1.59
20
NUT-LOCK(10)
7542122
$1.49
21
CLIP, PLASTIC(10)
4020139
$4.79
22
BOLT(10)
7512240
$3.99
23
RIVET Substituted by 7621429
7621620
Unavailable
24
EXT,COOLING,CTR Substituted by 2511187
2511183
Unavailable
25
GROMMET RUBBER
5410021
Unavailable
26
BRACKET
5223985
Unavailable
27
VALVE, CHECK
7052038
$10.51
28
FITTING, OUTLET
7052042
$8.99
29
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
