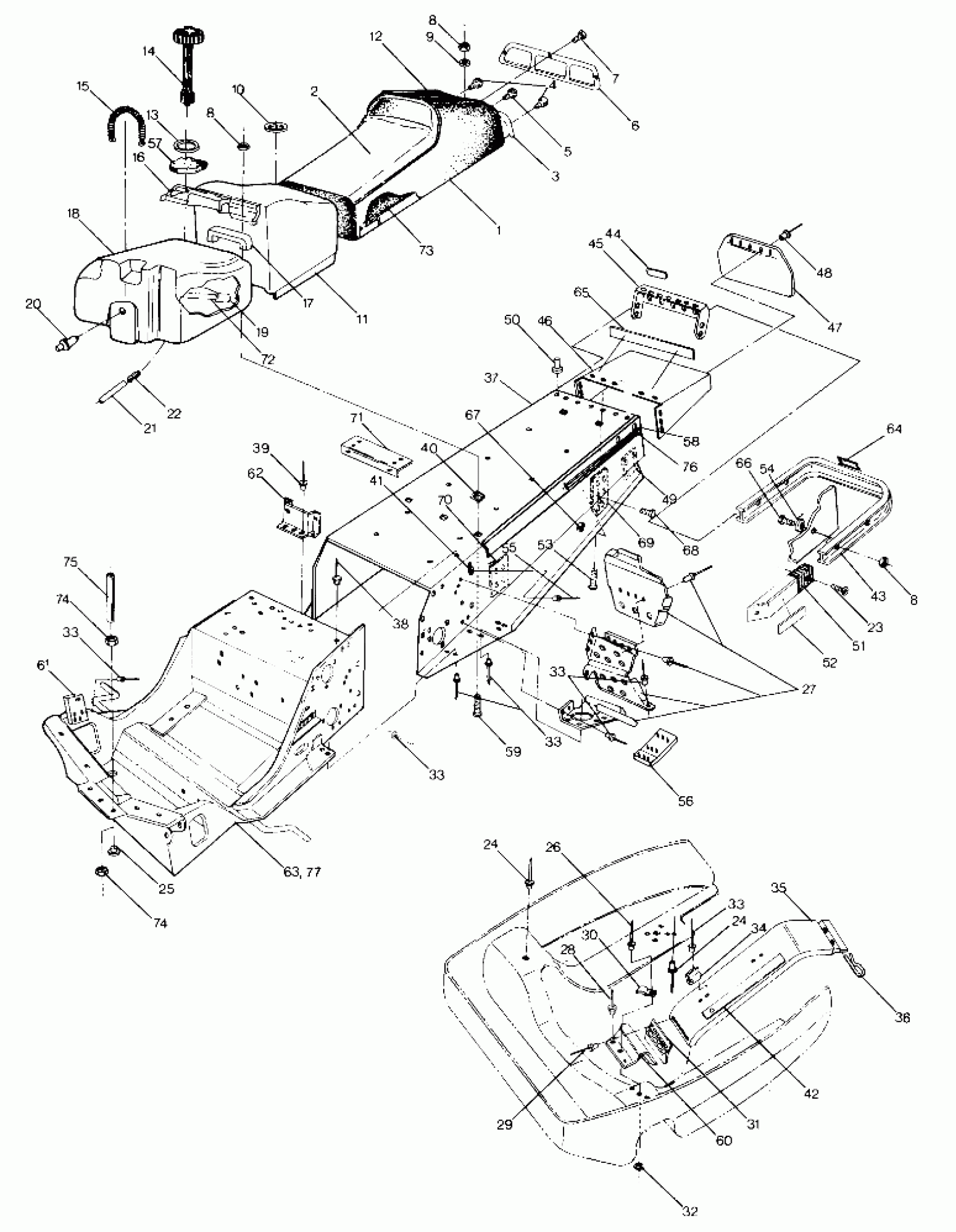

Polaris 400 - 0890759 CHASSIS AND SEAT 500 and 500 Classic (4915411541003A) Diagram

CUSHION,SEAT(CLASSIC'89) Substituted by 2200747 31

2681373

Unavailable

SEAT ASM,(INDY500) Substituted by 2200747 (Incl. 2-7,12,75) (500 Only)

2681385

Unavailable

COVER,SEAT(CLASSIC'89) Substituted by 2200738 (500 Classic Only)

2681374

Unavailable

COVER,SEAT(INDY500) Substituted by 2200738 (500 Only)

2681386

Unavailable

HOUSING,TAILLIGHT

5430425

Unavailable

HOUSING,TAILLIGHT

5430425

Unavailable

BULB TAILLIGHT(10)

4030015

$4.03

BULB, BRAKELIGHT

4030019

Unavailable

LENS,TAILLIGHT

5430423

Unavailable

SCREW(10)

7511840

Unavailable

NUT-LOCK(10)

7542122

$1.49

NUT-LOCK(10)

7542122

$1.49

NUT-LOCK(10)

7542122

$1.49

WASHER(10)

7558221

$2.39

GROMMET-GAS TANK

5430575

Unavailable

COVER,TANK(CLASSIC'89) [No Longer Available] (500 Classic Only)

2681375

Unavailable

COVER,TANK,(INDY 500) Substituted by 2200738 (500 Only)

2681384

Unavailable

BUCKLE&STRAP

2681290

$4.78

GASKET-GAS CAP Substituted by 5810513

5810142

Unavailable

GAUGE,GAS Substituted by 2511246

2511149

Unavailable

SPRING,TANK,(10)

7042020

$13.75

STRAP,GAS TANK Substituted by 5222330-067

5221722

Unavailable

CUSHION,TANK H.D.

5420126

Unavailable

TANK,GAS

2511150

Unavailable

FUELPICKUP,W/STRAINER

7052037

$12.94

FITTING - OUTLET(10)

7052023

$24.99

KIT-TANK VENT

2200190

Unavailable

VENT-TANK

5430579

Unavailable

SCREW(10)

7511863

$1.99

RIVET(50)

7621457

$1.49

RIVET(50)

7621457

$1.49

PLUG (500 Only)

7080288

Unavailable

POP RIVET(50)

7621402

$1.49

FOOTREST ASM,LH

2200250

Unavailable

FOOTREST ASM,RH

2200254

Unavailable

RIVET(50)

7621452

$1.49

RIVET, POP(50)

7621330

$1.49

CLIP, WIRING,(10) Substituted by 7080665

4020035

Unavailable

HINGE

5210728

Unavailable

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

CLIP, BELT Substituted by 5222769

5220817

Unavailable

GUARD,CLUTCH Substituted by 5240965

5230118

Unavailable

PIN,RETAINING,(10)

7080216

$9.70

TUNNEL, (500 SKS) Substituted by 1011806 (500 SKS Only w/1011694)

1011747

Unavailable

TUNNEL, (500) Substituted by 1011808

1011746

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

SPEED NUT(10)

7670021

$6.99

SNAP-MALE(10)

7080227

Unavailable

DECAL, WARNING [No Longer Available]

7072153

Unavailable

BUMPER, REAR Substituted by 5224334-067

5224334

Unavailable

BUMPER, (SKS) Substituted by 5224349-067 (500 SKS Only)

5224349

Unavailable

DECAL, TRACK Substituted by 7072872

7072132

Unavailable

PANEL,TUNNEL,BACK Substituted by 5220478-067

5220478

Unavailable

PANEL,CLOSE-OFF,REAR Substituted by 1011694-067 (500 SKS Only)

1011694

Unavailable

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

POP RIVET(50)

7621418

$1.49

WEARPLATE,TUNNEL

5222061

Unavailable

RIVET Substituted by 7661812

7661818

Unavailable

CAP, BUMPER Substituted by 5430930-070

5430930

Unavailable

REFLECTOR RED

2670070

$9.91

BOLT(10)

7512103

$3.19

WASHER(10)

7558301

$1.49

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

PLATE,TUNNEL,LH

5220634

Unavailable

PLATE,TUNNEL,RH

5220635

Unavailable

FOAM, FILLER

5810201

Unavailable

DECAL(47.5'')TUNNEL [No Longer Available]

7072078

Unavailable

BOLT(10)

7512193

$2.39

BRACKET, HINGE Substituted by 5241437

5220406

Unavailable

SUPT., MUFFLER [No Longer Available]

1011582

Unavailable

BRACKET Substituted by 5221932-067

5221932

Unavailable

BULKHEAD,(500) Substituted by 1011743-067 (500 Only)

1011743

Unavailable

DECAL(36.0'')R.BUMP. [No Longer Available] (500 Only)

7072653

Unavailable

DECAL,STRIPE,R.BUMPER [No Longer Available] (500 Classic Only)

7072623

Unavailable

DECAL, 500 SKS [No Longer Available] (500 SKS Only)

7072646

Unavailable

BOLT(10)

7512240

$3.99

NUT-HEX-3/8-16 A ZTB NYL (500 SKS Only)

7542451

$1.49

BOLT(10) (500 SKS Only)

7515432

Unavailable

BRKT,R.SUSP,RH MTG. Substituted by 1011750-067

1011667

Unavailable

BRKT,R.SUSP,LH MTG. Substituted by 1011749-067

1011666

Unavailable

BRKT. Substituted by 5220542-067

5220542

Unavailable

BRKT, TOOL BOX

5220973

Unavailable

GAS LINE, (FT.) [Cannot Purchase as Assembly]

8450003

Unavailable

SEAT BUN [No Longer Available]

5430707

Unavailable

PALNUT(10) (500 Classic Only)

7670031

Unavailable

PALNUT(10) (500 Classic Only)

7670031

Unavailable

SPACER (500 Classic Only)

5332896

Unavailable

DECAL,BUMPER EXT.SILVER [No Longer Available] (500 Classic Only)

7072541

Unavailable

BULKHEAD,(500CLASSIC) Substituted by 1011743-067 (500 Classic Only)

1011745

Unavailable
