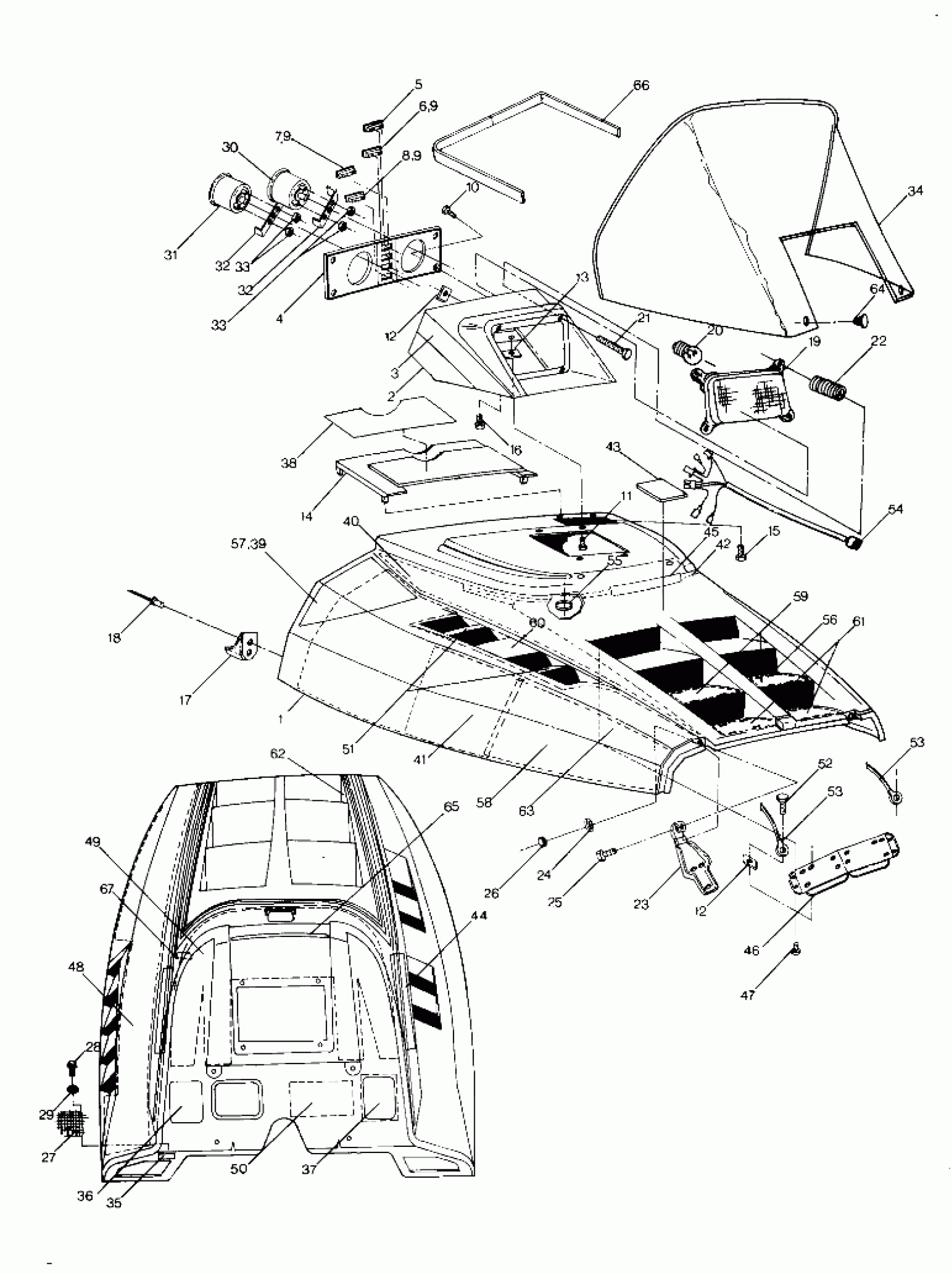

Polaris 400 - 0880759 HOOD Classic, 400 and 650 (4914131413003A) Diagram
#
-
HOOD,BLACK,'88(650) Substituted by 5431194-070 (650)
5430929
Unavailable
-
HOOD, CLASSIC [No Longer Available] (Classic)
5430938
Unavailable
1
HOOD,WHITE,'88(400) Substituted by 5431194-133 (400)
5430937
Unavailable
2
HOUSING,INST.BOTTOM Substituted by 5430922-070
5430922
Unavailable
3
HOUSING,INST.TOP Substituted by 5430923-070
5430923
Unavailable
4
BEZEL, INST.
5430924
Unavailable
5
INDICATOR'TEMP'WARN.
4040011
$32.37
6
INDICATOR'LOW-OIL'WARN. (Classic)
4040012
Unavailable
7
INDICATOR'HI-BEAM'WARN. (Classic)
4040013
Unavailable
8
INDICATOR,'ACC'WARN. (Classic)
4040014
Unavailable
9
PLUG,INDIC.HOLE (400 & 650)
5430967
$5.65
9
PLUG,INDIC.HOLE (400 & 650)
5430967
$5.65
9
PLUG,INDIC.HOLE (400 & 650)
5430967
$5.65
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
SCREW, SEMS(10)
7512283
$3.99
12
NUT, SPEED(10)
7670056
Unavailable
12
NUT, SPEED(10)
7670056
Unavailable
13
NUT, SPEED(10)
7670057
$1.49
14
COVER,AIR INTAKE Substituted by 5431195-070 (650)
5430928
Unavailable
14
PANEL,AIR,INTAKE Substituted by 5431195-133 (Classic & 400)
5430965
Unavailable
15
SCREW(10)
7511840
Unavailable
16
SCREW(10)
7512009
Unavailable
17
CUP, HOOD LATCH,(10)
5430733
$4.84
18
RIVET(50)
7621334
$1.49
19
HEADLIGHT ASM. Substituted by 4032038 (Incl. 20-22)
2431006
Unavailable
20
BULB,QUARTZ.H/L,INDY
2870448
$24.99
20
BULB, H/L
4030028
$29.99
21
SCREW, ADJ.(10)
4032003
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
HINGE ASM,HD. Substituted by 2635005-067
2635005
Unavailable
24
WASHER,WROUGHT(10)
7558302
$1.59
25
BOLT-CARRIAGE(10)
7512263
$3.99
26
NUT-LOCK(10)
7542122
$1.49
27
SCREEN, HOOD Substituted by 5211117-067
5211117
Unavailable
28
SCREW(10)
7511861
Unavailable
29
RIVET BURR(50)
7555756
$2.99
30
SPEEDOMETER (Incl. 32-33)
3280092
$111.99
31
TACHOMETER (Incl. 32-33) (Classic & 400)
3280093
Unavailable
31
TACHOMETER,3 CYL. Substituted by 3280192 (Incl. 32-33) (650)
3280096
Unavailable
32
BRACKET
3280098
Unavailable
32
BRACKET
3280098
Unavailable
33
NUT
3280063
Unavailable
33
NUT
3280063
Unavailable
34
WINDSHIELD(W/RED STRIPE) Substituted by 5431144 (400 & 650)
5430964
$134.99
34
WINDSHIELD,GOLD STRIPE Substituted by 5431037 (Classic)
5430996
Unavailable
35
LABEL, 'U.S.A.'
7073024
Unavailable
36
DECAL,OP.CAUT,(ENG.) [No Longer Available] (400)
7072489
Unavailable
36
DECAL,OPER.CAUT.ENG. [No Longer Available] (650)
7072492
Unavailable
36
DECAL,CAUTION,(ENG.) [No Longer Available] (Classic)
7072495
Unavailable
37
DECAL,OP.CAUT,(FR.) [No Longer Available] (400)
7072490
Unavailable
37
DECAL,OPER.CAUT.(FR.) [No Longer Available] (650)
7072493
Unavailable
37
DECAL,CAUTION,(FR.) [No Longer Available] (Classic)
7072496
Unavailable
38
DECAL,DASH WARNING [No Longer Available] (650)
7072491
Unavailable
38
DECAL,DASH WARNING [No Longer Available] (400)
7072488
Unavailable
38
DECAL,DASH WARNING [No Longer Available] (Classic)
7072494
Unavailable
39
DECAL,HOOD,LH,LOWER [No Longer Available] (400)
7072460
Unavailable
39
DECAL,HOOD,RH LOWER [No Longer Available] (400)
7072461
Unavailable
39
DECAL,LH,INDY650 [No Longer Available] (650)
7072466
Unavailable
39
DECAL,RH,INDY650 [No Longer Available] (650)
7072467
Unavailable
40
DECAL,LH HD,CLASSIC [No Longer Available] (Classic)
7072458
Unavailable
40
DECAL,RH HD,CLASSIC [No Longer Available] (Classic)
7072459
Unavailable
40
DECAL,LH,HD.SIDE [No Longer Available] (650)
7072462
Unavailable
40
DECAL,RH,HD.SIDE [No Longer Available] (650)
7072463
Unavailable
40
DECAL,HOOD,LH,UPPER [No Longer Available] (400)
7072482
Unavailable
40
DECAL,HOOD,RH UPPER [No Longer Available] (400)
7072483
Unavailable
41
TAPE,FOIL,FOAM
5810405
Unavailable
42
DECAL,LH HD.TOP,CLASSIC [No Longer Available] (Classic)
7072456
Unavailable
42
DECAL,RH HD.TOP,CLASSIC [No Longer Available] (Classic)
7072457
Unavailable
42
STRIPE,TOP HD.,LH [No Longer Available] (400)
7072484
Unavailable
42
STRIPE,TOP HD.,RH [No Longer Available] (400)
7072485
Unavailable
43
EMBLEM'CLASSIC'INDY [No Longer Available] (Classic)
5430980
Unavailable
44
LOGO,CLASSIC INDY [No Longer Available] (Classic)
5430982
Unavailable
45
DECAL,POLARIS,BLACK [No Longer Available] (650)
7072464
Unavailable
46
PLATE,RE-INF.,(HD.)
5222105
$49.51
48
FOAM, HOOD, RH
5810375
Unavailable
48
FOAM, HOOD, LH
5810374
Unavailable
49
FOAM, HOOD, CTR
5810376
Unavailable
50
FOAM, HOOD
5810389
Unavailable
51
TAPE,FOIL
5810395
Unavailable
52
SCREW(10)
7511989
Unavailable
53
CABLE,HD.RETAINER (Classic & 400)
7080360
$24.27
53
CABLE,HOOD RETAINER (650)
7080368
$10.51
53
CABLE,HD.RETAINER (Classic & 400)
7080360
$24.27
53
CABLE,HOOD RETAINER (650)
7080368
$10.51
54
HARNESS,H/L.&INST. [No Longer Available] (400 & 650)
2460261
Unavailable
54
HARNESS,H/L.&INST. [No Longer Available] (Classic)
2460260
Unavailable
55
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
56
Staple, 5/32
-------
Unavailable
57
KIT,DECAL,'88 400 [No Longer Available] (Incl. 35-40, 42) (400)
2200260
Unavailable
57
KIT,DECAL,'88 650 [No Longer Available] (Incl. 35-40, 45) (650)
2200261
Unavailable
57
KIT,DECAL,'88CLASSIC [No Longer Available] 31
2200281
Unavailable
58
TAPE,FOIL,FOAM
5810407
Unavailable
59
TAPE,FOIL,LH
5810393
Unavailable
59
TAPE,FOIL,RH
5810394
Unavailable
61
TAPE,FOIL
5810397
Unavailable
62
TAPE,FOIL,LOUVER,PIPE SIDE
5810404
Unavailable
63
TAPE,FOIL,FOAM
5810406
Unavailable
64
CLIP-PLASTIC(10) Substituted by 7621505
7670041
Unavailable
65
DECAL,POD,HD.-H/L. [No Longer Available] (Classic & 400)
7072523
Unavailable
66
PAD, W/S, LH
5810414
Unavailable
66
PAD, W/S
5810415
Unavailable
67
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
