FRONT SUSPENSION AND SKI Classic, 400 and 650 (4914131413007A)

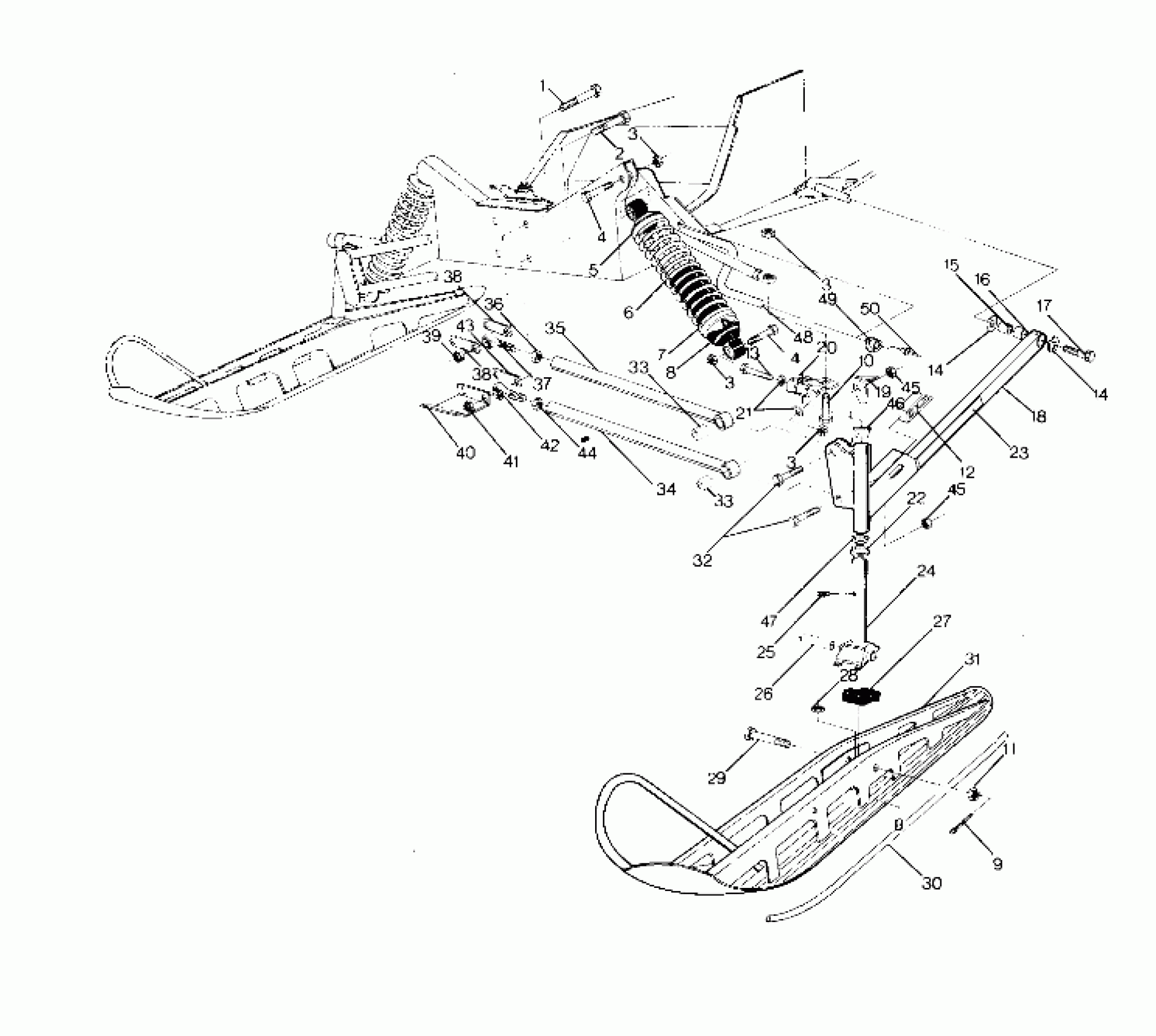

Polaris 400 - 0880759 FRONT SUSPENSION AND SKI Classic, 400 and 650 (4914131413007A) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
4
BOLT(10)
7515415
$1.49
4
BOLT(10)
7515415
$1.49
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COIL,RED,IFS Substituted by 7041194-093
7041193
Unavailable
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
SHOCK,FR.SUSP.
7041144
Unavailable
9
PIN-COTTER(10)
7661205
$1.49
10
BOLT(10)
7512404
$3.99
11
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
12
SLIDE-SWAYBAR
5410384
Unavailable
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE,TRAILING ARM
5010187
Unavailable
16
PIVOT-TRAILING ARM
5410382
Unavailable
17
BOLT(10)
7512557
$7.60
18
ARM-TRAILING RH Substituted by 1822052-067
1822052
Unavailable
18
ARM-TRAILING LH Substituted by 1822053-067
1822053
Unavailable
19
STOP,STRNG,LH,BLK. Substituted by 5220237-067
5220237
Unavailable
19
STOP,STRNG,RH,BLK. Substituted by 5220238-067
5220238
Unavailable
20
ARM, STEERING Substituted by 5220326-067
5220326
Unavailable
21
WASHER(10) Substituted by 7555806
7555720
$0.79
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
DECAL,IFS,SILVER [No Longer Available] (400 & 650)
7072468
Unavailable
23
DECAL,GOLD,IFS [No Longer Available] (Classic)
7072469
Unavailable
24
SPINDLE,GREASABLE Substituted by 5130919-067
6230055
Unavailable
25
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
26
BUSHING,PIVOT,(10)
5010158
$19.99
27
STOP-RUBBER
5521094
Unavailable
28
NUT-5/16-18 NYLOK-Y
7542324
$1.49
29
BOLT(10)
7515462
$8.79
30
SKAG,SHORT(20) (All except 650 SKS)
1820267
$23.99
30
SKAG,CARBIDE,TRAIL E/S Substituted by 2870693 (650 SKS Only)
1820266
Unavailable
31
SKI, INDY(SWED) Substituted by 1820332-067
1820258
Unavailable
32
BOLT(10) Substituted by 7515492
7512410
Unavailable
33
BUSHING-RADIUS ROD,(10)
5010127
$7.99
33
BUSHING-RADIUS ROD,(10)
5010127
$7.99
34
ROD, RADIUS Substituted by 1822055-067 (Trail Special)
1822055
Unavailable
35
ROD, RADIUS Substituted by 1822054-067 (Trail Special)
1822054
Unavailable
36
NUT JAM(10)
7542520
$2.39
37
ROD END RH
7060126
Unavailable
38
STRAP-SPACER
5220178
$1.49
38
STRAP-SPACER
5220178
$1.49
39
NUT, LOCK,(10)
7542503
$10.39
40
BRACE, PAN Substituted by 5223997-067
5223997
Unavailable
41
NUT FLEX,(10)
7542703
Unavailable
42
ROD END
7060127
Unavailable
43
STRAP-SPACER BOTTOM
5220227
Unavailable
44
NUT-JAM(10)
7542711
$2.39
45
NUT LOCK(10) Substituted by 7542411
7542415
Unavailable
45
NUT LOCK(10) Substituted by 7542411
7542415
Unavailable
46
BUSHING-FLANGE
3573909
$2.39
47
WASHER SPECIAL(10)
7556509
$1.59
48
SWAY BAR Substituted by 5224240-067 (Trail Special)
5224240
Unavailable
49
BUSHING-SWAYBAR
5410383
Unavailable
50
RIVET(50)
7621433
$1.49
