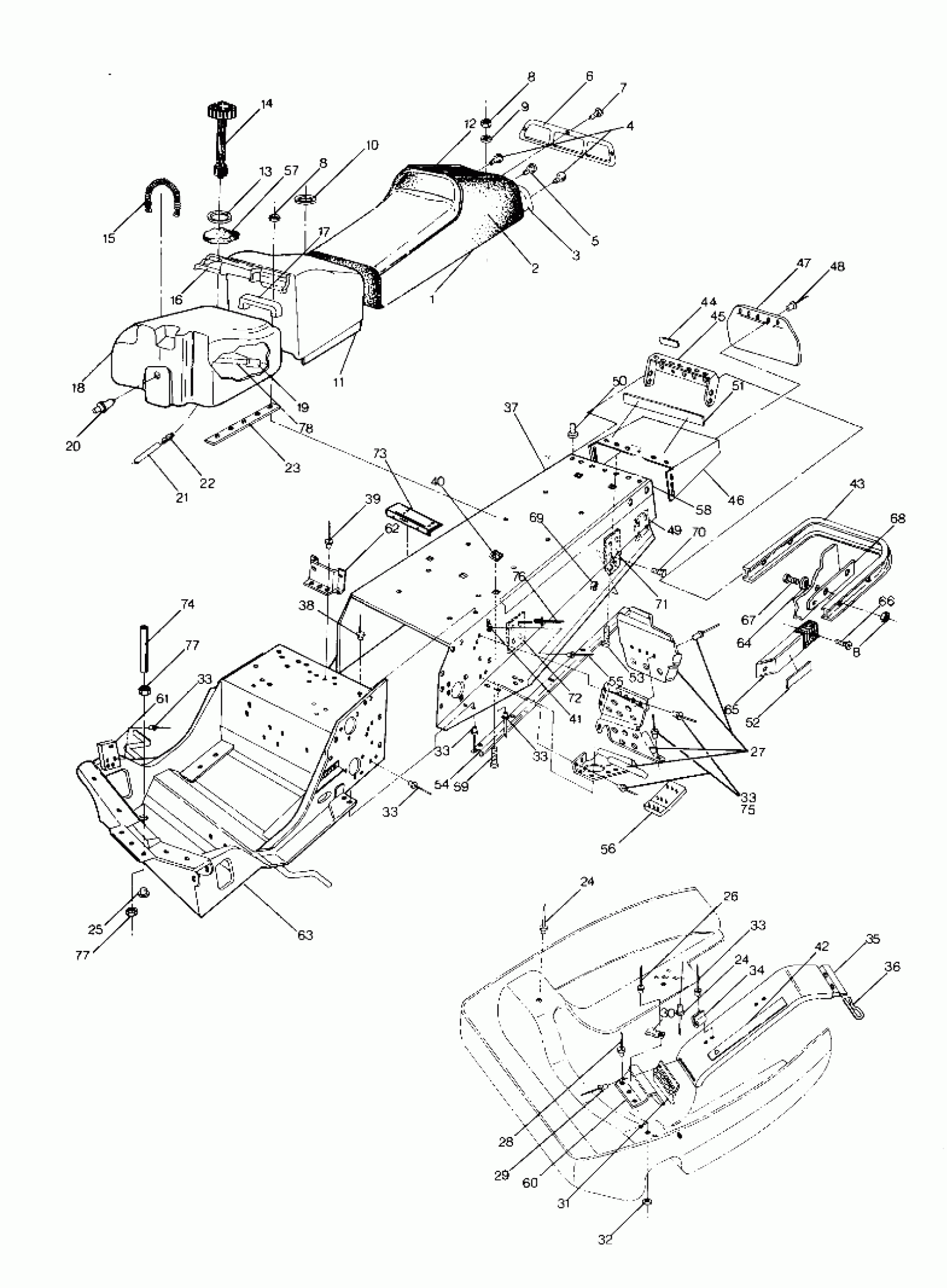

Polaris 400 - 0880759 CHASSIS AND SEAT Classic, 400 and 650 (4914131413001A) Diagram

CUSHION,SEAT,'88(400) Substituted by 2200747 (Incl. 2-7) (400)

2681323

Unavailable

CUSHION,SEAT,'88CLASSIC Substituted by 2200747 (Incl. 2-7) (Classic)

2681326

Unavailable

CUSHION,SEAT,'88(650) (Incl. 2-7) (650)

2681329

Unavailable

COVER,SEAT Substituted by 2200738 (650)

2681330

Unavailable

COVER,SEAT,'88(400) Substituted by 2200738 (400)

2681324

Unavailable

COVER,SEAT,'88CLASSIC Substituted by 2200738 (Classic)

2681327

Unavailable

HOUSING,TAILLIGHT

5430425

Unavailable

BULB TAILLIGHT(10)

4030015

$4.03

BULB, BRAKELIGHT

4030019

Unavailable

LENS,TAILLIGHT

5430423

Unavailable

SCREW(10)

7511840

Unavailable

NUT-LOCK(10)

7542122

$1.49

NUT-LOCK(10)

7542122

$1.49

NUT-LOCK(10)

7542122

$1.49

WASHER(10)

7558221

$2.39

GROMMET-GAS TANK

5430575

Unavailable

COVER,TANK,'88(400) [No Longer Available] (400)

2681325

Unavailable

COVER,TANK,'88CLASSIC [No Longer Available] (Classic)

2681328

Unavailable

COVER,TANK,'88(650) [No Longer Available] (650)

2681331

Unavailable

BUCKLE&STRAP

2681290

$4.78

GASKET-GAS CAP Substituted by 5810513

5810142

Unavailable

GAUGE,GAS Substituted by 2511246

2511149

Unavailable

SPRING,TANK,(10)

7042020

$13.75

STRAP,GAS TANK Substituted by 5222330-067

5221722

Unavailable

CUSHION,TANK H.D.

5420126

Unavailable

TANK,GAS

2511150

Unavailable

FUELPICKUP,W/STRAINER

7052037

$12.94

FITTING - OUTLET(10)

7052023

$24.99

KIT-TANK VENT

2200190

Unavailable

VENT-TANK

5430579

Unavailable

PAD-GAS TANK

5810063

$4.95

RIVET(50)

7621457

$1.49

RIVET(50)

7621457

$1.49

PLUG

7080288

Unavailable

POP RIVET(50)

7621402

$1.49

FOOTREST ASM,LH (400 & 650)

2200250

Unavailable

FOOTREST ASM,RH (400 & 650)

2200254

Unavailable

FOOTREST ASM, LH [No Longer Available] (Classic)

2200269

Unavailable

FOOTREST ASM, RH [No Longer Available] (Classic)

2200270

Unavailable

RIVET(50)

7621452

$1.49

RIVET, POP(50)

7621330

$1.49

CLIP, WIRING,(10) Substituted by 7080665

4020035

Unavailable

HINGE

5210728

Unavailable

WASHER,13/64X1/2X18GA,FL-Y

7558212

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

RIVET(50)

7621429

$1.49

CLIP, BELT Substituted by 5222769

5220817

Unavailable

GUARD,CLUTCH Substituted by 5240965 (400 & 650)

5230118

Unavailable

GUARD,CLUTCH(400 CL.) Substituted by 2251388 (Classic)

5230119

Unavailable

PIN,RETAINING,(10) (400 & 650)

7080216

$9.70

PIN Substituted by 7080216 (Classic)

7080361

Unavailable

TUNNEL,(400&650) Substituted by 1011804 (400 & 650)

1011664

Unavailable

TUNNEL ASM.(400SKS) (400 SKS Only w/1011694)

1011676

Unavailable

TUNNEL ASM.(650SKS) Substituted by 1011676 (650 SKS Only w/1011694)

1011695

Unavailable

TUNNEL, GOLD [No Longer Available] (Classic)

1011691

Unavailable

RIVET, (MONOBOLT) Substituted by 7661637 (650)

7661620

Unavailable

POP RIVET(50)

7621323

$1.49

SPEED NUT(10)

7670021

$6.99

SNAP-MALE(10)

7080227

Unavailable

DECAL, WARNING [No Longer Available]

7072153

Unavailable

BUMPER, REAR Substituted by 5224334-067

5224334

Unavailable

BUMPER, (SKS) Substituted by 5224349-067 (400 SKS & 650 SKS Only)

5224349

Unavailable

DECAL, TRACK Substituted by 7072872

7072132

Unavailable

PANEL,TUNNEL,BACK Substituted by 5220478-067 (400 & 650)

5220478

Unavailable

PANEL,BACK,GOLD [No Longer Available] (Classic)

5220927

Unavailable

PANEL,CLOSE-OFF,REAR Substituted by 1011694-067 (400 SKS & 650 SKS Only)

1011694

Unavailable

FLAP, SNOW,SILVER Substituted by 5410394-1106 (400 & 650)

5410394

$121.02

FLAP, SNOW, GOLD Substituted by 5410394 (Classic)

5410392

$121.02

POP RIVET(50)

7621418

$1.49

WEARPLATE,TUNNEL (400 & 650)

5222061

Unavailable

PLATE, WEAR (Classic)

5220945

Unavailable

RIVET Substituted by 7661812 (400 & 650)

7661818

Unavailable

RIVET,(50) [No Longer Available] (Classic)

7661821

Unavailable

DECAL [No Longer Available] (400 SKS & 650 SKS Only)

7072414

Unavailable

REFLECTOR RED

2670070

$9.91

BOLT(10)

7512103

$3.19

STRIP-WEAR (650)

5510130

Unavailable

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

PLATE,TUNNEL,LH

5220634

Unavailable

PLATE,TUNNEL,RH

5220635

Unavailable

FOAM, FILLER

5810201

Unavailable

DECAL(47.5'')TUNNEL [No Longer Available]

7072078

Unavailable

BOLT(10)

7512193

$2.39

BRACKET, HINGE Substituted by 5241437 (400 & 650)

5220406

Unavailable

BRACKET, HINGE (Classic)

5220932

Unavailable

SUPPORT, MUFFLER Substituted by 1011601-067

1011601

Unavailable

BRACKET Substituted by 5221932-067

5221932

Unavailable

BULKHEAD, (400) [No Longer Available] (400)

1011613

Unavailable

BULKHEAD,(600/650) (650)

1011614

Unavailable

BULKHEAD Substituted by 1011613 (Classic)

1011690

Unavailable

WASHER(10)

7558301

$1.49

CAP, BUMPER Substituted by 5430930-070

5430930

Unavailable

SCREW-SEMS(10)

7511848

$3.99

BOLT(10)

7512240

$3.99

SPACER,R.BUMPER [No Longer Available]

5211109

Unavailable

NUT-HEX-3/8-16 A ZTB NYL (400 SKS/650 SKS Only)

7542451

$1.49

BOLT(10) Substituted by 7515494 (400 SKS/650 SKS Only)

7515482

Unavailable

BRKT,R.SUSP,RH MTG. Substituted by 1011750-067

1011667

Unavailable

BRKT,R.SUSP,LH MTG. Substituted by 1011749-067

1011666

Unavailable

BRKT. Substituted by 5220542-067

5220542

Unavailable

BRKT, TOOL BOX

5220973

Unavailable

TUBE,DRAIN BATTERY [No Longer Available] (Classic)

5332405

Unavailable

RIVET [No Longer Available] (Classic)

7661823

Unavailable

RIVET,(50) [No Longer Available] (Susp. Pads) (Classic)

7661821

Unavailable

PALNUT(10) (Classic)

7670031

Unavailable

PALNUT(10) (Classic)

7670031

Unavailable

GAS LINE, (FT.) [Cannot Purchase as Assembly]

8450003

Unavailable
