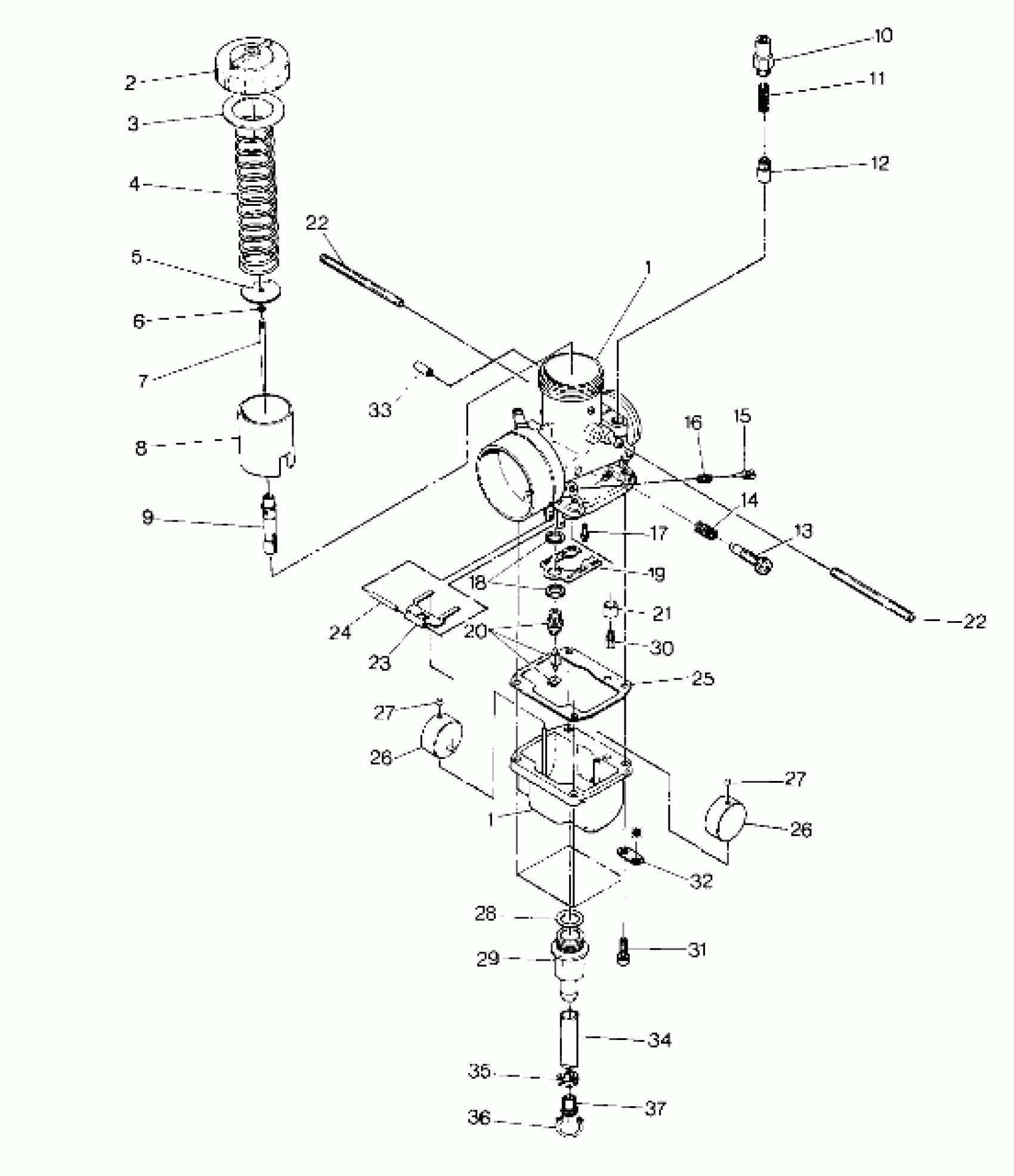

Polaris 400 - 0880759 CARBURETOR 650 (4914131413042A) Diagram
#
Description
Price
1
CARB. ASM. (Incl. 2-37)
3130389
Unavailable
1
CARB. ASM. (Incl. 2-37)
3130389
Unavailable
2
TOP (Incl. 3)
3130061
Unavailable
3
GASKET
-------
Unavailable
4
SPRING,THROTTLE Substituted by 3130444
3130334
Unavailable
5
PLATE, THROTTLE
3130054
$6.46
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
NEEDLE,JET,(6F9-3)
3130378
Unavailable
8
VALVE,THROTTLE,(3.0)
3130352
Unavailable
9
JET,NEEDLE,Q-2
3130165
Unavailable
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR Substituted by 3130011
3130233
Unavailable
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#50(10) Substituted by 3130629
3130069
$7.27
18
WASHER(10)
3130047
$4.84
19
PLATE
3130243
Unavailable
20
VALVE ASM,NEEDLE Substituted by 3130643
3130046
$56.65
21
RING,CARB
3130232
Unavailable
22
HOSE Substituted by 3130241
3081868
Unavailable
22
HOSE Substituted by 3130241
3081868
Unavailable
23
ARM,FLOAT
3130048
Unavailable
24
PIN, FLOAT Substituted by 3130235
3130240
$8.89
25
GASKET,FLOAT CHAMBER
3130236
$12.13
26
FLOAT ASM
3130021
$40.46
26
FLOAT ASM
3130021
$40.46
27
CAP,(10)
3130237
$4.03
27
CAP,(10)
3130237
$4.03
28
O RING
3130239
Unavailable
29
NIPPLE Substituted by 5020476
3130387
$10.56
30
JET,MAIN,HX.HD#260(10)
3130129
$7.27
31
SCREW
3130056
$3.19
32
PLATE
3130242
Unavailable
33
CAP,VACUUM FIT
3130379
$6.63
34
FUEL LINE-50FT.PKG. Substituted by 8450003-1525 (Cut to Fit)
2870563
Unavailable
35
CLAMP-HOSE,(10)
7080236
$1.59
36
CLAMP,PUSH-IN(10) [No Longer Available]
7080343
Unavailable
37
RIVET, (PLUG)(50)
7661912
Unavailable
