CHASSIS AND SEAT Sport, Trail, 400 and 600 (4912701270001A)

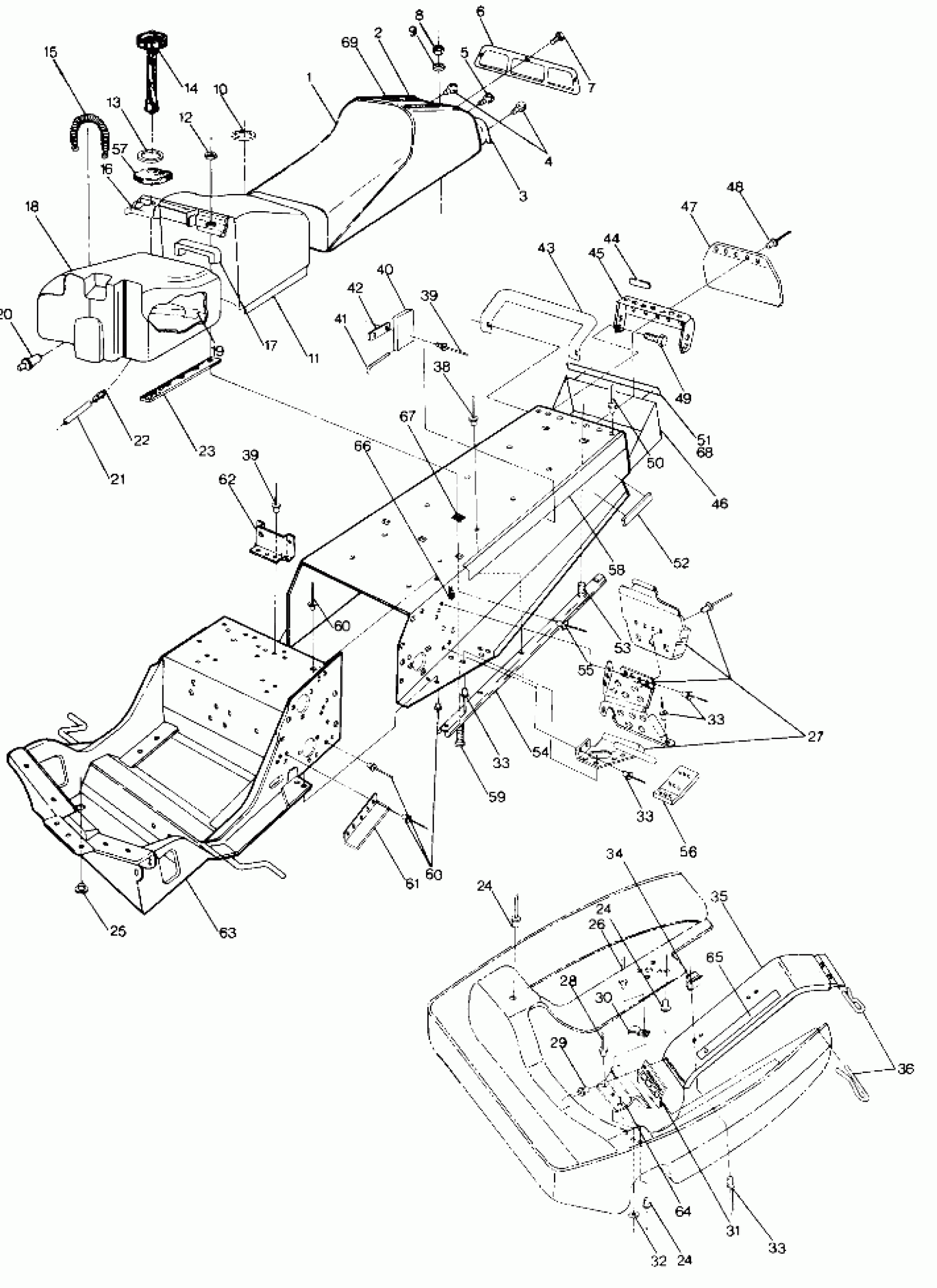

Polaris 400 - 0870759 CHASSIS AND SEAT Sport, Trail, 400 and 600 (4912701270001A) Diagram
#
-
SEAT ASM,(400&600) [No Longer Available] (Incl. 2-7) (400, 600)
2681278
Unavailable
-
SEAT ASM,(SPORT) Substituted by 2200747 (Incl. 2-7) (Sport)
2681281
Unavailable
1
SEAT ASM,(TRAIL) Substituted by 2200748 (Incl. 2-7) (Trail)
2681273
Unavailable
2
COVER,SEAT,(TRAIL) Substituted by 2200739 (Trail)
2681274
Unavailable
2
COVER,SEAT, (600) Substituted by 2681330 (400, 600)
2681279
Unavailable
2
COVER,SEAT,(SPORT) Substituted by 2200738 (Sport)
2681282
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB TAILLIGHT(10)
4030015
$4.03
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
GROMMET-GAS TANK
5430575
Unavailable
11
COVER,TANK,(TRAIL) Substituted by 2200739 (Trail)
2681272
Unavailable
11
COVER,TANK,(400) (400)
2681277
Unavailable
11
COVER,TANK,(600) [No Longer Available] (600)
2681280
Unavailable
11
COVER,TANK,(SPORT) Substituted by 2200738 (Sport)
2681283
Unavailable
13
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
14
GAUGE,GAS Substituted by 2511246
2511149
Unavailable
15
SPRING,TANK,(10)
7042020
$13.75
16
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
17
CUSHION,TANK H.D.
5420126
Unavailable
18
TANK,GAS (Incl. 19-22)
2511150
Unavailable
19
FUELPICKUP,W/STRAINER
7052037
$12.94
20
FITTING - OUTLET(10)
7052023
$24.99
21
KIT-TANK VENT
2200190
Unavailable
22
VENT-TANK
5430579
Unavailable
23
PAD-GAS TANK
5810063
$4.95
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
25
PLUG
7080288
Unavailable
26
POP RIVET(50)
7621402
$1.49
27
FOOTREST ASM,LH
2200250
Unavailable
27
FOOTREST ASM,RH
2200254
Unavailable
28
RIVET(50)
7621452
$1.49
29
RIVET, POP(50)
7621330
$1.49
30
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
31
HINGE (Sport, Trail)
5211047
$3.49
31
HINGE (400, 600)
5210728
Unavailable
32
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
34
CLIP, BELT Substituted by 5222769 (400, 600)
5220817
Unavailable
35
FOOTREST ASM,RH
2200254
Unavailable
35
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
36
PIN,RETAINING,(10)
7080216
$9.70
36
PIN, FRONT (Sport, Trail)
7080311
Unavailable
38
RIVET Substituted by 7661638 (600)
7661625
$1.19
39
POP RIVET(50) (Sport, Trail)
7621323
$1.49
39
POP RIVET(50) (Sport, Trail)
7621323
$1.49
40
BELT,SEAT (Trail)
7080322
Unavailable
41
WIRE-SEAT-BELT (Trail)
5223864
Unavailable
42
PLATE-SEAT BELT (Trail)
5210842
Unavailable
43
BUMPER-REAR [No Longer Available]
5224228
Unavailable
43
BUMPER, REAR [No Longer Available] 37
5224313
Unavailable
44
DECAL, TRACK Substituted by 7072872
7072132
Unavailable
45
PANEL-BACK [No Longer Available]
5220714
Unavailable
46
PANEL, BACK [No Longer Available] 37
5220767
Unavailable
47
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
48
RIVET(50)
7621460
$1.49
49
SCREW(10)
7512252
Unavailable
50
POP RIVET(50)
7621425
$1.49
51
DECAL [No Longer Available] (400 SKS Only) (400)
7072414
Unavailable
52
REFLECTOR RED
2670070
$9.91
53
BOLT(10)
7512103
$3.19
54
STRIP-WEAR (600)
5510130
Unavailable
55
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
56
PLATE,TUNNEL,LH
5220634
Unavailable
56
PLATE,TUNNEL,RH
5220635
Unavailable
57
FOAM, FILLER
5810201
Unavailable
58
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
59
BOLT(10)
7512193
$2.39
61
GUARD
5223789
Unavailable
62
BRACKET Substituted by 5221932-067
5221932
Unavailable
63
BULKHEAD, (TRAIL) (TRAIL)
1011612
Unavailable
63
BULKHEAD,(SPORT>) (Sport)
1011615
Unavailable
63
BULKHEAD, (400) [No Longer Available] (400)
1011613
Unavailable
63
BULKHEAD,(600/650) (600)
1011614
Unavailable
64
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
65
DECAL, WARNING [No Longer Available]
7072153
Unavailable
66
SNAP-MALE(10)
7080227
Unavailable
67
SPEED NUT(10)
7670021
$6.99
68
DECAL [No Longer Available] (Trail SKS Only) (Trail)
7072416
Unavailable
69
BUCKLE&STRAP (TRAIL)
2681291
Unavailable
69
BUCKLE&STRAP (Sport, 400, 600)
2681290
$4.78
