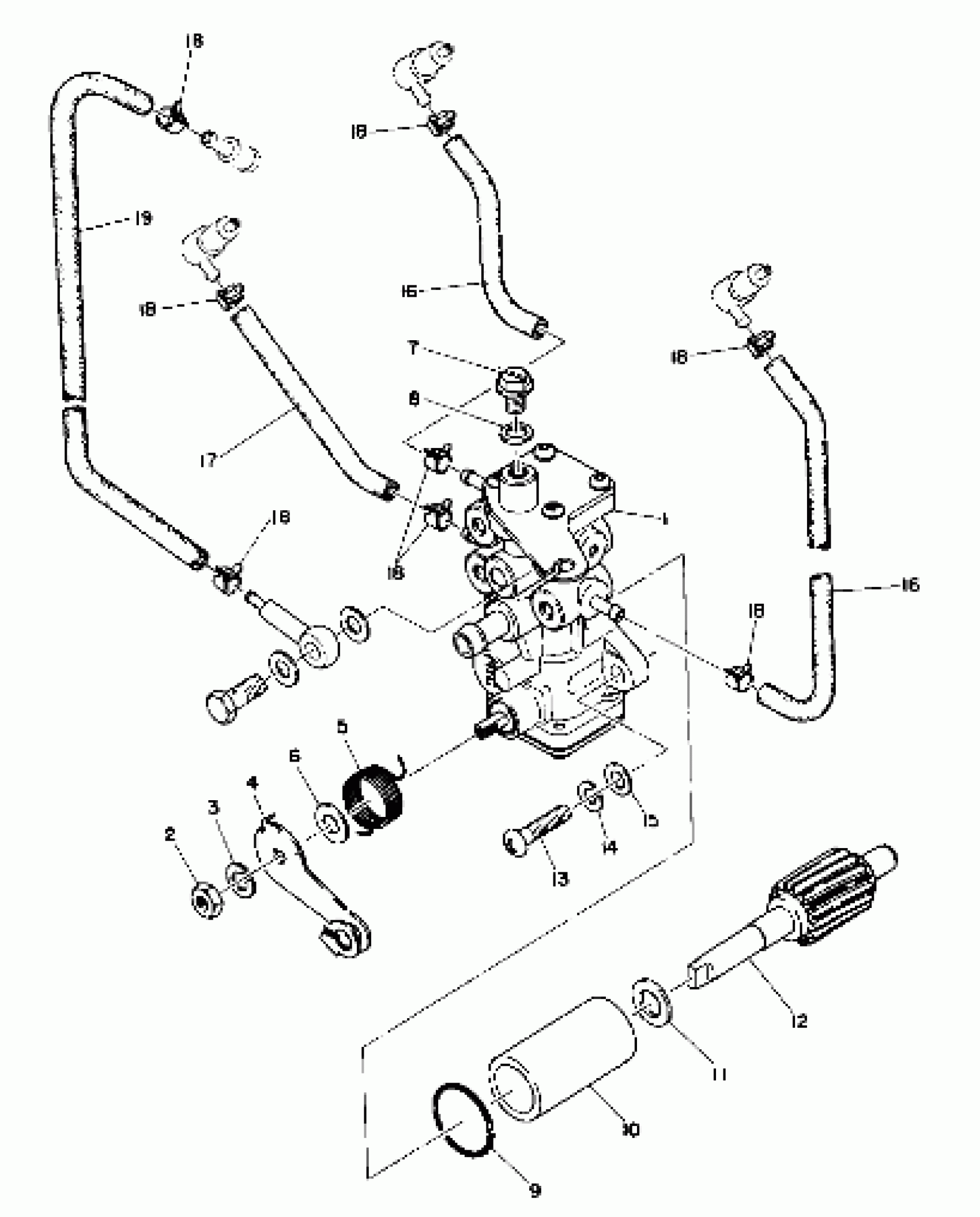

Polaris 400 - 0860759 Oil Pump (600 and 600 LE) (4910941094047A) Diagram
#
Description
Price
1
PUMP, OIL (Incl. 2-9)
3083484
$129.99
2
NUT(10)
3083120
$3.19
3
WASHER-SPRING(10)
3083121
$299.99
4
LEVER, CONTROL
3083485
Unavailable
5
SPRING-RETURN
3083123
Unavailable
6
COLLAR, CAMSHAFT Substituted by 3083445
3083404
Unavailable
7
SCREW-AIR VENT
3083125
Unavailable
8
PACKING(10)
3083126
$4.03
9
O RING
3083127
Unavailable
10
BUSHING(OIL PUMP)
3083353
$31.99
11
SPACER
3083130
$1.59
12
GEAR,SMALL,OIL PUMP
3083131
$89.99
13
SCREW Substituted by 3083774
3083132
Unavailable
14
WASHER SPRING(10)
3083133
Unavailable
15
WASHER Substituted by 3083774
3083134
Unavailable
16
PIPE, VINYL Substituted by 3083488
3083486
Unavailable
16
PIPE, VINYL Substituted by 3083488
3083486
Unavailable
17
PIPE, VINYL Substituted by 3083488
3083487
Unavailable
18
CLAMP-HOSE,(10)
3083141
$1.49
18
CLAMP-HOSE,(10)
3083141
$1.49
18
CLAMP-HOSE,(10)
3083141
$1.49
18
CLAMP-HOSE,(10)
3083141
$1.49
18
CLAMP-HOSE,(10)
3083141
$1.49
18
CLAMP-HOSE,(10)
3083141
$1.49
18
CLAMP-HOSE,(10)
3083141
$1.49
19
PIPE#3,VINYL(L=315) Substituted by 3085591
3083488
Unavailable
