Front Suspension and Ski (600 LE) (4910941094011A)

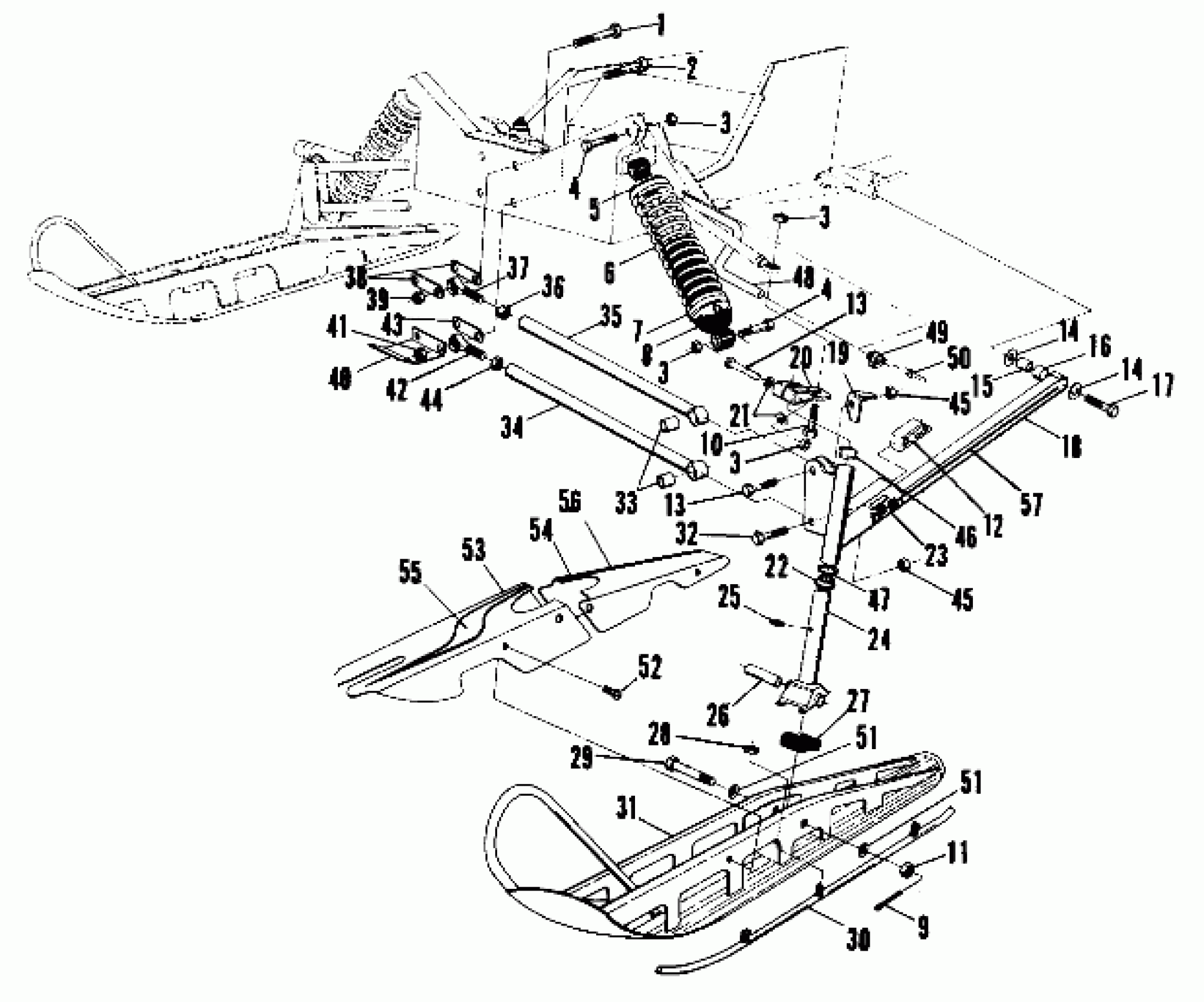

Polaris 400 - 0860759 Front Suspension and Ski (600 LE) (4910941094011A) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
3
NUT-LOCK(10)
7542439
$1.49
4
BOLT(10)
7515415
$1.49
4
BOLT(10)
7515415
$1.49
5
RETAINER-TOP
5220225
$10.39
6
SPRING, FRONT(SE)
7041153
Unavailable
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
SHOCK,FRONT(SE) [No Longer Available]
7041152
Unavailable
9
PIN-COTTER(10)
7661205
$1.49
10
BOLT(10)
7512404
$3.99
11
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
12
SLIDE-SWAYBAR
5410384
Unavailable
13
BOLT Substituted by 7515491
7515433
$1.59
13
BOLT Substituted by 7515491
7515433
$1.59
14
WASHER,(SE),(10) [No Longer Available]
7555741
Unavailable
14
WASHER,(SE),(10) [No Longer Available]
7555741
Unavailable
15
TUBE,TRAILING ARM
5010187
Unavailable
16
PIVOT-TRAILING ARM
5410382
Unavailable
17
BOLT(10)
7512557
$7.60
18
ARM,TRAIL,LH,(SE) [No Longer Available]
1822058
Unavailable
18
ARM,TRAIL,RH,(SE) [No Longer Available]
1822059
Unavailable
19
STOP, STRG.LH(SE) [No Longer Available]
5220427
Unavailable
19
STOP, STRG. (SE) Substituted by 5220238-067
5220437
Unavailable
20
ARM, STRG.(SE) Substituted by 5220326-067
5220429
Unavailable
21
WASHER(10) Substituted by 7555806
7555720
$0.79
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
DECAL,IFS BLUE [No Longer Available]
7072220
Unavailable
24
SPINDLE,GREASABLE Substituted by 5130919-067
6230055
Unavailable
25
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
26
BUSHING,PIVOT,(10)
5010158
$19.99
27
STOP-RUBBER
5521094
Unavailable
28
NUT-5/16-18 NYLOK-Y
7542324
$1.49
29
BOLT(10)
7515465
Unavailable
30
SKAG, 3 BOLT Substituted by 1820261
1820249
Unavailable
31
SKI, (L.E.) Substituted by 1820332-067
1820252
Unavailable
32
BOLT(10) Substituted by 7515492
7512410
Unavailable
33
BUSHING-RADIUS ROD,(10)
5010127
$7.99
34
ROD,LOWER RADIUS,CHROME [No Longer Available]
1822056
Unavailable
35
ROD,UPPER RADIUS,CHROME [No Longer Available]
1822057
Unavailable
36
NUT JAM(10)
7542520
$2.39
37
ROD END RH
7060126
Unavailable
38
STRAP-SPACER
5220178
$1.49
39
NUT ,(10)
7542513
Unavailable
40
BRACE, PAN Substituted by 5223997-067
5223997
Unavailable
41
NUT FLEX,(10)
7542703
Unavailable
42
ROD END
7060127
Unavailable
43
STRAP-SPACER BOTTOM
5220227
Unavailable
44
NUT-JAM(10)
7542711
$2.39
45
NUT LOCK(10)
7542411
$3.19
45
NUT LOCK(10)
7542411
$3.19
46
BUSHING-FLANGE
3573909
$2.39
47
WASHER SPECIAL(10)
7556509
$1.59
48
BAR,SWAY,BLACK Substituted by 5224237-067
5224237
Unavailable
49
BUSHING-SWAYBAR
5410383
Unavailable
50
RIVET(50)
7621433
$1.49
51
WASHER(10) Substituted by 7555806
7555803
Unavailable
51
WASHER(10) Substituted by 7555806
7555803
Unavailable
52
SCREW,SKI COVER (SE),(10) [No Longer Available]
7510501
Unavailable
53
COVER,SKI,FRONT(SE) [No Longer Available]
5220534
Unavailable
54
COVER,SKI,REAR(SE) [No Longer Available]
5220535
Unavailable
55
DESC NOT_AVAILABLE
7072215
Unavailable
55
DESC NOT_AVAILABLE
7072216
Unavailable
56
DESC NOT_AVAILABLE
7072217
Unavailable
56
DESC NOT_AVAILABLE
7072218
Unavailable
57
DECAL,STRUT, L.E. [No Longer Available]
7072270
Unavailable
