Engine Mounting (600 and 600 LE) (4910941094023A)

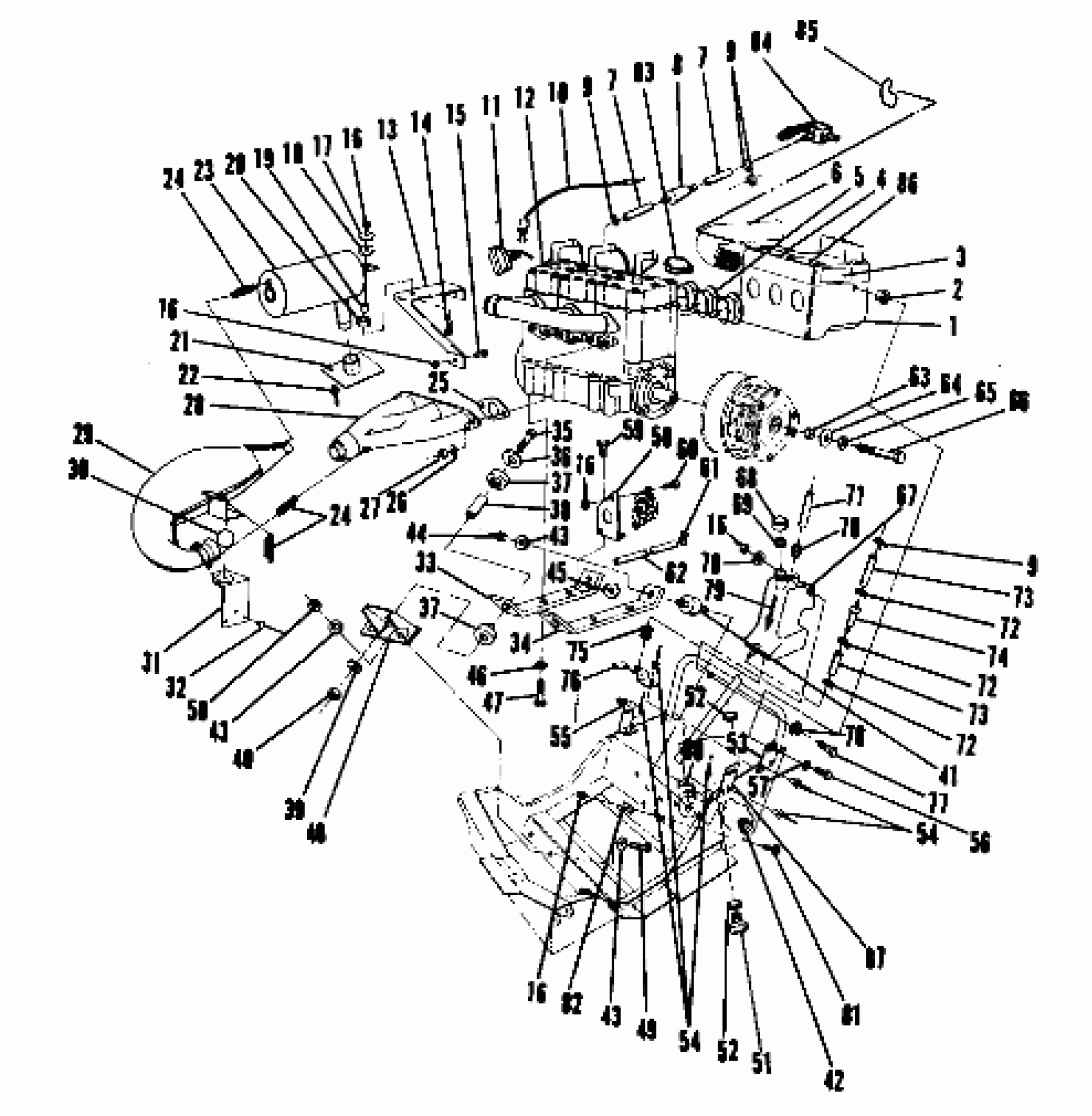

Polaris 400 - 0860759 Engine Mounting (600 and 600 LE) (4910941094023A) Diagram
#
1
SILENCER Substituted by 1253101
1253090
Unavailable
2
NUT-WELL(10)
7541923
$5.59
3
DECAL,SILENCER [No Longer Available] (600 LE)
7072087
Unavailable
3
DECAL-INTAKE [No Longer Available] (600)
7071861
Unavailable
4
DECAL,COOLING SYSTEM [No Longer Available] (600 LE)
7072131
Unavailable
4
DECAL, WARNING [No Longer Available] (600)
7071964
Unavailable
5
Boot
5410271
Unavailable
6
HOSE-INLET
5410251
Unavailable
7
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
7
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
8
FILTER FUEL,(10)
2530008
$4.84
9
CLAMP-HOSE(10)
7080134
Unavailable
9
CLAMP-HOSE(10)
7080134
Unavailable
9
CLAMP-HOSE(10)
7080134
Unavailable
10
CABLE-THROTTLE W/OIL
7080262
Unavailable
11
HANDLE-RECOIL
5430520
Unavailable
12
ENG. EC60PL-02 [No Longer Available]
1211440
Unavailable
13
SUPPORT, MUFFLER [No Longer Available]
5220394
Unavailable
14
BOLT-CARRIAGE(10)
7512275
$3.99
15
BOLT(10)
7512193
$2.39
16
NUT-LOCK(10)
7542122
$1.49
16
NUT-LOCK(10)
7542122
$1.49
16
NUT-LOCK(10)
7542122
$1.49
16
NUT-LOCK(10)
7542122
$1.49
16
NUT-LOCK(10)
7542122
$1.49
17
WASHER(10)
7558221
$2.39
18
WASHER,RUBBER
5410436
$1.59
19
BUSHING-RES. MT.
5010192
$6.39
20
DAMPENER
5410241
Unavailable
21
STINGER, OUTLET [No Longer Available]
1260485
Unavailable
22
RIVET(50)
7621431
$1.49
23
RESONATOR Substituted by 1260528
1260480
Unavailable
24
SPRING RETURN EXHAUST Substituted by 7042031
3081078
Unavailable
24
SPRING RETURN EXHAUST Substituted by 7042031
3081078
Unavailable
25
GASKET,EXHAUST Substituted by 3084439
3082510
Unavailable
26
WASHER LOCK ,(10)
3080530
$3.19
27
NUT(10)
3080285
Unavailable
28
MANIFOLD WELD,BLK. Substituted by 1260477-029
1260477
Unavailable
29
MUFFLER [No Longer Available]
1260490
Unavailable
30
BALL-EXH.MT.
5430687
$13.19
31
BRACKET [No Longer Available]
5220486
Unavailable
32
RIVET(50)
7621429
$1.49
33
MOUNT,MTR,RH,(600) [No Longer Available]
5220450
Unavailable
34
MOUNT, MTR.,LH,(600)
5220449
Unavailable
35
SCREW(10)
7512533
$1.75
36
WASHER(10)
7555740
$1.59
37
MOUNT, ENGINE
5410390
Unavailable
37
MOUNT, ENGINE
5410390
Unavailable
38
SPACER, (MTR.MT.)
5332778
Unavailable
39
WASHER(10)
7555801
$3.99
40
NUT,FLEX LOC(10)
7542507
$3.99
40
NUT,FLEX LOC(10)
7542507
$3.99
41
MOUNT
3110022
Unavailable
42
NUT LOCK(10) Substituted by 7542411
7542415
Unavailable
43
WASHER(10) Substituted by 7555806
7555720
$0.79
43
WASHER(10) Substituted by 7555806
7555720
$0.79
43
WASHER(10) Substituted by 7555806
7555720
$0.79
44
NUT LOCK(10)
7542403
$3.99
45
WASHER(10)
7555721
$1.49
46
WASHER LOCK(10)
7553101
$3.99
47
BOLT(10)
7512539
$3.99
49
BOLT(10) Substituted by 7512457
7512491
Unavailable
51
STOP
3110023
Unavailable
52
NUT, JAM(10)
7542432
$3.99
52
NUT, JAM(10)
7542432
$3.99
53
BRKT INTAKE SILENCER [No Longer Available]
5210928
Unavailable
54
RIVET Substituted by 7661638
7661625
$1.19
54
RIVET Substituted by 7661638
7661625
$1.19
55
BRKT,AIR SILENCER,BLK. Substituted by 5223973-067
5223973
Unavailable
56
SCREW(10)
7512279
$1.49
57
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
58
BRACKET Substituted by 5220418-067
5220418
Unavailable
59
BOLT(10)
7512232
$1.49
60
BOLT(10)
7512240
$3.99
61
HOSE CLAMP, RED
7080003
$1.49
62
HOSE,IMPULSE [No Longer Available]
5521132
Unavailable
63
BUSHING-.437 X.770 X.50
5430261
$7.19
64
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
65
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
66
BOLT(10)
7512565
$19.99
67
TANK,OIL Substituted by 5430921
5430695
Unavailable
68
CAP-OIL TANK [No Longer Available]
5430594
Unavailable
69
GASKET-OIL CAP
5810141
$2.39
70
VENT-TANK
5430579
Unavailable
71
KIT-TANK VENT
2200190
Unavailable
72
CLAMP-HOSE,(10)
7080236
$1.59
72
CLAMP-HOSE,(10)
7080236
$1.59
72
CLAMP-HOSE,(10)
7080236
$1.59
74
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
75
GROMMET RUBBER
5410021
Unavailable
76
BRACKET
5223985
Unavailable
77
SCREW(10)
7512116
Unavailable
78
WASHER,WROUGHT(10)
7558302
$1.59
78
WASHER,WROUGHT(10)
7558302
$1.59
79
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
80
LIMITER Substituted by 1011503-067
1011503
Unavailable
82
SPEED NUT(10)
7670021
$6.99
83
CAP, PRESSURE
2511155
Unavailable
84
VALVE,FUEL SHUT-OFF
7052039
Unavailable
85
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
86
DECAL, SPEC. [No Longer Available]
7072264
Unavailable
87
BRACKET,INT.SILENCER [No Longer Available]
5210977
Unavailable
