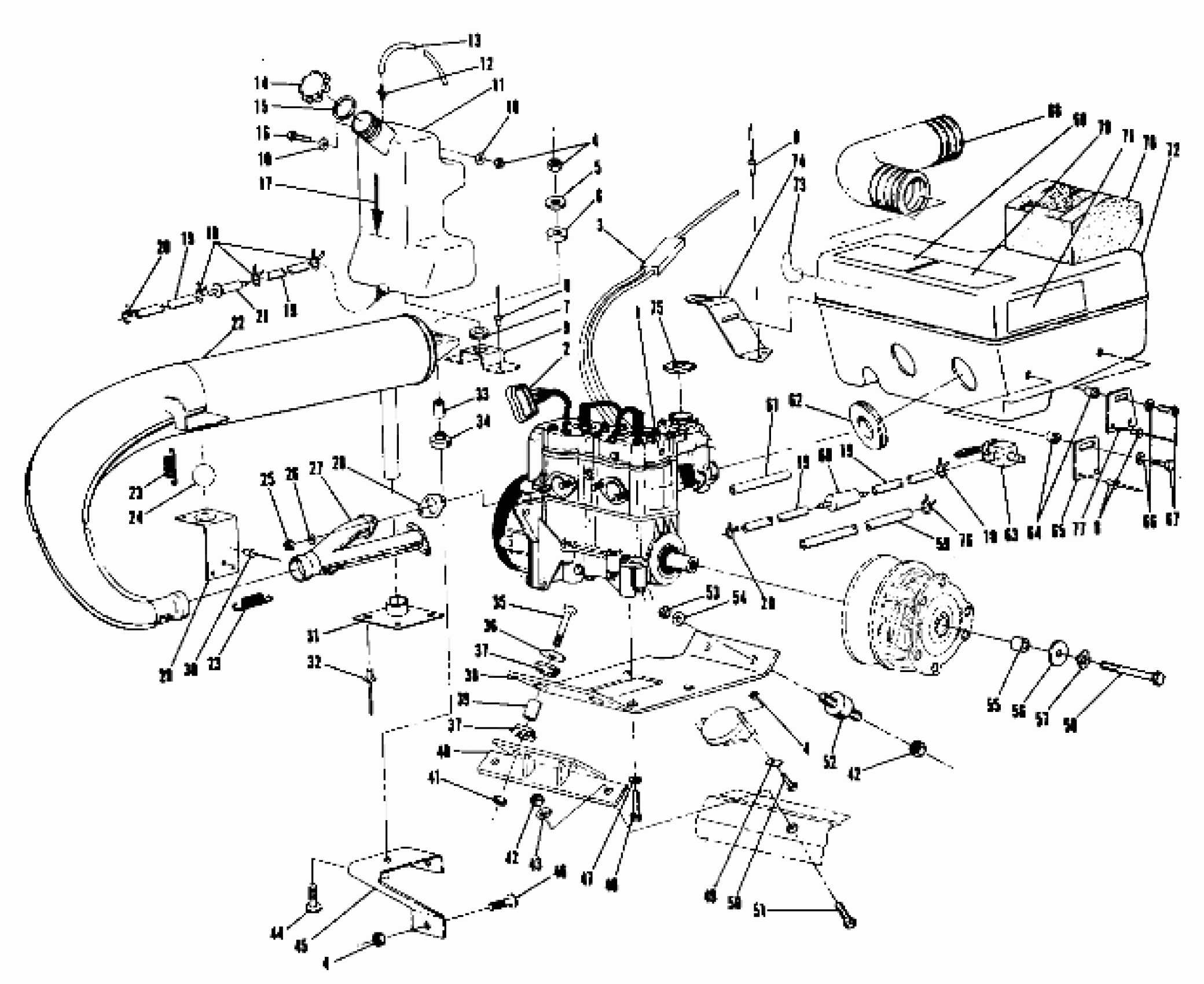

Polaris 400 - 0860759 Engine Mounting (400) (4910941094021A) Diagram
#
1
ENG. EC40PL-02 [No Longer Available]
1211438
Unavailable
2
HANDLE-RECOIL
5430520
Unavailable
3
CABLE,THROTTLE [No Longer Available]
7080258
Unavailable
4
NUT-LOCK(10)
7542122
$1.49
4
NUT-LOCK(10)
7542122
$1.49
4
NUT-LOCK(10)
7542122
$1.49
5
WASHER(10)
7558221
$2.39
6
WASHER,RUBBER
5410436
$1.59
7
GROMMET RUBBER
5410021
Unavailable
8
POP RIVET(50)
7621425
$1.49
8
POP RIVET(50)
7621425
$1.49
8
POP RIVET(50)
7621425
$1.49
9
BRACKET
5223985
Unavailable
10
WASHER,WROUGHT(10)
7558302
$1.59
10
WASHER,WROUGHT(10)
7558302
$1.59
11
TANK,OIL Substituted by 5430921
5430695
Unavailable
12
VENT FITTING,TANK Substituted by 5430579
5430669
Unavailable
13
KIT-TANK VENT
2200190
Unavailable
14
CAP-OIL TANK [No Longer Available]
5430594
Unavailable
15
GASKET-OIL CAP
5810141
$2.39
16
SCREW(10)
7512116
Unavailable
17
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
18
CLAMP-HOSE,(10)
7080236
$1.59
18
CLAMP-HOSE,(10)
7080236
$1.59
19
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
19
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
19
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
19
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
20
CLAMP-HOSE(10)
7080134
Unavailable
20
CLAMP-HOSE(10)
7080134
Unavailable
21
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
22
MUFFLER WELD [No Longer Available]
1260504
Unavailable
23
SPRING RETURN EXHAUST Substituted by 7042031
3081078
Unavailable
23
SPRING RETURN EXHAUST Substituted by 7042031
3081078
Unavailable
24
BALL-EXH.MT.
5430687
$13.19
25
NUT(10)
3080285
Unavailable
26
WASHER LOCK ,(10)
3080530
$3.19
27
MANIFOLD Substituted by 1260501-029
1260501
Unavailable
28
GASKET,EXHAUST Substituted by 3084439
3082510
Unavailable
29
SUPPORT Substituted by 1011582
5222062
Unavailable
30
RIVET(50)
7621429
$1.49
31
STINGER OUTLET
1260507
Unavailable
32
RIVET(50)
7621431
$1.49
33
BUSHING-RES. MT.
5010192
$6.39
34
DAMPENER
5410241
Unavailable
35
SCREW(10)
7512533
$1.75
36
WASHER(10)
7555740
$1.59
37
MOUNT, ENGINE
5410390
Unavailable
37
MOUNT, ENGINE
5410390
Unavailable
38
PLATE,MOTOR MT.
5220648
Unavailable
39
SPACER
5332779
Unavailable
40
MOUNT, MOTOR Substituted by 1011587-067
1011587
Unavailable
41
NUT ,(10)
7542513
Unavailable
42
NUT LOCK(10) Substituted by 7542411
7542415
Unavailable
42
NUT LOCK(10) Substituted by 7542411
7542415
Unavailable
43
WASHER WROUGHT(10)
7558403
$4.79
44
BOLT-CARRIAGE(10)
7512275
$3.99
45
SUPPORT, MUFFLER [No Longer Available]
5220394
Unavailable
46
BOLT(10)
7512193
$2.39
47
WASHER LOCK(10)
7553101
$3.99
48
BOLT(10)
7512539
$3.99
49
SPEED NUT(10)
7670021
$6.99
50
BOLT-CARRIAGE(10)
7512263
$3.99
51
BOLT(10) Substituted by 7512457
7512491
Unavailable
52
MOUNT
3110022
Unavailable
53
NUT LOCK(10)
7542403
$3.99
54
WASHER(10) Substituted by 7555806
7555720
$0.79
55
BUSHING-.437 X.770 X.50
5430261
$7.19
56
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
57
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
58
BOLT(10)
7512565
$19.99
59
HOSE,IMPULSE [No Longer Available]
5521132
Unavailable
60
FILTER FUEL,(10)
2530008
$4.84
61
FUEL LINE3/16ID-2FT. Substituted by 8450037-600
5521133
Unavailable
62
BOOT
5410403
$12.99
63
VALVE,FUEL SHUT-OFF
7052039
Unavailable
64
NUT-WELL(10)
7541923
$5.59
65
BRACKET,INT.SILENCER [No Longer Available]
5210977
Unavailable
66
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
67
SCREW(10)
7512279
$1.49
68
HOSE-INLET
5410251
Unavailable
69
DECAL,COOLING SYSTEM [No Longer Available]
7072131
Unavailable
70
DECAL, SPEC. [No Longer Available]
7072265
Unavailable
71
DECAL,SILENCER [No Longer Available]
7072087
Unavailable
72
SILENCER Substituted by 1253098
1253091
Unavailable
73
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
74
BRKT,AIR SILENCER,BLK. Substituted by 5223973-067
5223973
Unavailable
75
CAP, PRESSURE
2511155
Unavailable
76
HOSE CLAMP, RED
7080003
$1.49
77
BRKT INTAKE SILENCER [No Longer Available]
5210928
Unavailable
78
FOAM
5810276
Unavailable
