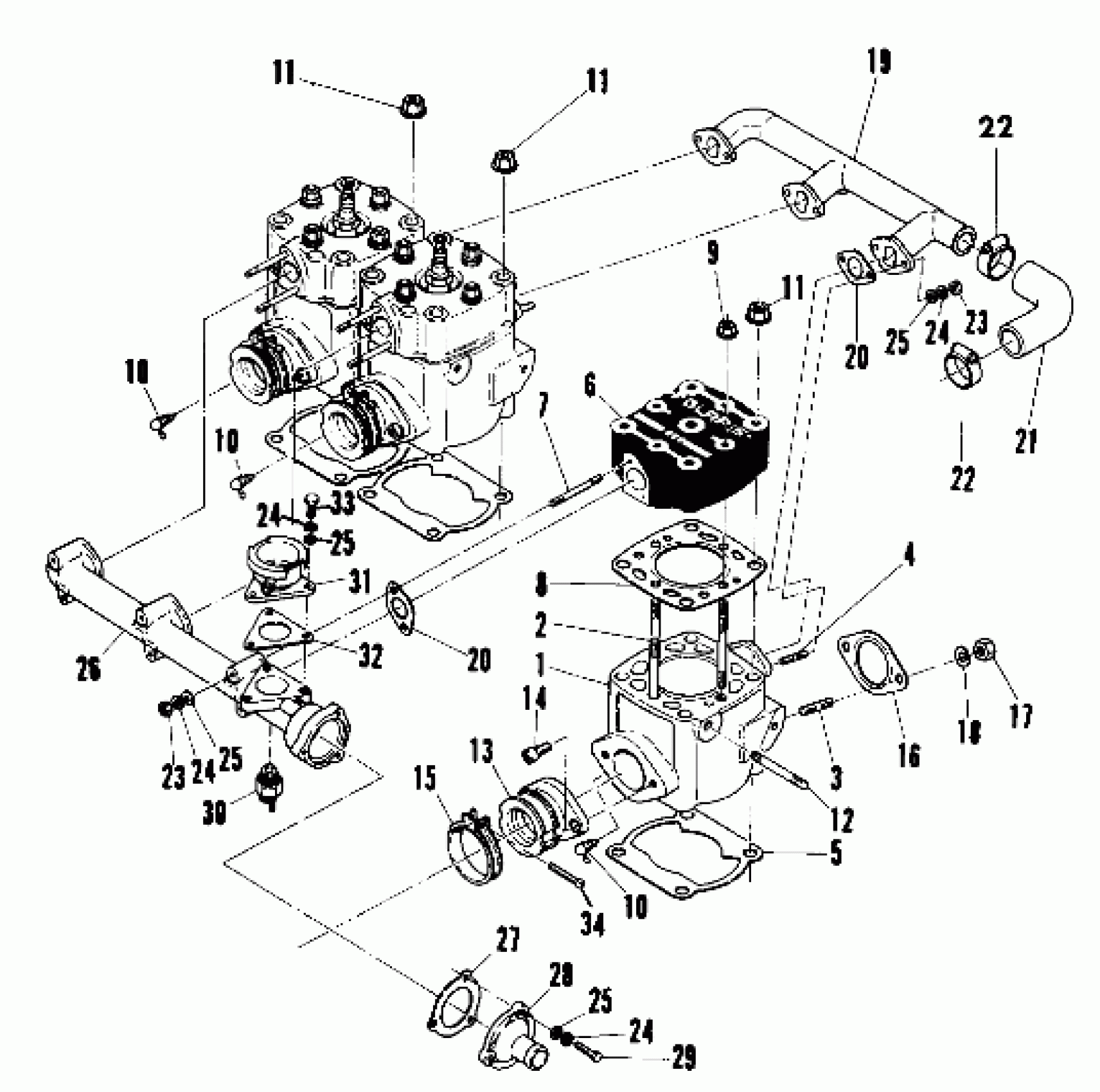

Polaris 400 - 0860759 Cylinder (600 and 600 LE) (4910941094033A) Diagram
#
1
CYLINDER (Incl. 1-4, 10)
3083336
Unavailable
2
STUD
3083392
Unavailable
3
STUD
3083360
Unavailable
4
STUD
3082931
Unavailable
5
GASKET-CYL.
3082932
$0.73
6
HEAD, CYL. [No Longer Available]
3083393
Unavailable
7
Stud
3082934
$10.39
8
GASKET-HEAD
3083246
Unavailable
9
NUT-FLANGE(10)
3082910
$2.39
10
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
10
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
10
VALVE, CHECK Substituted by 3086785
3083337
Unavailable
11
NUT-FLANGE(10)
3082911
$1.99
11
NUT-FLANGE(10)
3082911
$1.99
11
NUT-FLANGE(10)
3082911
$1.99
12
STUD Substituted by 3083360
3083074
Unavailable
13
ADAPTER Substituted by 3084325
3083171
Unavailable
14
Bolt, Allen
3081330
$3.99
15
BAND ASM. (Incl. Bolt)
3083166
$19.84
16
GASKET,EXHAUST Substituted by 3084439
3082510
Unavailable
17
NUT(10)
3080285
Unavailable
18
WASHER LOCK ,(10)
3080530
$3.19
19
MANIFOLD,WATER INLET
3083397
Unavailable
20
GASKET(10)
3082937
Unavailable
20
GASKET(10)
3082937
Unavailable
21
HOSE-MAIN
3082938
Unavailable
22
CLAMP, HOSE
3083394
Unavailable
22
CLAMP, HOSE
3083394
Unavailable
23
NUT(10)
3082939
Unavailable
23
NUT(10)
3082939
Unavailable
24
WASHER SPRING(10)
3080077
$2.39
24
WASHER SPRING(10)
3080077
$2.39
24
WASHER SPRING(10)
3080077
$2.39
24
WASHER SPRING(10)
3080077
$2.39
25
WASHER(10)
3080078
Unavailable
25
WASHER(10)
3080078
Unavailable
25
WASHER(10)
3080078
Unavailable
25
WASHER(10)
3080078
Unavailable
26
OUTLET, WATER MANIFOLD
3083338
Unavailable
27
GASKET,THERMOSTAT
3082944
Unavailable
28
COVER,THERMOSTAT CASE
3083475
$15.87
29
BOLT(10)
3083396
Unavailable
30
SWITCH,THERMAL(93 DEG.C.)
3083055
Unavailable
31
NECK, FILLER
3083398
Unavailable
32
GASKET, FILLER NECK
3083340
Unavailable
33
BOLT&WASHER ASM.
3083361
Unavailable
34
SCREW Substituted by 3081497
3083086
Unavailable
