Description

Price

1

CYLINDER (Incl. 2, 3)

3083450

Unavailable

2

STUD

3083360

Unavailable

3

STUD (10)

3080016

$5.75

4

GASKET, CYLINDER Substituted by 3083959

3083469

$64.99

5

NUT Substituted by 3082911

3080047

Unavailable

6

WASHER SPRING(10)

3080050

Unavailable

7

HEAD, CYL. (Incl. 8)

3083451

Unavailable

8

PIPE, WATER (Water)

3083452

Unavailable

9

GASKET, HEAD

3083470

Unavailable

10

NUT-FLANGE(10)

3082910

$2.39

11

WASHER

3082505

Unavailable

12

PLUG Substituted by 3084491

3083044

Unavailable

13

GASKET-ALUM Substituted by 3084492

3082719

Unavailable

14

SWITCH,THERMAL(93 DEG.C.)

3083055

Unavailable

15

NECK, FILLER

3083398

Unavailable

16

GASKET, FILLER NECK

3083340

Unavailable

17

BOLT&WASHER ASM.

3083361

Unavailable

18

MOUNT, CARBURETOR Substituted by 3085044

3083306

Unavailable

19

Bolt, Allen

3081330

$3.99

20

BAND ASM. Substituted by 3083166 (Incl. 21)

3083085

Unavailable

21

SCREW Substituted by 3081497

3083086

Unavailable

22

GASKET,EXHAUST Substituted by 3084439

3082510

Unavailable

23

NUT(10)

3080285

Unavailable

24

WASHER LOCK ,(10)

3080530

$3.19

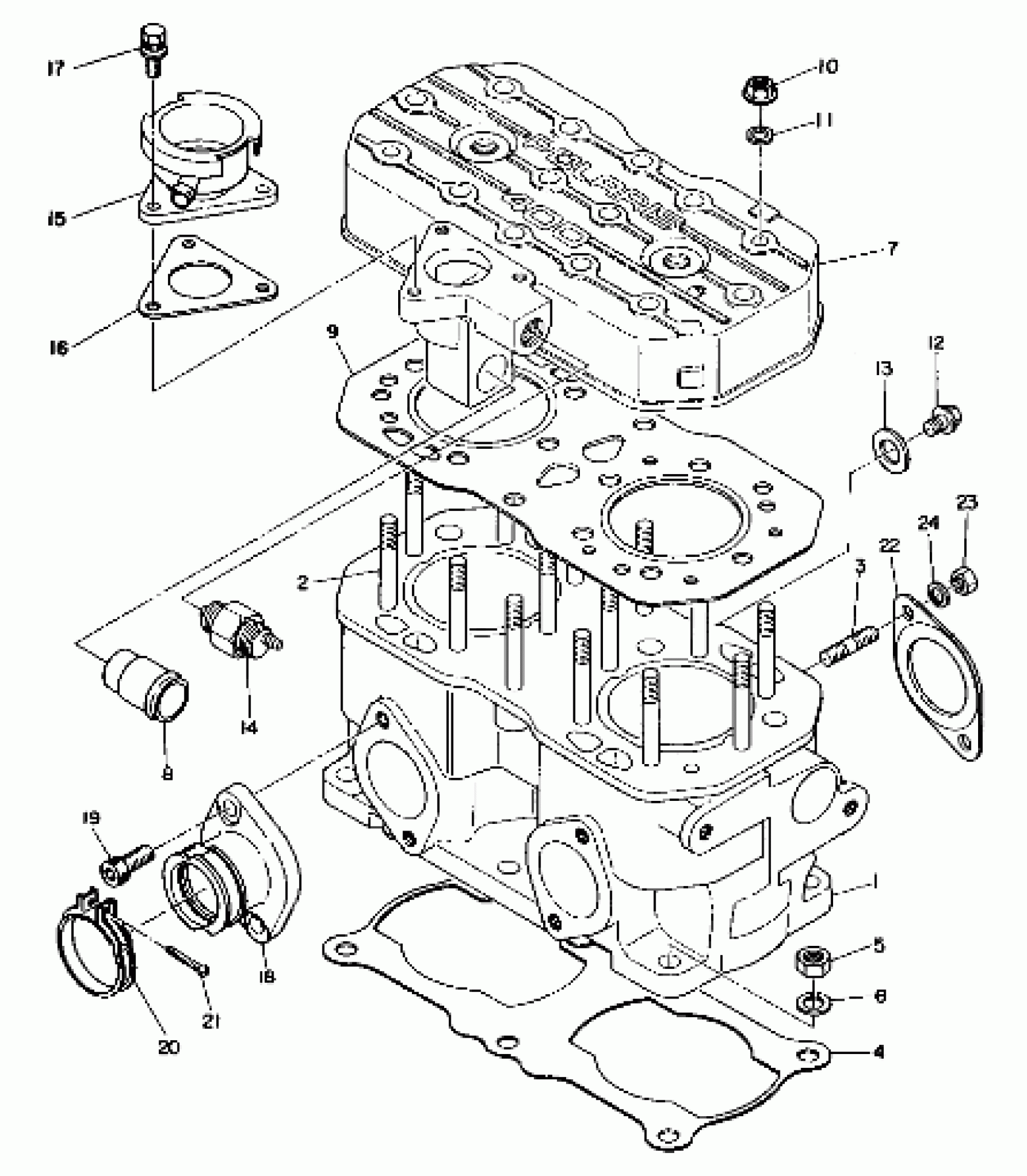

Polaris 400 - 0860759 Cylinder (400) (4910941094032A) Diagram

CYLINDER (Incl. 2, 3)

STUD

STUD (10)

GASKET, CYLINDER Substituted by 3083959

NUT Substituted by 3082911

WASHER SPRING(10)

HEAD, CYL. (Incl. 8)

PIPE, WATER (Water)

GASKET, HEAD

NUT-FLANGE(10)

WASHER

PLUG Substituted by 3084491

GASKET-ALUM Substituted by 3084492

SWITCH,THERMAL(93 DEG.C.)

NECK, FILLER

GASKET, FILLER NECK

BOLT&WASHER ASM.

MOUNT, CARBURETOR Substituted by 3085044

Bolt, Allen

BAND ASM. Substituted by 3083166 (Incl. 21)

SCREW Substituted by 3081497

GASKET,EXHAUST Substituted by 3084439

NUT(10)

WASHER LOCK ,(10)
