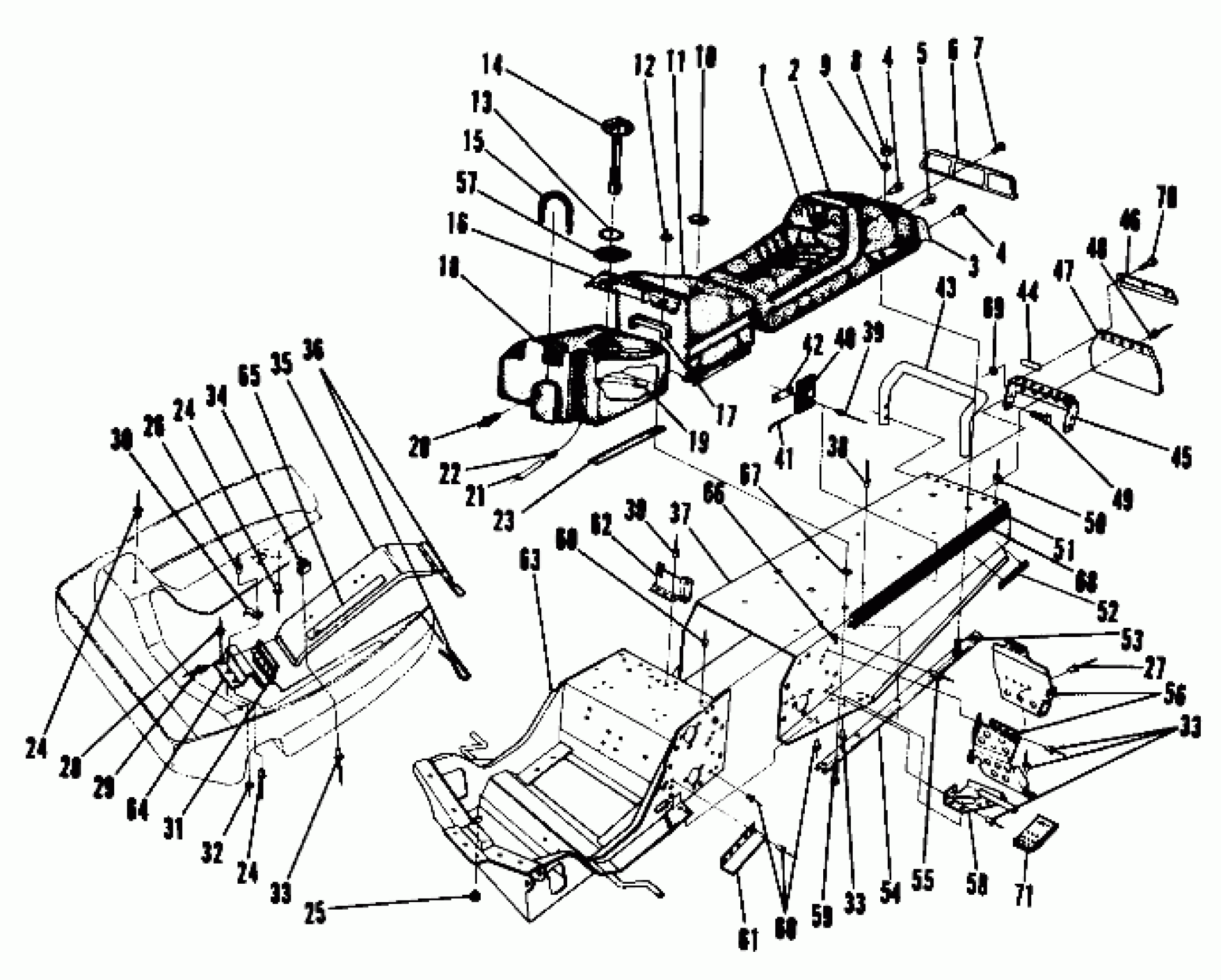

Polaris 400 - 0860759 Chassis and Seat (4910941094001A) Diagram
#
-
SEAT ASM, (600) [No Longer Available] (Incl. 2-7) (600)
2681251
Unavailable
-
SEAT ASM, (400) [No Longer Available] (Incl. 2-7) (400)
2681255
Unavailable
-
SEAT ASM, (600LE) [No Longer Available] (Incl. 2-7) (600LE)
2681258
Unavailable
1
SEAT ASM. Substituted by 2200748 (Incl. 2-7) (TRAIL)
2681248
Unavailable
2
COVER, SEAT,TRAIL Substituted by 2200739 (TRAIL)
2681249
Unavailable
2
COVER, SEAT,(600) [No Longer Available] (600)
2681252
Unavailable
2
COVER, SEAT,(400) [No Longer Available] (400)
2681254
Unavailable
2
COVER, SEAT,(600LE) [No Longer Available] (600LE)
2681259
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB TAILLIGHT(10)
4030015
$4.03
4
BULB TAILLIGHT(10)
4030015
$4.03
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
GROMMET-GAS TANK
5430575
Unavailable
11
COVER,TANK, TRAIL Substituted by 2200739 (TRAIL)
2681250
Unavailable
11
COVER,TANK,(600) [No Longer Available] (600)
2681253
Unavailable
11
COVER, TANK,(400) [No Longer Available] (400)
2681256
Unavailable
11
COVER, TANK,(600LE) [No Longer Available] (600LE)
2681257
Unavailable
13
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
14
GAUGE,GAS Substituted by 2511246
2511149
Unavailable
15
SPRING,TANK,(10)
7042020
$13.75
16
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
17
CUSHION,TANK H.D.
5420126
Unavailable
18
TANK,GAS (Incl. 19-22)
2511150
Unavailable
19
FUELPICKUP,W/STRAINER
7052037
$12.94
20
FITTING - OUTLET(10)
7052023
$24.99
20
FITTING - OUTLET(10)
7052023
$24.99
21
KIT-TANK VENT
2200190
Unavailable
22
VENT-TANK
5430579
Unavailable
23
PAD-GAS TANK
5810063
$4.95
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
25
PLUG
7080288
Unavailable
26
POP RIVET(50)
7621402
$1.49
27
RIVET(50)
7621431
$1.49
29
RIVET, POP(50)
7621330
$1.49
30
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
31
HINGE (TRAIL)
5211047
$3.49
31
HINGE (400,600)
5210728
Unavailable
31
HINGE, BACK [No Longer Available] (600LE)
5211035
Unavailable
32
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
34
Desc not available [No Longer Available] (400,600)
5220320
Unavailable
34
CLIP, CHROME Substituted by 5222769 (600LE)
5220451
Unavailable
35
GUARD, CLUTCH Substituted by 2251183 (TRAIL,400,AND 600)
5223899
Unavailable
35
GUARD, CLUTCH Substituted by 2251388 (600LE)
5240104
Unavailable
36
PIN,RETAINING,(10)
7080216
$9.70
36
PIN, FRONT (TRAIL)
7080311
Unavailable
37
TUNNEL, TRAIL Substituted by 1011663 (TRAIL)
1011596
Unavailable
37
TUNNEL,(400/600) [No Longer Available] (400,600,AND 600LE)
1011597
Unavailable
38
RIVET Substituted by 7661638 (600,600LE)
7661625
$1.19
38
RIVET Substituted by 7661638 (600,600LE)
7661625
$1.19
39
POP RIVET(50) (TRAIL)
7621323
$1.49
40
BELT,SEAT (Trail)
7080322
Unavailable
41
WIRE-SEAT-BELT (Trail)
5223864
Unavailable
42
PLATE-SEAT BELT (Trail)
5210842
Unavailable
43
BUMPER-REAR (TRAIL,400,AND 600)
5224263
Unavailable
43
BUMPER, (600 LE) [No Longer Available] (600LE)
5224278
Unavailable
44
DECAL, TRACK Substituted by 7072872
7072132
Unavailable
45
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
46
CAP, SNOWFLAP(SE) [No Longer Available] (600LE)
5220438
Unavailable
47
FLAP, SNOW,SILVER Substituted by 5410394-1106 (400,600LE)
5410394
$121.02
47
FLAP, SNOW, GOLD Substituted by 5410394 (TRAIL,600)
5410392
$121.02
48
RIVET(50)
7621460
$1.49
49
SCREW(10)
7512252
Unavailable
50
POP RIVET(50)
7621425
$1.49
51
DECAL(48.0'')RED&BLACK [No Longer Available] (400)
8330060
Unavailable
51
DECAL(ROLL)BLU&BLK.STRIPE [No Longer Available] (600)
8330062
Unavailable
51
DECAL, TUNNEL [No Longer Available] (600LE)
7072196
Unavailable
51
DECAL STRIPE,BRONZE&BLK. (TRAIL)
8330061
Unavailable
52
REFLECTOR RED (TRAIL, 400,AND 600)
2670070
$9.91
52
REFLECTOR (600LE)
2432030
Unavailable
53
BOLT(10)
7512103
$3.19
54
STRIP-WEAR (600,600LE)
5510130
Unavailable
55
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
56
FOOTREST,RH LOWER Substituted by 5220643-067
5220643
Unavailable
56
FOOTREST,LH LOWER Substituted by 5220642-067
5220642
Unavailable
56
FOOTREST,LH UPPER [No Longer Available]
5223904
Unavailable
56
FOOTREST,RH UPPER Substituted by 5223905-067
5223905
Unavailable
57
FOAM, FILLER
5810201
Unavailable
58
SUPPORT, LH Substituted by 1011577-067
1011577
Unavailable
58
SUPPORT, RH Substituted by 1011578-067
1011578
Unavailable
59
BOLT(10)
7512193
$2.39
61
GUARD
5223789
Unavailable
62
BRACKET Substituted by 5221932-067
5221932
Unavailable
63
BULKHEAD, (400) Substituted by 1011613 (400)
1011542
Unavailable
63
BULKHEAD,(600+S/E) Substituted by 1011614 (600,600LE)
1011543
Unavailable
63
BULKHEAD Substituted by 1011612 (TRAIL)
1011572
Unavailable
64
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
65
DECAL, WARNING [No Longer Available] (600LE)
7072153
Unavailable
65
DECAL, WARNING [No Longer Available] (400)
7072086
Unavailable
65
Desc not available [No Longer Available] (TRAIL,600)
7071854
Unavailable
66
SNAP-MALE(10)
7080227
Unavailable
67
SPEED NUT(10)
7670021
$6.99
68
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
69
NUT(10) (600LE)
7541925
$1.49
70
SCREW,SKI COVER (SE),(10) [No Longer Available] (600LE)
7510501
Unavailable
71
PLATE,TUNNEL,LH
5220634
Unavailable
71
PLATE,TUNNEL,RH
5220635
Unavailable
