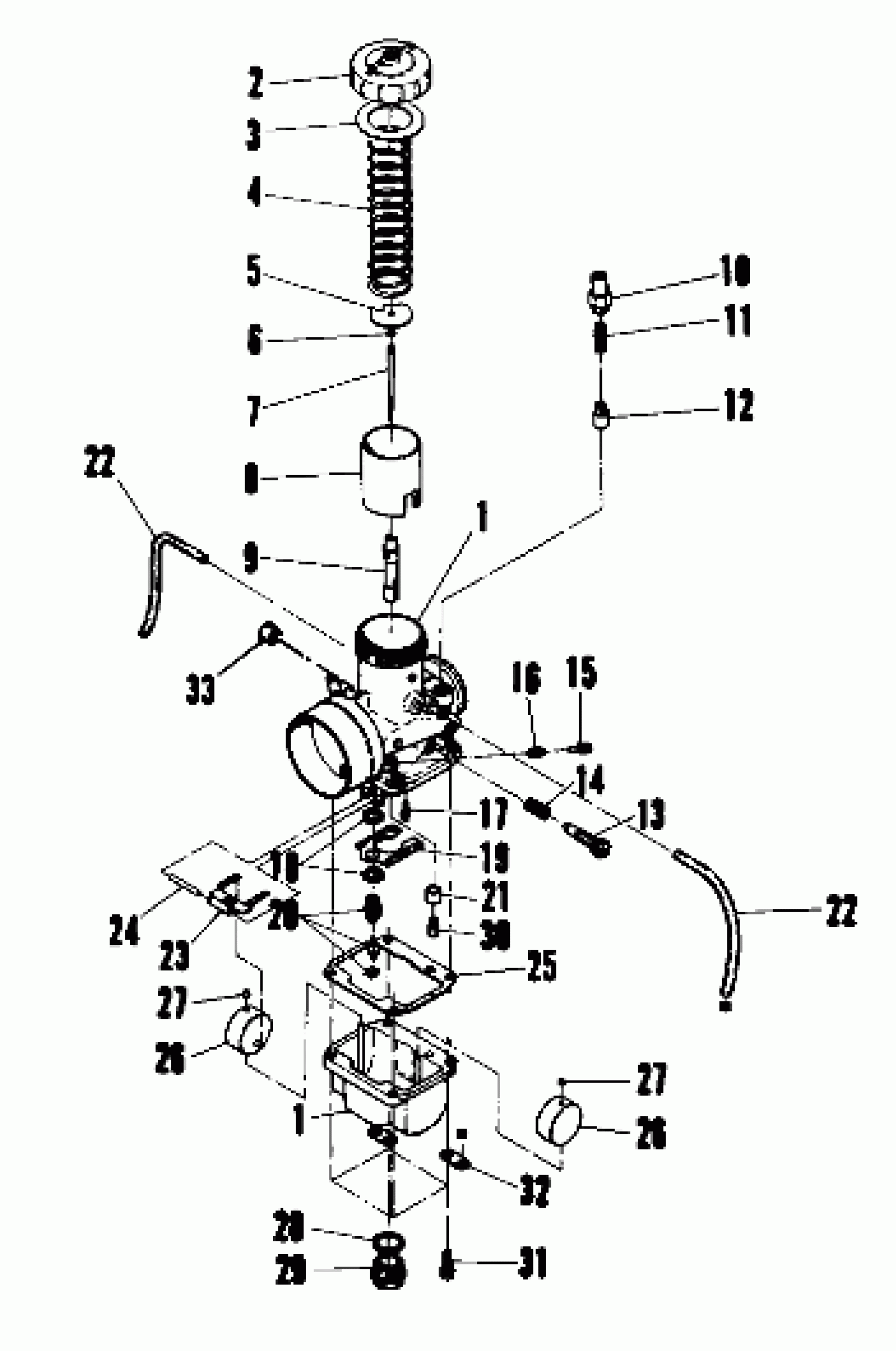

Polaris 400 - 0860759 Carburetor (600 and 600 LE) (4910941094049A) Diagram
#
Description
Price
1
CARB ASM. [No Longer Available] (Incl. 2-32)
3130377
Unavailable
1
CARB ASM. [No Longer Available] (Incl. 2-32)
3130377
Unavailable
2
TOP (Incl. 3)
3130061
Unavailable
3
GASKET
-------
Unavailable
4
SPRING,THROTTLE Substituted by 3130444
3130334
Unavailable
5
PLATE, THROTTLE
3130054
$6.46
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
NEEDLE,JET,(6F9-3)
3130378
Unavailable
8
VALVE,THROTTLE,(3.0)
3130352
Unavailable
8
VALVE,THROTTLE-3.5 Substituted by 3130380
3130304
Unavailable
9
JET,NEEDLE,Q-2
3130165
Unavailable
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
CARBURETOR
3130326
Unavailable
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR Substituted by 3130011
3130233
Unavailable
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET, PILOT, #35 Substituted by 3130066
3130340
Unavailable
18
WASHER(10)
3130047
$4.84
19
PLATE
3130243
Unavailable
20
VALVE ASM,NEEDLE Substituted by 3130643
3130046
$56.65
21
RING,CARB
3130232
Unavailable
22
HOSE Substituted by 3130241
3081868
Unavailable
22
HOSE Substituted by 3130241
3081868
Unavailable
23
ARM,FLOAT
3130048
Unavailable
24
PIN, FLOAT Substituted by 3130235
3130240
$8.89
25
GASKET,FLOAT CHAMBER
3130236
$12.13
26
FLOAT ASM Substituted by 3130021
3080534
Unavailable
26
FLOAT ASM Substituted by 3130021
3080534
Unavailable
27
CAP,(10)
3130237
$4.03
27
CAP,(10)
3130237
$4.03
28
O RING
3130239
Unavailable
29
SCREW, GUIDE Substituted by 3130432
3130238
Unavailable
30
JET,MAIN,HX.HD#260(10)
3130129
$7.27
31
SCREW
3130056
$3.19
32
PLATE
3130242
Unavailable
33
CAP,VACUUM FIT
3130379
$6.63
