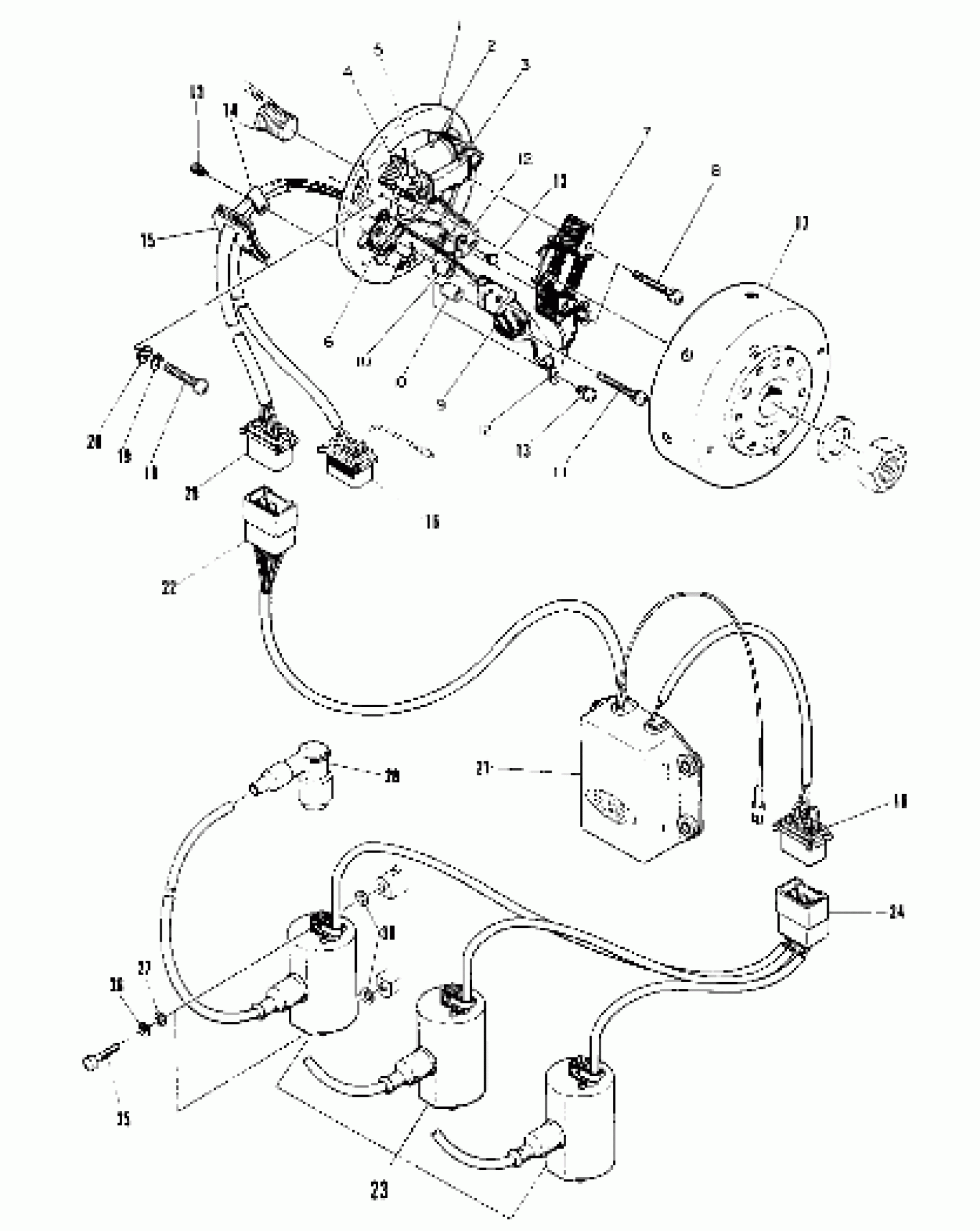

Polaris 400 - 0850759 Magneto (600 and 600 SE) (4909500950038A) Diagram
#
Description
Price
1
PLATE,MAG,ASM (Incl. 2-16)
3082958
Unavailable
2
COIL,EXCITING
3082959
Unavailable
3
COIL,PULSATING
3082960
Unavailable
4
COLLAR
3082961
Unavailable
5
SCREW-WASHER ASM(10)
3082962
Unavailable
6
COIL, CONTROL
3082963
Unavailable
7
COIL, LIGHTING Substituted by 3081252
3082964
Unavailable
8
SCREW(10)
3082365
$3.19
9
COIL-LIGHTING
3082965
Unavailable
10
COLLAR
3082966
Unavailable
10
COLLAR
3082966
Unavailable
12
CLAMP [No Longer Available]
3082968
Unavailable
12
CLAMP [No Longer Available]
3082968
Unavailable
13
SCREW&WASHER,(10)
3081260
$3.19
13
SCREW&WASHER,(10)
3081260
$3.19
13
SCREW&WASHER,(10)
3081260
$3.19
14
Clamp
3081146
$1.49
15
Grommet
3082969
Unavailable
16
COUPLER,MALE
3081513
$19.99
16
COUPLER,MALE
3081513
$19.99
17
FLYWHEEL
3082970
$355.99
18
SCREW [No Longer Available]
3082971
Unavailable
19
WASHER SPRING(10)
3080077
$2.39
20
WASHER(10)
3080078
Unavailable
21
CDI UNIT Substituted by 3083721 (Incl. 16, 22)
3082972
Unavailable
22
COUPLER
3082973
$7.03
23
COIL ASM, IGNITION (Incl. 24)
3082974
Unavailable
24
COUPLER
3082975
Unavailable
25
SCREW
3083407
Unavailable
26
WASHER SPRING(10)
3083133
Unavailable
27
WASHER Substituted by 3083774
3083134
Unavailable
28
CAP-SPARK PLUG Substituted by 4020129
3083282
Unavailable
29
COUPLER, 6P MALE
3083408
Unavailable
30
WASHER
3083357
$2.39
