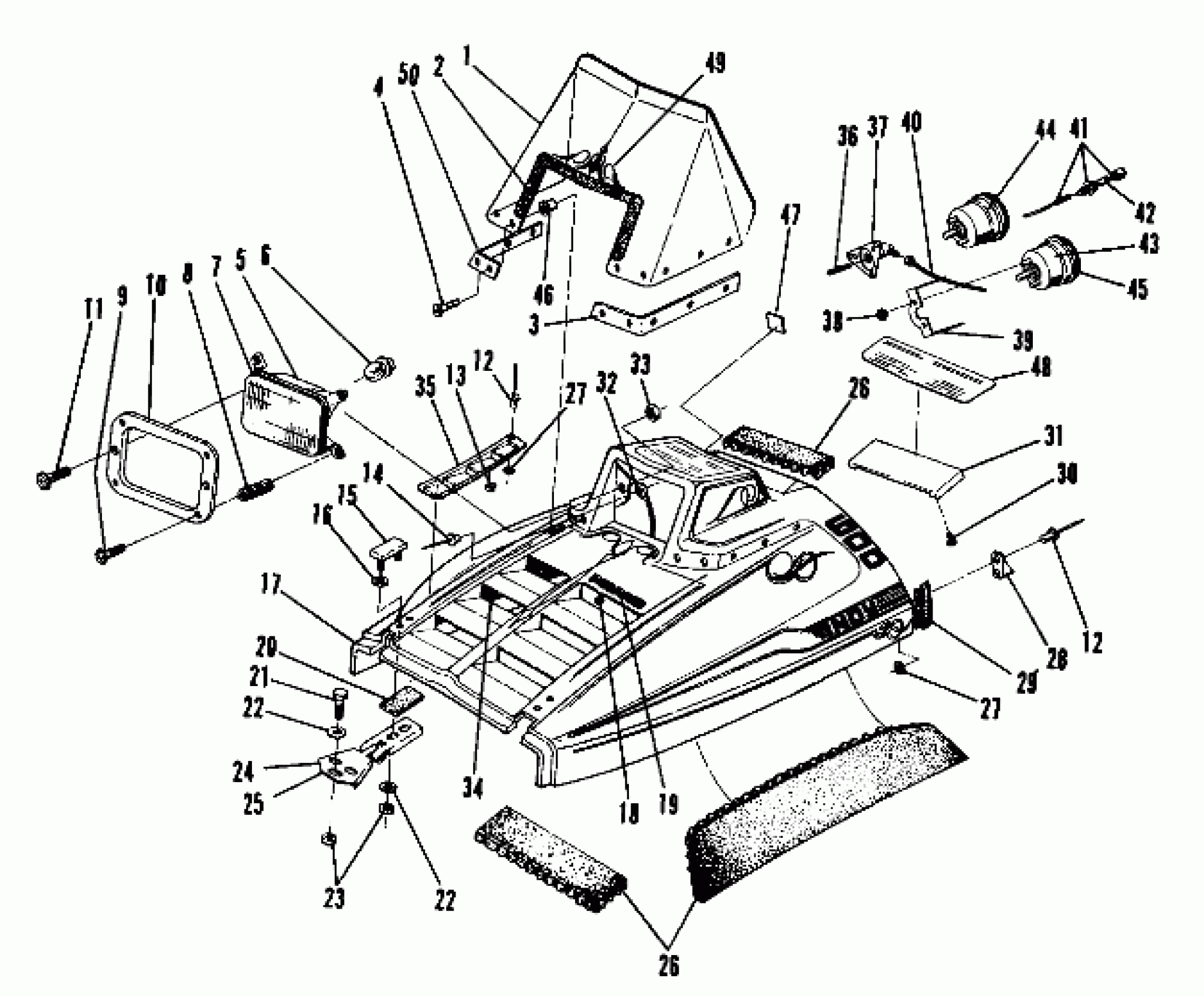

Polaris 400 - 0850759 Hood (600 SE) (4909500950005A) Diagram
#
1
WINDSHIELD,SMOKE Substituted by 5430691
5430744
Unavailable
2
PAD, WINDSHIELD
5810248
Unavailable
3
BAND, W/S, LH [No Longer Available]
5211003
Unavailable
4
SCREW, CHROME,(10) [No Longer Available]
7512005
Unavailable
5
HEADLIGHT ASM,QUARTZ [No Longer Available] (Incl. 6-9)
2431005
Unavailable
6
BULB,QUARTZ.H/L,INDY
2870448
$24.99
7
UNIT-HEADLAMP
4032001
Unavailable
8
SPRING-ADJ
4032002
Unavailable
9
SCREW, ADJ.(10)
4032003
Unavailable
10
BEZEL, HEADLIGHT(SE) [No Longer Available]
5211002
Unavailable
11
SCREW, CHROME,(10) Substituted by 7511985
7511996
Unavailable
12
RIVET, POP(50)
7621322
$0.56
12
RIVET, POP(50)
7621322
$0.56
13
U CLIP(10)
7670042
$1.59
14
BLIND RIVET(50)
7621403
$1.49
15
COVER, HINGE, (SE) [No Longer Available]
1011537
Unavailable
16
WASHER,(10) [No Longer Available]
7555731
Unavailable
17
HOOD,W/DECALS(600S/E) [Item NotAvailable]
2631268
Unavailable
18
PALNUT(10)
7670009
$2.39
19
EMBLEM HOOD [No Longer Available] (Gold)
5430685
Unavailable
20
PAD [No Longer Available]
5850063
Unavailable
21
BOLT(10)
7512240
$3.99
22
WASHER,WROUGHT(10)
7558302
$1.59
22
WASHER,WROUGHT(10)
7558302
$1.59
23
NUT-LOCK(10)
7542122
$1.49
24
HINGE,LH,HOOD Substituted by 2635001-067
2635001
Unavailable
25
HINGE ASM,RH,HOOD Substituted by 2635002-067
2635002
Unavailable
26
FOAM-HOOD-BULK-14X36
5810221
Unavailable
26
FOAM-HOOD-BULK-14X36
5810221
Unavailable
27
RIVET BURR(50)
7555727
$1.49
27
RIVET BURR(50)
7555727
$1.49
28
CUP, HOOD LATCH,(10)
5430733
$4.84
29
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
30
SCREW(10)
7511840
Unavailable
31
COVER,INLET,BLACK
5430739
Unavailable
32
CABLE, HOOD
7080284
Unavailable
33
NUT(10)
7541925
$1.49
34
FOIL-TAPE
5810108
Unavailable
35
LOUVER-HOOD
5430661
Unavailable
36
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
37
ANGLE DRIVE
3280046
Unavailable
38
NUT
3280063
Unavailable
39
BRACKET [No Longer Available]
3280062
Unavailable
40
CABLE-SPEEDOMETER
3280034
Unavailable
41
LIGHT'TEMP'WARN. [No Longer Available]
4040006
Unavailable
42
BULB
4030010
Unavailable
43
SPEEDOMETER (SE) [No Longer Available]
3280084
Unavailable
44
TACHOMETER, (SE) [No Longer Available]
3280085
Unavailable
45
GLASS&BEZEL [No Longer Available]
2200225
Unavailable
46
NUT-WELL(10)
7541920
Unavailable
47
EMBLEM, 30 YR.,GOLD (Gold)
5430740
Unavailable
48
DECAL, WARNING [No Longer Available]
7072150
Unavailable
49
DECAL, WINDSHIELD [No Longer Available]
7072134
Unavailable
50
BAND, W/S,RH [No Longer Available]
5211014
Unavailable
