Front Suspension and Ski (Trail, 400, 600) (4909500950011A)

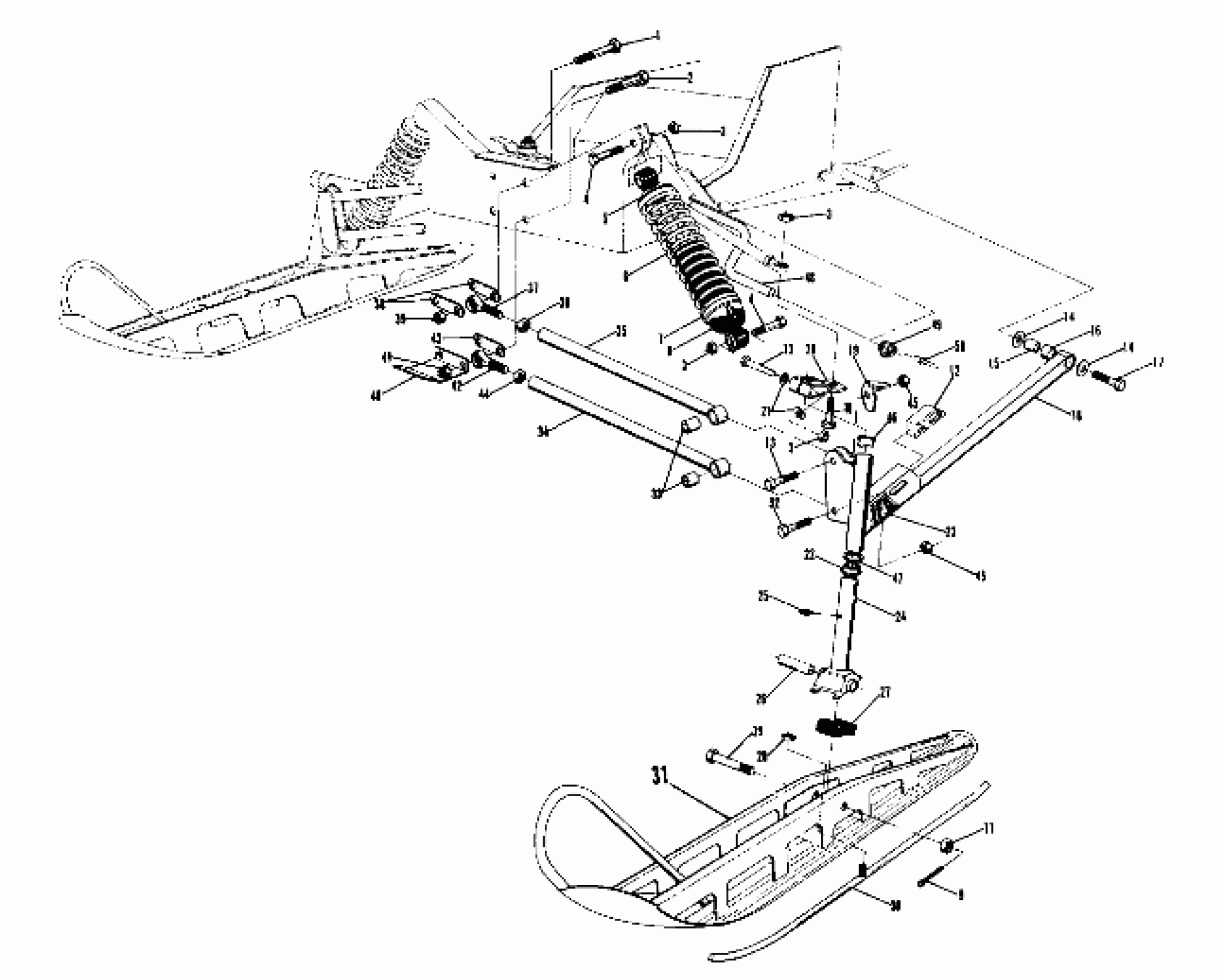

Polaris 400 - 0850759 Front Suspension and Ski (Trail, 400, 600) (4909500950011A) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT LOCK(10)
7542403
$3.99
3
NUT LOCK(10)
7542403
$3.99
3
NUT LOCK(10)
7542403
$3.99
3
NUT LOCK(10)
7542403
$3.99
4
BOLT(10)
7515415
$1.49
4
BOLT(10)
7515415
$1.49
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COIL,BLK. Substituted by 7041194-067 (400)
7041126
Unavailable
6
Desc not available Substituted by 7041126 (600)
7041141
Unavailable
6
SPRING, BRONZE Substituted by 7041194-067 (TRAIL)
7041151
Unavailable
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
SHOCK-FRONT Substituted by 7041144 (TRAIL)
7041143
Unavailable
8
SHOCK,FR.SUSP. (400, 600)
7041144
Unavailable
9
PIN-COTTER(10)
7661205
$1.49
10
BOLT(10)
7512404
$3.99
11
NUT-3/8-24 HX CA GR5-Y
7542438
$1.59
12
SLIDE-SWAYBAR
5410384
Unavailable
13
BOLT Substituted by 7515491
7515433
$1.59
13
BOLT Substituted by 7515491
7515433
$1.59
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE,TRAILING ARM
5010187
Unavailable
16
PIVOT-TRAILING ARM
5410382
Unavailable
17
BOLT(10)
7512557
$7.60
18
ARM-TRAILING RH Substituted by 1822052-067
1822052
Unavailable
18
ARM-TRAILING LH Substituted by 1822053-067
1822053
Unavailable
19
STOP,STRNG,LH,BLK. Substituted by 5220237-067
5220237
Unavailable
19
STOP,STRNG,RH,BLK. Substituted by 5220238-067
5220238
Unavailable
20
ARM, STEERING Substituted by 5220326-067
5220326
Unavailable
21
WASHER(10) Substituted by 7555806
7555720
$0.79
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
DECAL,STRUT(SILVER) [No Longer Available] (400)
7072129
Unavailable
23
DECAL,STRUT(GOLD) [No Longer Available] (Trail, 600)
7072130
Unavailable
24
SPINDLE,GREASABLE Substituted by 5130919-067
6230055
Unavailable
25
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
26
BUSHING,PIVOT,(10)
5010158
$19.99
27
STOP-RUBBER
5521094
Unavailable
28
NUT-5/16-18 NYLOK-Y
7542324
$1.49
29
BOLT(10)
7515462
$8.79
30
SKAG WELD-SKI
1820132
Unavailable
31
SKI-BLACK Substituted by 1820332-067
1820245
Unavailable
32
BOLT(10) Substituted by 7515492
7512410
Unavailable
33
BUSHING-RADIUS ROD,(10)
5010127
$7.99
34
ROD,RADIUS,BLACK Substituted by 1822045-067
1822045
Unavailable
35
ROD-RADIUS Substituted by 1822037-067
1822037
Unavailable
36
NUT JAM(10)
7542520
$2.39
37
ROD END RH
7060126
Unavailable
38
STRAP-SPACER
5220178
$1.49
39
NUT ,(10)
7542513
Unavailable
40
BRACE, PAN Substituted by 5223997-067
5223997
Unavailable
41
NUT FLEX,(10)
7542703
Unavailable
42
ROD END
7060127
Unavailable
43
STRAP-SPACER BOTTOM
5220227
Unavailable
44
NUT-JAM(10)
7542711
$2.39
45
NUT LOCK(10) Substituted by 7542411
7542415
Unavailable
45
NUT LOCK(10) Substituted by 7542411
7542415
Unavailable
46
BUSHING-FLANGE
3573909
$2.39
47
WASHER SPECIAL(10)
7556509
$1.59
48
BAR,SWAY,BLACK Substituted by 5224237-067
5224237
Unavailable
49
BUSHING-SWAYBAR
5410383
Unavailable
50
RIVET(50)
7621433
$1.49
