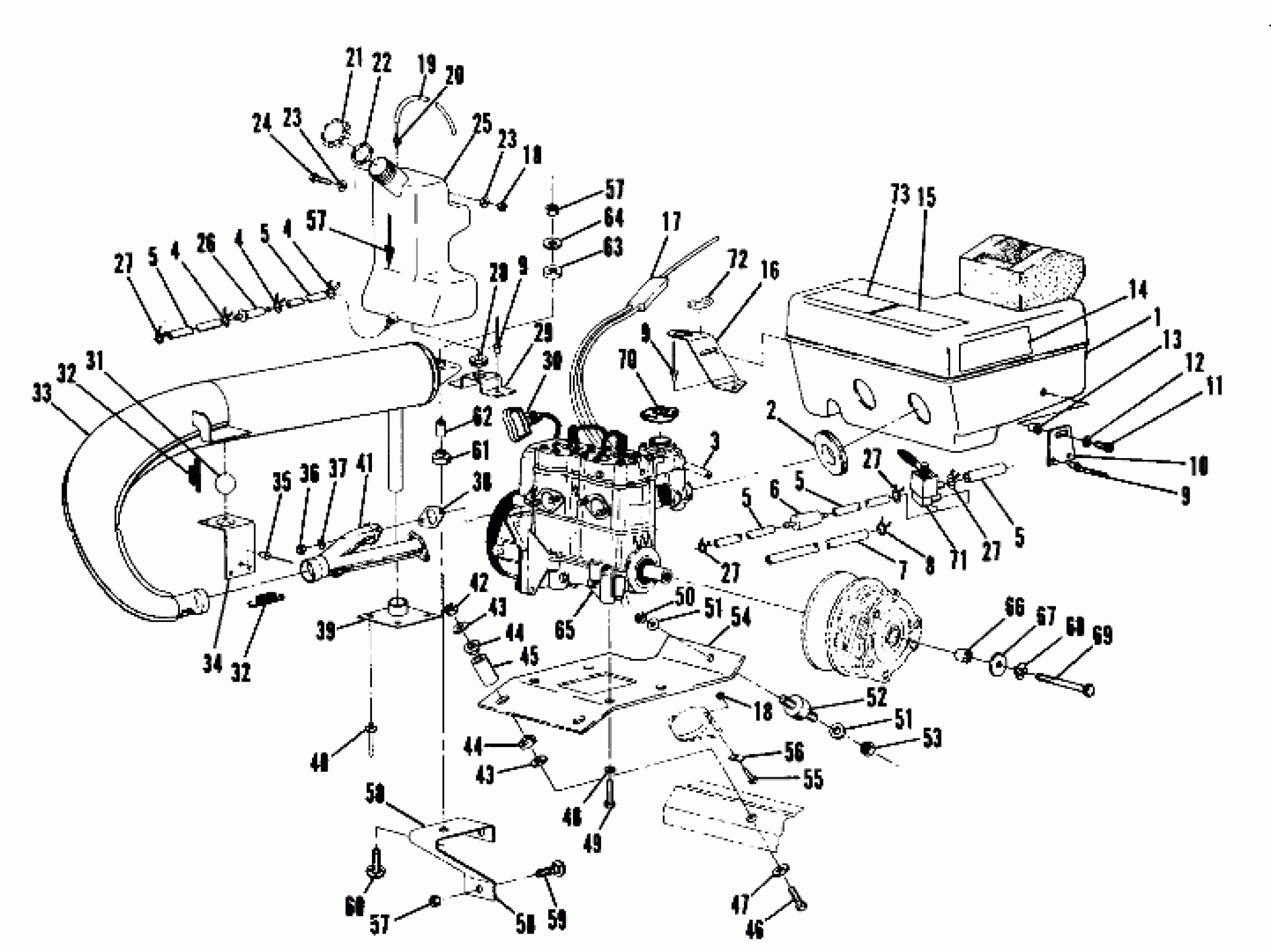

Polaris 400 - 0850759 Engine Mounting (400) (4909500950021A) Diagram
#
1
SILENCER Substituted by 1253098
1253091
Unavailable
2
BOOT
5410403
$12.99
3
FUEL LINE3/16ID-2FT. Substituted by 8450037-600
5521133
Unavailable
4
CLAMP-HOSE,(10)
7080236
$1.59
4
CLAMP-HOSE,(10)
7080236
$1.59
4
CLAMP-HOSE,(10)
7080236
$1.59
5
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
5
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
5
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
5
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
5
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
6
FILTER FUEL,(10)
2530008
$4.84
7
HOSE,IMPULSE [No Longer Available]
5521132
Unavailable
8
HOSE CLAMP, RED
7080003
$1.49
9
POP RIVET(50)
7621425
$1.49
9
POP RIVET(50)
7621425
$1.49
9
POP RIVET(50)
7621425
$1.49
10
BRKT INTAKE SILENCER [No Longer Available]
5210928
Unavailable
11
SCREW(10)
7512279
$1.49
12
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
13
NUT-WELL(10)
7541923
$5.59
14
DECAL,SILENCER [No Longer Available]
7072087
Unavailable
15
DECAL, SILENCER [No Longer Available]
7072158
Unavailable
16
BRKT,AIR SILENCER,BLK. Substituted by 5223973-067
5223973
Unavailable
17
CABLE,THROTTLE [No Longer Available]
7080258
Unavailable
18
NUT-LOCK(10)
7542122
$1.49
18
NUT-LOCK(10)
7542122
$1.49
19
KIT-TANK VENT
2200190
Unavailable
20
VENT-TANK
5430579
Unavailable
21
CAP-OIL TANK [No Longer Available]
5430594
Unavailable
22
GASKET-OIL CAP
5810141
$2.39
23
WASHER,WROUGHT(10)
7558302
$1.59
23
WASHER,WROUGHT(10)
7558302
$1.59
24
SCREW(10)
7512116
Unavailable
25
TANK,OIL Substituted by 5430921
5430695
Unavailable
26
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
27
CLAMP-HOSE(10)
7080134
Unavailable
27
CLAMP-HOSE(10)
7080134
Unavailable
27
CLAMP-HOSE(10)
7080134
Unavailable
27
CLAMP-HOSE(10)
7080134
Unavailable
28
GROMMET RUBBER
5410021
Unavailable
29
BRACKET
5223985
Unavailable
30
HANDLE-RECOIL
5430520
Unavailable
31
BALL-EXH.MT.
5430687
$13.19
32
SPRING RETURN EXHAUST Substituted by 7042031
3081078
Unavailable
32
SPRING RETURN EXHAUST Substituted by 7042031
3081078
Unavailable
33
MUFFLER WELD [No Longer Available]
1260504
Unavailable
34
SUPPORT-MUFFLER FR. [No Longer Available]
5220485
Unavailable
35
RIVET(50)
7621429
$1.49
36
NUT(10)
3080285
Unavailable
37
WASHER LOCK ,(10)
3080530
$3.19
38
GASKET,EXHAUST Substituted by 3084439
3082510
Unavailable
39
STINGER OUTLET
1260507
Unavailable
40
RIVET(50)
7621431
$1.49
41
MANIFOLD Substituted by 1260501-029
1260501
Unavailable
42
NUT,FLEX LOC(10)
7542507
$3.99
43
WASHER(10)
7555740
$1.59
43
WASHER(10)
7555740
$1.59
44
MOUNT, ENGINE
5410390
Unavailable
44
MOUNT, ENGINE
5410390
Unavailable
45
SPACER
5332779
Unavailable
46
SCREW(10)
7512533
$1.75
47
WASHER(10)
7555801
$3.99
48
WASHER LOCK(10)
7553101
$3.99
49
BOLT(10)
7512539
$3.99
50
NUT LOCK(10)
7542403
$3.99
51
WASHER WROUGHT(10)
7558403
$4.79
51
WASHER WROUGHT(10)
7558403
$4.79
52
MOUNT, RUBBER [No Longer Available]
3110024
Unavailable
53
NUT(10) [No Longer Available]
7542442
Unavailable
54
PLATE, MOTOR MT. [No Longer Available]
5220420
Unavailable
55
BOLT-CARRIAGE(10)
7512263
$3.99
56
SPEED NUT(10)
7670021
$6.99
57
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
57
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
57
DECAL, OIL LEVEL [No Longer Available]
7072160
Unavailable
58
SUPPORT,MUFFLER Substituted by 5220394
5220421
Unavailable
58
SUPPORT,MUFFLER Substituted by 5220394
5220421
Unavailable
59
BOLT(10)
7512193
$2.39
60
BOLT-CARRIAGE(10)
7512275
$3.99
61
DAMPENER
5410241
Unavailable
62
WASHER,RUBBER
5410436
$1.59
62
BUSHING-RES. MT.
5010192
$6.39
64
WASHER(10)
7558221
$2.39
65
ENG. EC40PL-02 [No Longer Available]
1211438
Unavailable
66
BUSHING-.437 X.770 X.50
5430261
$7.19
67
WASHER-.440X1.25X.190 FL-Y
5210748
$3.99
68
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
69
BOLT(10)
7512565
$19.99
70
CAP, PRESSURE
2511155
Unavailable
71
VALVE,FUEL SHUT-OFF
7052040
Unavailable
72
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
73
DECAL,COOLING SYSTEM [No Longer Available]
7072131
Unavailable
