Description

Price

1

CRANKCASE Substituted by 2200770 (Incl. 2, 5-8, 18)

3083472

Unavailable

1

CRANKCASE Substituted by 2200770 (Incl. 2, 5-8, 18)

3083472

Unavailable

2

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

3

STUD Substituted by 3083785

3083242

Unavailable

4

STUD

3083243

$15.08

5

BOLT AND WASHER ASSY.

3082097

Unavailable

6

BOLT-WASHER

3082923

$6.19

7

BOLT & WASHER

3082925

Unavailable

8

BOLT-WASHER

3082924

Unavailable

8

BOLT-WASHER

3082924

Unavailable

9

CONNECTOR

3080641

Unavailable

10

WASHER WAVE

3081634

Unavailable

11

WASHER,WAVE(10)

3083027

Unavailable

12

PLUG Substituted by 3084491

3083044

Unavailable

13

GROMMET

3082875

$7.99

14

COVER, CRANKCASE

3083390

Unavailable

15

SEAL, OIL(10)

3083331

Unavailable

16

GASKET

3083473

$1.49

17

SCREW, COUNTER SUNK

3083333

Unavailable

18

Pipe

3083474

$4.95

19

CLAMP

3083391

$6.23

20

Band, Wire

3083447

Unavailable

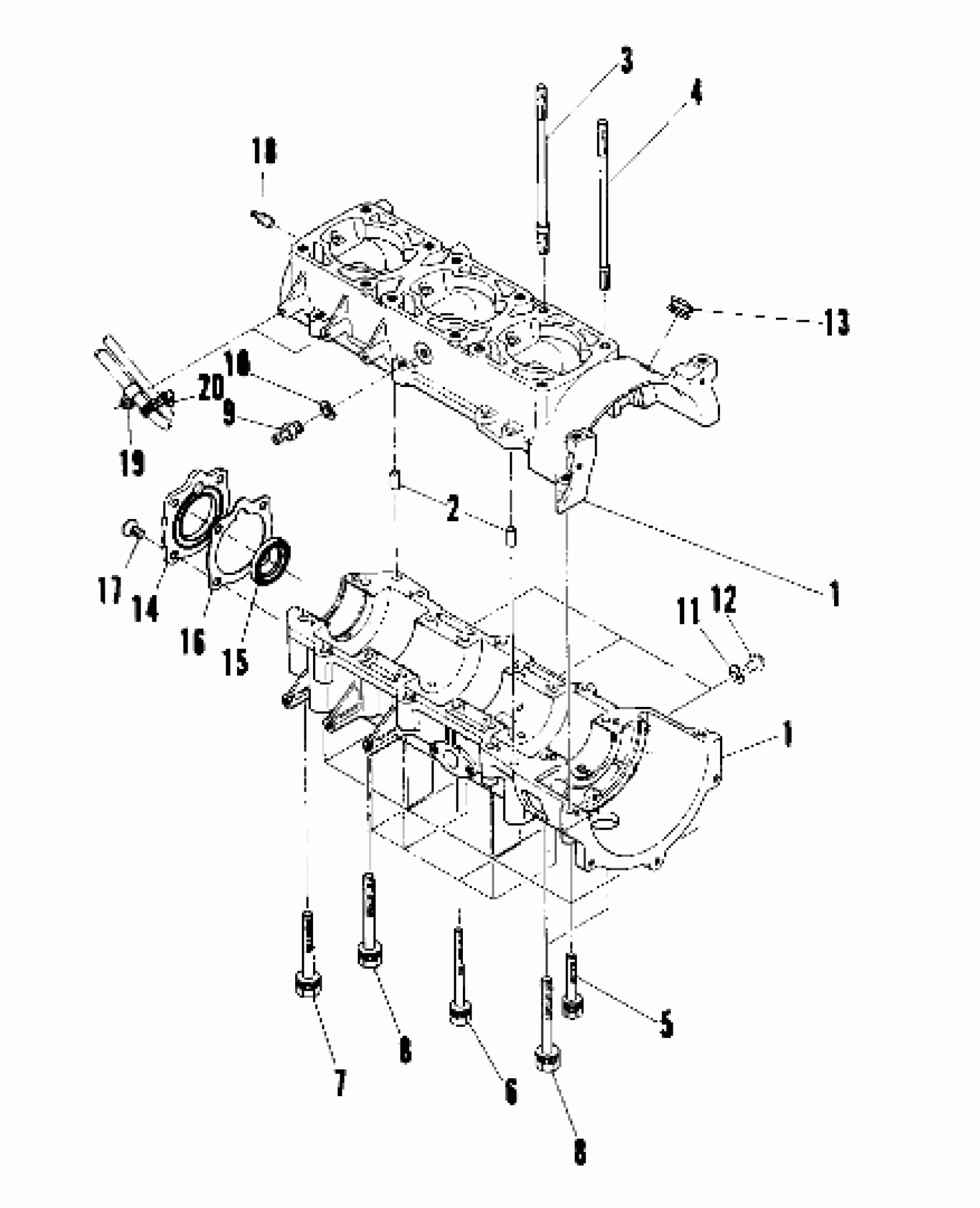

Polaris 400 - 0850759 Crankcase (600 and 600 SE) (4909500950029A) Diagram

CRANKCASE Substituted by 2200770 (Incl. 2, 5-8, 18)

CRANKCASE Substituted by 2200770 (Incl. 2, 5-8, 18)

PIN,DOWEL(10) Substituted by 3080103

STUD Substituted by 3083785

STUD

BOLT AND WASHER ASSY.

BOLT-WASHER

BOLT & WASHER

BOLT-WASHER

BOLT-WASHER

CONNECTOR

WASHER WAVE

WASHER,WAVE(10)

PLUG Substituted by 3084491

GROMMET

COVER, CRANKCASE

SEAL, OIL(10)

GASKET

SCREW, COUNTER SUNK

Pipe

CLAMP

Band, Wire
