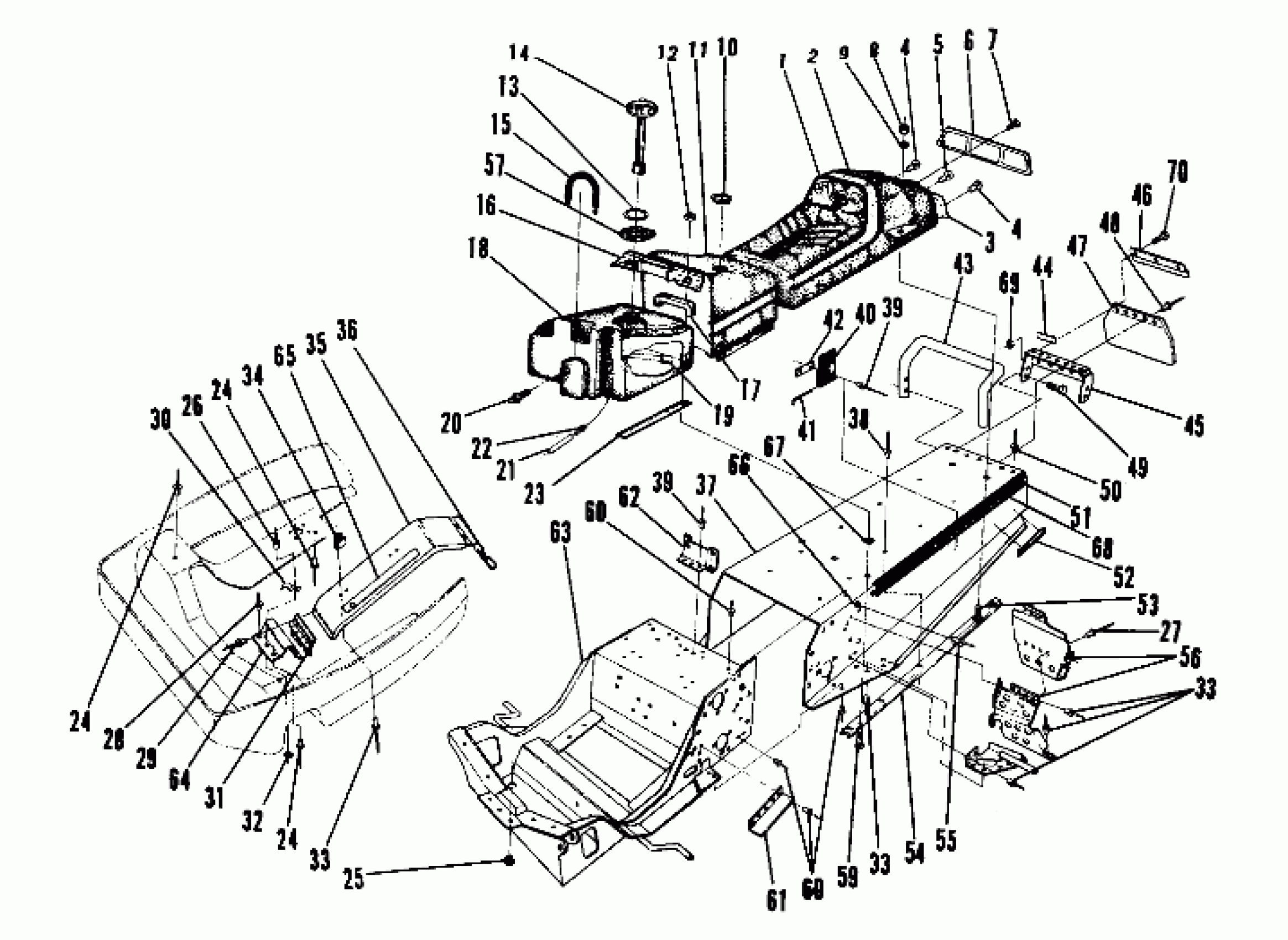

Polaris 400 - 0850759 Chassis and Seat (4909500950001A) Diagram
#
-
SEAT ASM. Substituted by 2200747 (Incl. 2-7) (600)
2681227
Unavailable
-
SEAT ASM. [No Longer Available] (Incl. 2-7) (400)
2681230
Unavailable
-
SEAT ASM. [No Longer Available] (Incl. 2-7) (600 SE)
2681236
Unavailable
1
SEAT ASM. Substituted by 2200748 (Incl. 2-7) (Trail)
2681224
Unavailable
2
COVER, SEAT [No Longer Available] (Trail)
2681225
Unavailable
2
COVER, SEAT [No Longer Available] (600)
2681228
Unavailable
2
COVER, SEAT [No Longer Available] (400)
2681231
Unavailable
2
COVER, SEAT Substituted by 2200738 (600 SE)
2681234
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB TAILLIGHT(10)
4030015
$4.03
4
BULB TAILLIGHT(10)
4030015
$4.03
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
GROMMET-GAS TANK
5430575
Unavailable
11
COVER, TANK [No Longer Available] (Trail)
2681226
Unavailable
11
COVER, TANK [No Longer Available] (600)
2681229
Unavailable
11
COVER, TANK [No Longer Available] (400)
2681232
Unavailable
11
COVER, TANK Substituted by 2200738 (600 SE)
2681235
Unavailable
13
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
14
GAUGE,GAS Substituted by 2511246
2511149
Unavailable
15
SPRING,TANK,(10)
7042020
$13.75
16
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
17
CUSHION,TANK H.D.
5420126
Unavailable
18
TANK,GAS (Incl. 19-22)
2511150
Unavailable
19
FUELPICKUP,W/STRAINER
7052037
$12.94
20
FITTING - OUTLET(10)
7052023
$24.99
21
KIT-TANK VENT
2200190
Unavailable
22
VENT-TANK
5430579
Unavailable
23
PAD-GAS TANK
5810063
$4.95
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
24
RIVET(50)
7621457
$1.49
25
PLUG
7080288
Unavailable
26
POP RIVET(50)
7621402
$1.49
27
RIVET(50)
7621431
$1.49
28
RIVET(50)
7621452
$1.49
29
RIVET, POP(50)
7621330
$1.49
30
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
31
HINGE
5210728
Unavailable
32
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
33
RIVET(50)
7621429
$1.49
34
Desc not available [No Longer Available] 35
5220320
Unavailable
34
CLIP, CHROME Substituted by 5222769 (600 SE)
5220451
Unavailable
35
GUARD, CLUTCH Substituted by 2251183 (Trail, 400, 600)
5223899
Unavailable
35
GUARD,CLUTCH,GOLD [No Longer Available] (600 SE)
5240103
Unavailable
36
PIN,RETAINING,(10)
7080216
$9.70
37
TUNNEL, TRAIL Substituted by 1011663 (Trail)
1011504
Unavailable
37
TUNNEL, (600) Substituted by 1011597 (400, 600, 600 SE)
1011505
Unavailable
38
RIVET Substituted by 7661638 (600, 600 SE)
7661625
$1.19
39
POP RIVET(50)
7621323
$1.49
39
POP RIVET(50) (TRAIL)
7621323
$1.49
39
POP RIVET(50)
7621323
$1.49
39
POP RIVET(50) (TRAIL)
7621323
$1.49
40
BELT,SEAT (Trail)
7080322
Unavailable
41
WIRE-SEAT-BELT (Trail)
5223864
Unavailable
42
PLATE-SEAT BELT (Trail)
5210842
Unavailable
43
BUMPER-REAR (Trail, 400, 600)
5224235
Unavailable
43
BUMPER,REAR,(SE) [No Longer Available] (600 SE)
5224242
Unavailable
44
DECAL, TRACK Substituted by 7072872
7072132
Unavailable
45
PANEL-TUNNEL BACK [No Longer Available]
5223916
Unavailable
46
CAP, SNOWFLAP(SE) [No Longer Available] (600 SE)
5220438
Unavailable
47
FLAP, SNOW,SILVER Substituted by 5410394-1106 (400)
5410394
$121.02
47
FLAP, SNOW, GOLD Substituted by 5410394 (Trail, 600)
5410392
$121.02
48
RIVET(50)
7621460
$1.49
49
SCREW(10)
7512252
Unavailable
50
POP RIVET(50)
7621425
$1.49
51
DECAL,TUNNEL [No Longer Available] (Trail)
7072126
Unavailable
51
DECAL,TUNNEL [No Longer Available] (600, 600 SE)
7072127
Unavailable
51
DECAL,TUNNEL [No Longer Available] (400)
7072128
Unavailable
52
REFLECTOR RED (Trail, 400, 600)
2670070
$9.91
52
REFLECTOR (600 SE)
2432030
Unavailable
53
BOLT(10)
7512103
$3.19
54
STRIP-WEAR (600, 600 SE)
5510130
Unavailable
55
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
56
FOOT REST,LH Substituted by 2251273
1011432
Unavailable
56
FOOTREST ASM,RH Substituted by 2200254
1011433
Unavailable
57
FOAM, FILLER
5810201
Unavailable
59
BOLT(10)
7512193
$2.39
61
GUARD
5223789
Unavailable
62
BRACKET Substituted by 5221932-067
5221932
Unavailable
63
BULKHEAD,(TRAIL) [No Longer Available] (Trail)
1011541
Unavailable
63
BULKHEAD, (400) Substituted by 1011613 (400)
1011542
Unavailable
63
BULKHEAD,(600+S/E) Substituted by 1011614 (600, 600 SE)
1011543
Unavailable
64
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
65
DECAL, WARNING [No Longer Available] (600 SE)
7072153
Unavailable
65
DECAL, WARNING [No Longer Available] (400)
7072086
Unavailable
65
Desc not available [No Longer Available] (Trail, 600)
7071854
Unavailable
66
SNAP-MALE(10)
7080227
Unavailable
67
SPEED NUT(10)
7670021
$6.99
68
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
69
NUT(10) (600 SE)
7541925
$1.49
70
SCREW,SKI COVER (SE),(10) [No Longer Available] (600 SE)
7510501
Unavailable
