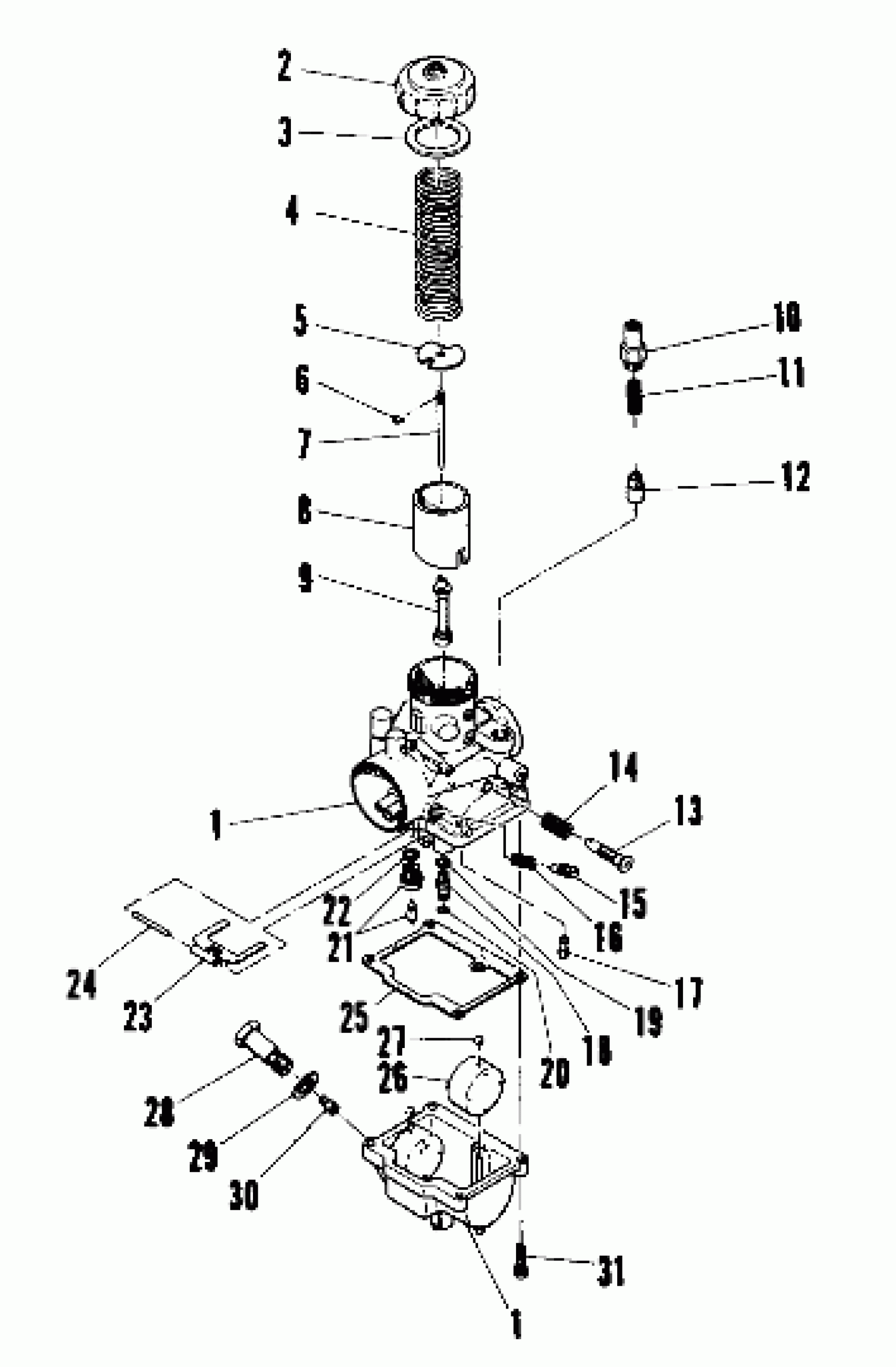

Polaris 400 - 0850759 Carburetor (Trail) (4909500950047A) Diagram
#
Description
Price
1
CARBURETOR (Incl. 2-31)
3130346
Unavailable
1
CARBURETOR (Incl. 2-31)
3130346
Unavailable
2
TOP ASM (Incl. 3)
3130184
$32.37
3
GASKET
-------
Unavailable
4
SPRING, THROTTLE
3130318
$20.22
5
PLATE
3130027
$9.70
6
E RING(10) Substituted by 3130508
3130003
Unavailable
7
JET NEEDLE Substituted by 3130329
3130158
Unavailable
8
THROTTLE VALVE 3.0 Substituted by 3130381
3130307
Unavailable
9
JET NEEDLE (P-6)
3130160
$36.41
10
HOLDER,GUIDE
3130199
$28.32
11
SPRING,PLUNGER
3130006
$8.89
12
PLUNGER ASM, STARTER
3130328
$32.37
13
SCREW,THROTTLE STOP
3130009
$19.99
14
SPRING,THROTTLE ADJ.
3130010
$8.89
15
SCREW,AIR
3130011
$19.99
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#35(10)
3130066
$8.89
18
SETTER,NEEDLE JET
3130030
Unavailable
19
WASHER (10)
3130014
$1.59
20
O RING
3130015
Unavailable
21
VALVE,NEEDLE Substituted by 3131146
3130016
$48.56
22
PACKING(10)
3130017
$4.03
23
ARM,FLOAT
3130018
$24.27
24
PIN, FLOAT Substituted by 3130235
3130240
$8.89
25
PACKING,FLOAT CHAMBER
3130020
$16.17
26
FLOAT ASM. Substituted by 3130430
3130032
Unavailable
27
CAP,(10) Substituted by 3130237
3130022
Unavailable
28
BOLT,BANJO Substituted by 3130210
3130023
Unavailable
29
WASHER
3130024
Unavailable
30
JET,MAIN,HX.HD#230(10)
3130126
$7.27
31
SCREW & WASHER(10)
3130025
$3.19
